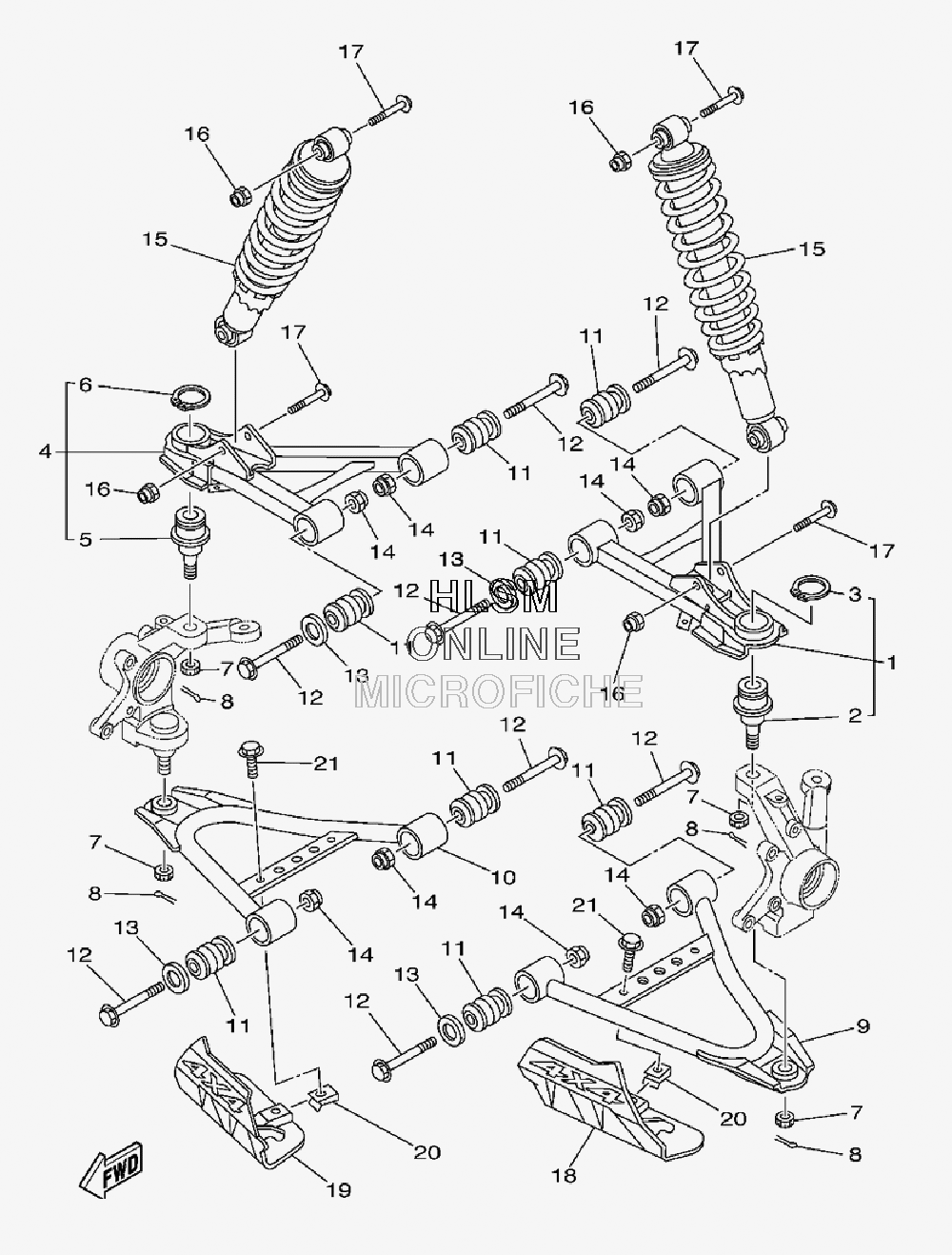

SUSPENSION - FRONT WHEEL для Yamaha GRIZZLY 350 IRS 4X4 - 2009 года выпуска
-
№АртикулНазвание
-
15ND-F3540-12-00 FRONT UPPER ARM COMP. (LEFT)FRONT UPPER ARM COMP. (LEFT)
-
25FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
393410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
45ND-F3550-12-00 FRONT UPPER ARM COMP. (RIGHT)FRONT UPPER ARM COMP. (RIGHT)
-
55FU-F3549-00-00 BALL JOINT 1BALL JOINT 1
-
693410-32826-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
790171-12001-00 NUT, CASTLENUT, CASTLE
-
891402-25020-00 PIN, COTTERPIN, COTTER
-
91D9-F357A-00-00 ARM, FRONT LOWER LEFT HAND.ARM, FRONT LOWER LEFT HAND.
-
101D9-F358A-00-00 ARM, FRONT LOWER RIGHT HAND.ARM, FRONT LOWER RIGHT HAND.
-
112HR-23526-00-00 BUSHBUSH
-
1290105-10267-00 BOLT, FLANGEBOLT, FLANGE
-
135KM-22149-10-00 WASHERWASHER
-
1490185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
155UH-F3350-01-00 SHOCK ABSORBER ASSYSHOCK ABSORBER ASSY
-
1690185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1790105-10841-00 BOLT, FLANGEBOLT, FLANGE
-
1817S-F3123-00-00 COVER, UNDER 1COVER, UNDER 1
-
1917S-F3133-00-00 COVER, LOWER 2COVER, LOWER 2
-
2090183-06053-00 NUT, SPRINGNUT, SPRING
-
2195802-06012-00 BOLT, FLANGEBOLT, FLANGE
