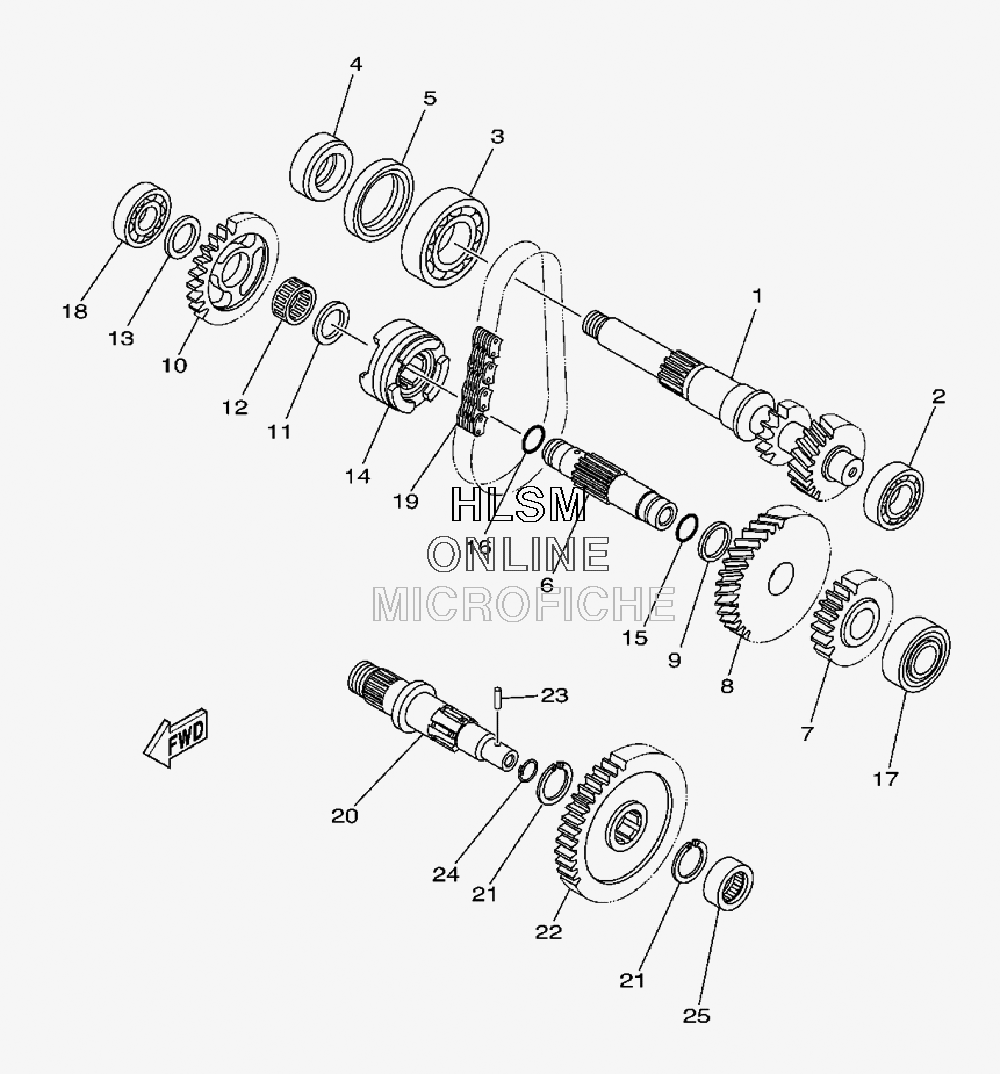

TRANSMISSION для Yamaha GRIZZLY 350 IRS 4X4 - 2009 года выпуска
-
№АртикулНазвание
-
15UH-17681-20-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
293306-00401-00 BEARINGBEARING
-
393306-20601-00 BEARINGBEARING
-
45UH-17168-00-00 COLLAR 2COLLAR 2
-
593102-42004-00 OIL SEALOIL SEAL
-
65UH-17421-10-00 AXLE, DRIVEAXLE, DRIVE
-
75UH-17582-11-00 GEAR, MIDDLE DRIVE (21T)GEAR, MIDDLE DRIVE (21T)
-
85UH-17223-10-00 GEAR, HIGH WHEEL (35T)GEAR, HIGH WHEEL (35T)
-
990201-21015-00 WASHER, PLATEWASHER, PLATE
-
105UH-17453-00-00 SPROCKET, DRIVEN (26T)SPROCKET, DRIVEN (26T)
-
1190201-20278-00 WASHER, PLATEWASHER, PLATE
-
1293310-420F2-00 BEARING, CYL.#10BEARING, CYL.#10
-
1390201-17013-00 WASHER, PLATEWASHER, PLATE
-
145UH-17285-00-00 CLUTCH, DOGCLUTCH, DOG
-
1593210-17003-00 O-RINGO-RING
-
1693210-14299-00 O-RINGO-RING
-
1793306-20464-00 BEARINGBEARING
-
1893306-20306-00 BEARINGBEARING
-
1994591-54034-00 CHAIN (23RIGHT HAND302-34ASM)CHAIN (23RIGHT HAND302-34ASM)
-
205UH-17523-00-00 SHAFTSHAFT
-
2193440-25084-00 CIRCLIPCIRCLIP
-
225UH-17583-01-00 GEAR, MIDDLE DRIVEN (41T)GEAR, MIDDLE DRIVEN (41T)
-
2393603-14240-00 PIN, DOWELPIN, DOWEL
-
2493440-14155-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
2593311-42077-00 BEARINGBEARING
