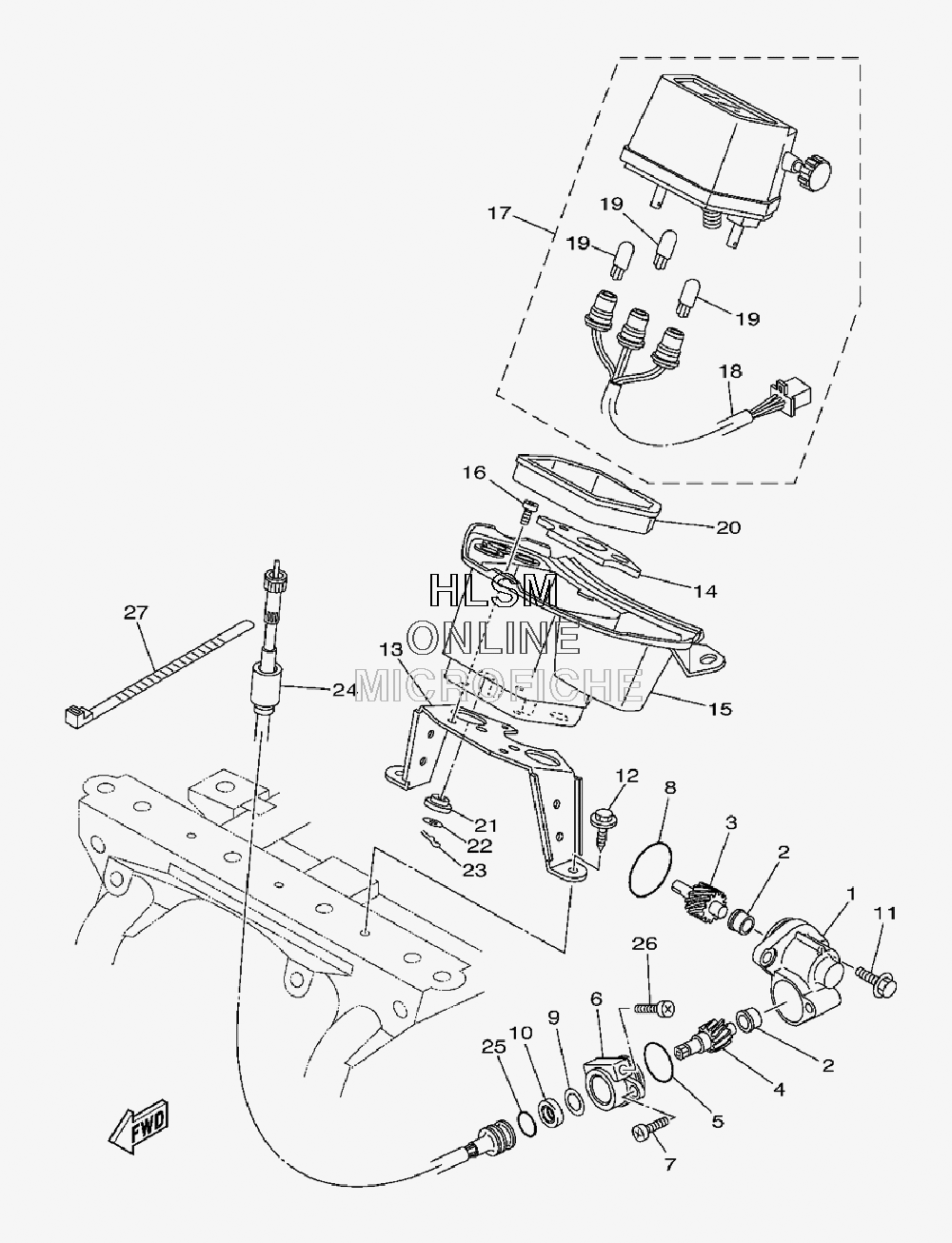

INSTRUMENT PANEL для Yamaha GRIZZLY 350 IRS 4X4 - 2009 года выпуска
-
№АртикулНазвание
-
14WV-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
290381-08002-00 BUSH, SOLIDBUSH, SOLID
-
34WV-17831-00-00 GEAR, DRIVEGEAR, DRIVE
-
44WV-17841-00-00 GEAR, DRIVENGEAR, DRIVEN
-
593210-24253-00 O-RINGO-RING
-
659V-17811-00-00 HOUSING, TACHOMETER GEARHOUSING, TACHOMETER GEAR
-
798502-06016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
893210-32172-00 O-RINGO-RING
-
990201-12163-00 WASHER, PLATEWASHER, PLATE
-
1093102-08307-00 OIL SEALOIL SEAL
-
1190105-06053-00 BOLT, FLANGEBOLT, FLANGE
-
1290119-06157-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
135UH-F834L-00-00 BRACKET, METERBRACKET, METER
-
144S1-H3513-00-00 DAMPERDAMPER
-
155UH-F837L-11-00 PANEL, CONSOLE 1PANEL, CONSOLE 1
-
1698502-05010-00 SCREW, PAN HEADSCREW, PAN HEAD
-
174S1-83570-00-00 SPEEDOMETER ASSYSPEEDOMETER ASSY
-
184S1-83536-00-00 SOCKET, METERSOCKET, METER
-
191YT-83517-00-00 BULB (12V-1.7W T10)BULB (12V-1.7W T10)
-
205UH-H252R-00-00 DAMPERDAMPER
-
211M1-83526-00-00 DAMPER 2DAMPER 2
-
224X8-83524-00-00 WASHER, SPECIALWASHER, SPECIAL
-
23437-83525-00-00 CLIPCLIP
-
245VH-H3550-00-00 SPEEDOMETER CABLE ASSYSPEEDOMETER CABLE ASSY
-
2593210-14104-00 O-RINGO-RING
-
2698502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2790464-31827-00 CLAMPCLAMP
