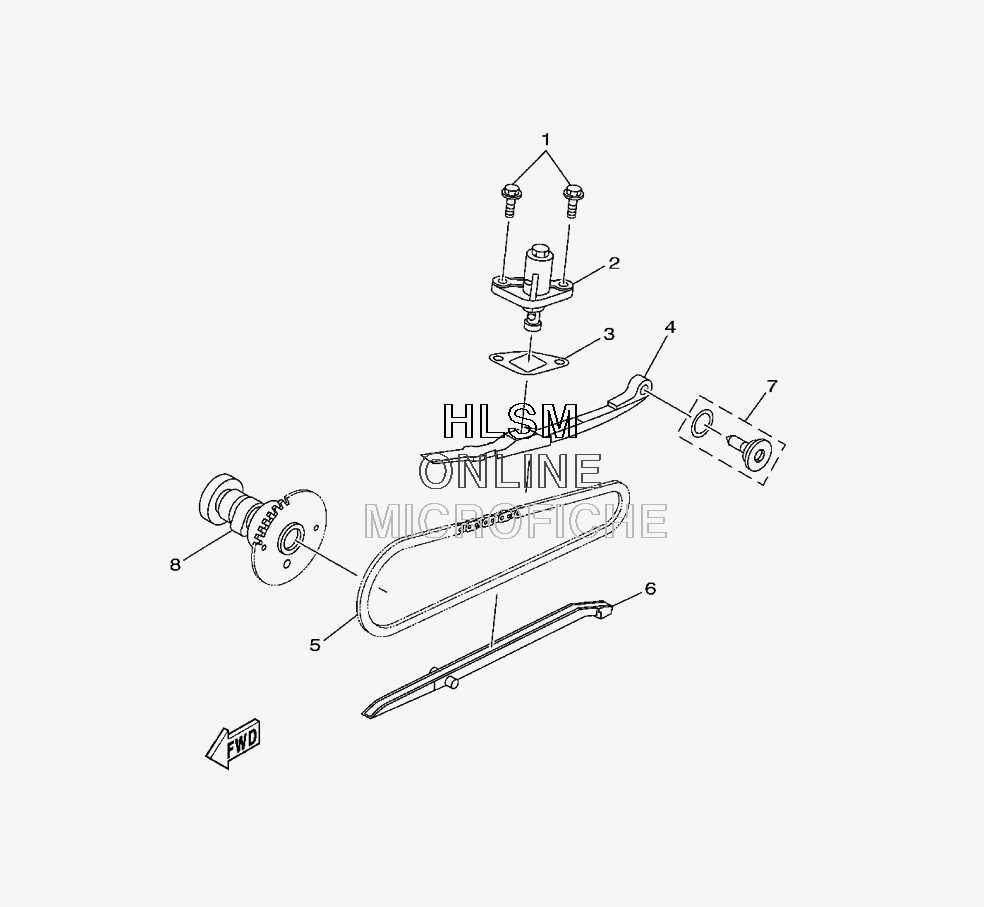

CAMSHAFT W/ CHAIN для Yamaha RAPTOR 90 - 2009 года выпуска
-
№АртикулНазвание
-
195022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
243D-E2210-00-00 TENSIONER ASSY, CAM CHAINTENSIONER ASSY, CAM CHAIN
-
343D-E2213-00-00 GASKET, TENSIONER CASEGASKET, TENSIONER CASE
-
443D-E2241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
543D-E2190-00-00 CHAIN ASSYCHAIN ASSY
-
643D-E2231-00-00 GUIDE, STOPPER 1GUIDE, STOPPER 1
-
743D-E22C0-00-00 BOLT SETBOLT SET
-
843D-E21K0-00-00 CAMSHAFT COMP.CAMSHAFT COMP.
