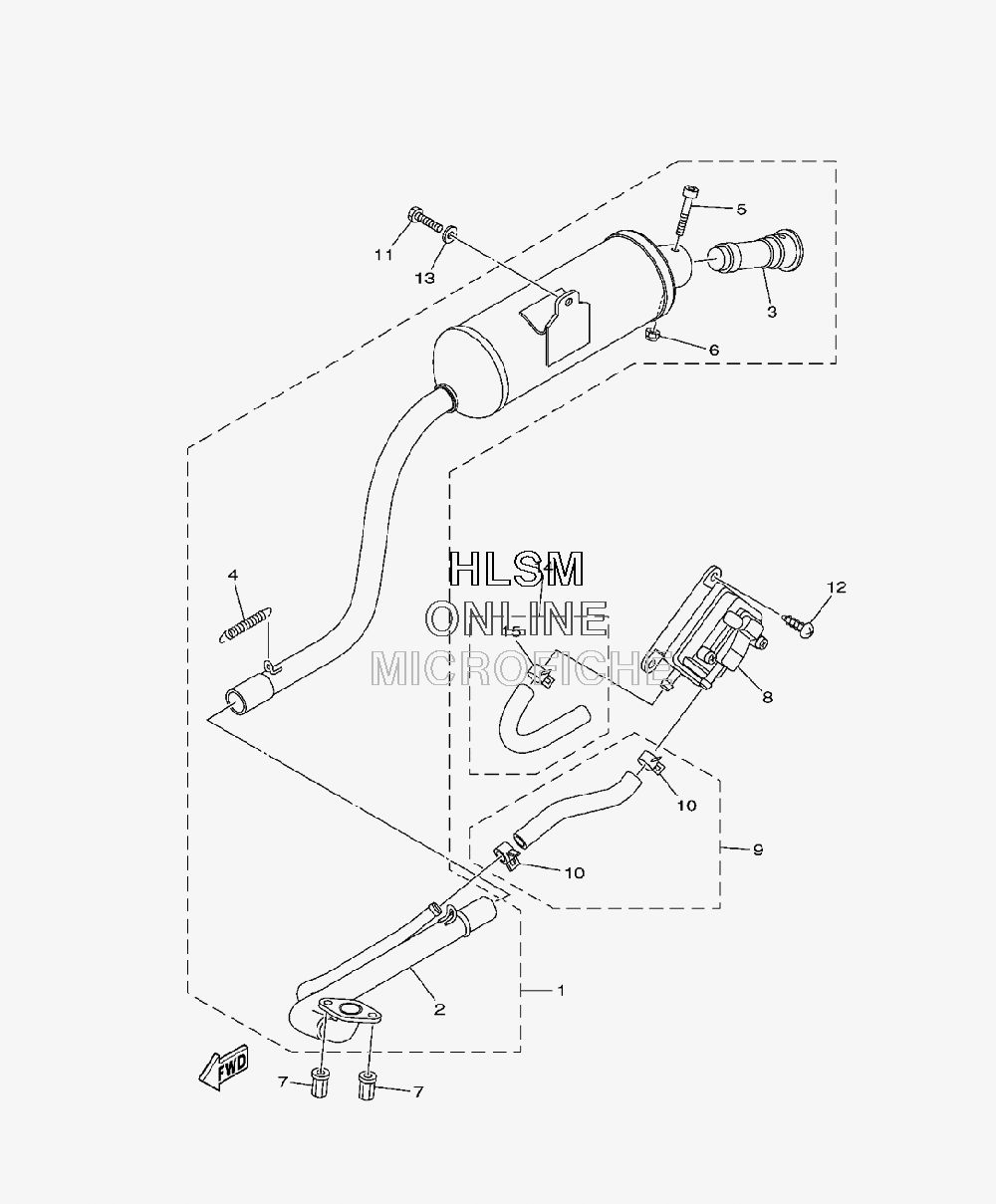

EXHAUST для Yamaha RAPTOR 90 - 2009 года выпуска
-
№АртикулНазвание
-
143D-E4610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
243D-E461A-00-00 BODY, PIPE 1-1BODY, PIPE 1-1
-
343D-E4752-00-00 PIPE, OUTLETPIPE, OUTLET
-
443D-E4773-00-00 SPRING, MUFFLERSPRING, MUFFLER
-
543D-E3574-00-00 BOLT 2BOLT 2
-
643D-E4595-00-00 NUTNUT
-
743D-E2671-00-00 NUT 1NUT 1
-
843D-E4803-00-00 AIR INDUCTION SYSTEM ASSYAIR INDUCTION SYSTEM ASSY
-
943D-E48D0-00-00 CONNECTING TUBE ASSYCONNECTING TUBE ASSY
-
1043D-E4919-00-00 CLIPCLIP
-
1143D-F2125-00-00 BOLTBOLT
-
1243D-E4565-00-00 SCREWSCREW
-
1343D-E2289-00-00 WASHERWASHER
-
1443D-E48A0-00-00 HOSE ASSYHOSE ASSY
-
1543D-E4919-00-00 CLIPCLIP
