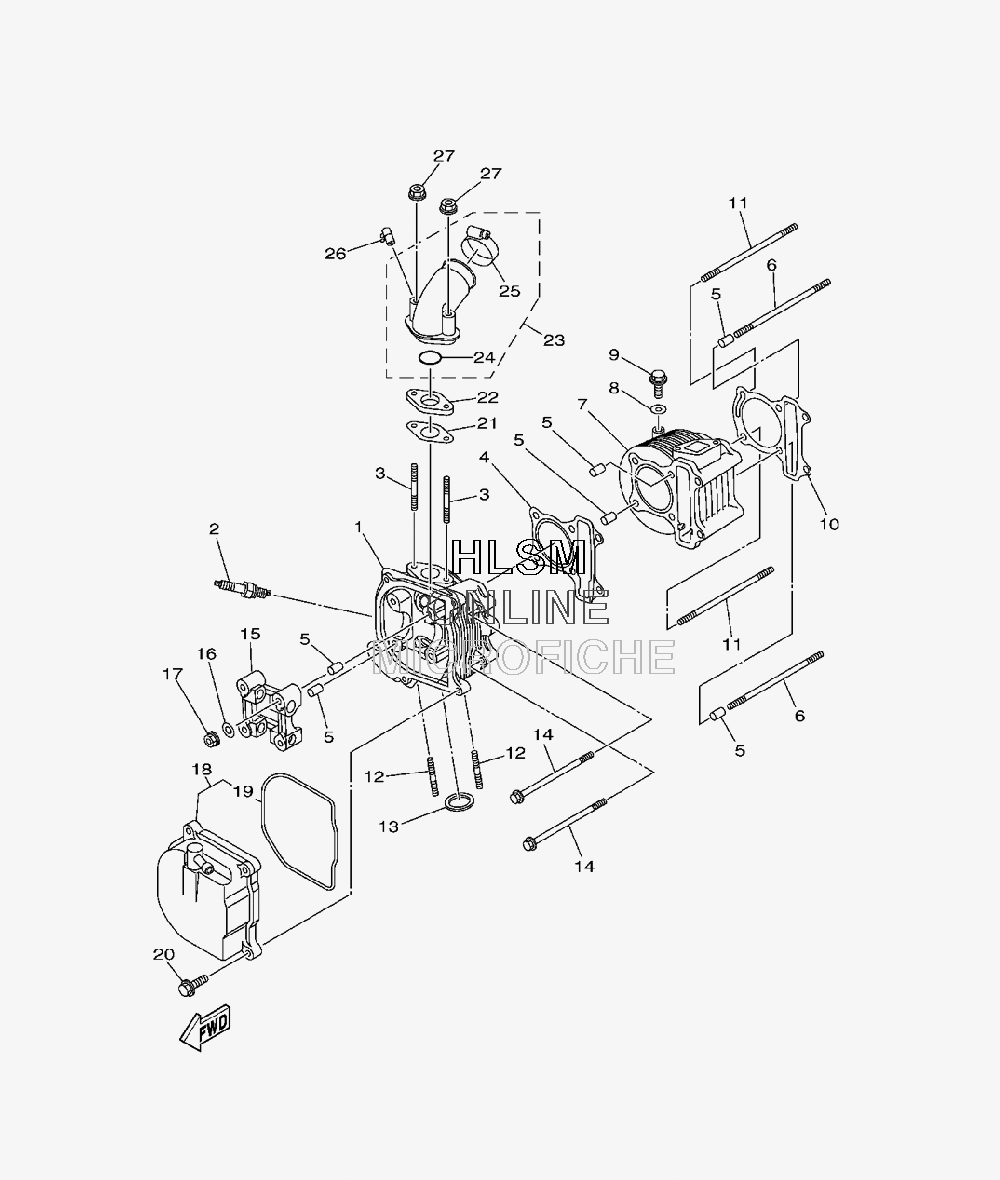

CYLINDER для Yamaha RAPTOR 90 - 2009 года выпуска
-
№АртикулНазвание
-
143D-E1102-00-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
2NGK-CR7HS-A0-00 PLUG, SPARK (NGK CR7HSA)PLUG, SPARK (NGK CR7HSA)
-
343D-E1179-00-00 BOLT, STUDBOLT, STUD
-
443D-E1181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
543D-E3516-00-00 PIN, DOWELPIN, DOWEL
-
643D-E1392-00-00 BOLT, STUD 2BOLT, STUD 2
-
743D-E1311-00-00 CYLINDER 1CYLINDER 1
-
843D-E3177-00-00 WASHERWASHER
-
995827-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1043D-E1351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1143D-E2174-00-00 BOLT, STUDBOLT, STUD
-
1243D-E1391-00-00 BOLT, STUD 1BOLT, STUD 1
-
1343D-E1195-00-00 GASKETGASKET
-
1495022-06100-00 BOLT, FLANGEBOLT, FLANGE
-
1543D-E2173-00-00 CAP, CAMSHAFT 1CAP, CAMSHAFT 1
-
1643D-E3318-00-00 WASHERWASHER
-
1743D-E4439-00-00 NUTNUT
-
1843D-E1190-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
1943D-E1182-00-00 GASKET, CYLINDER HEAD 2GASKET, CYLINDER HEAD 2
-
2095027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
2143D-E3556-00-00 GASKET, MANIFOLDGASKET, MANIFOLD
-
2243D-E4271-00-00 INSULATORINSULATOR
-
2343D-E3590-00-00 CARBURETOR JOINT ASSYCARBURETOR JOINT ASSY
-
2443D-E119B-00-00 O-RINGO-RING
-
2543D-E3575-00-00 BANDBAND
-
2643D-E3569-00-00 PLUG, BLINDPLUG, BLIND
-
2743D-E4358-00-00 NUTNUT
