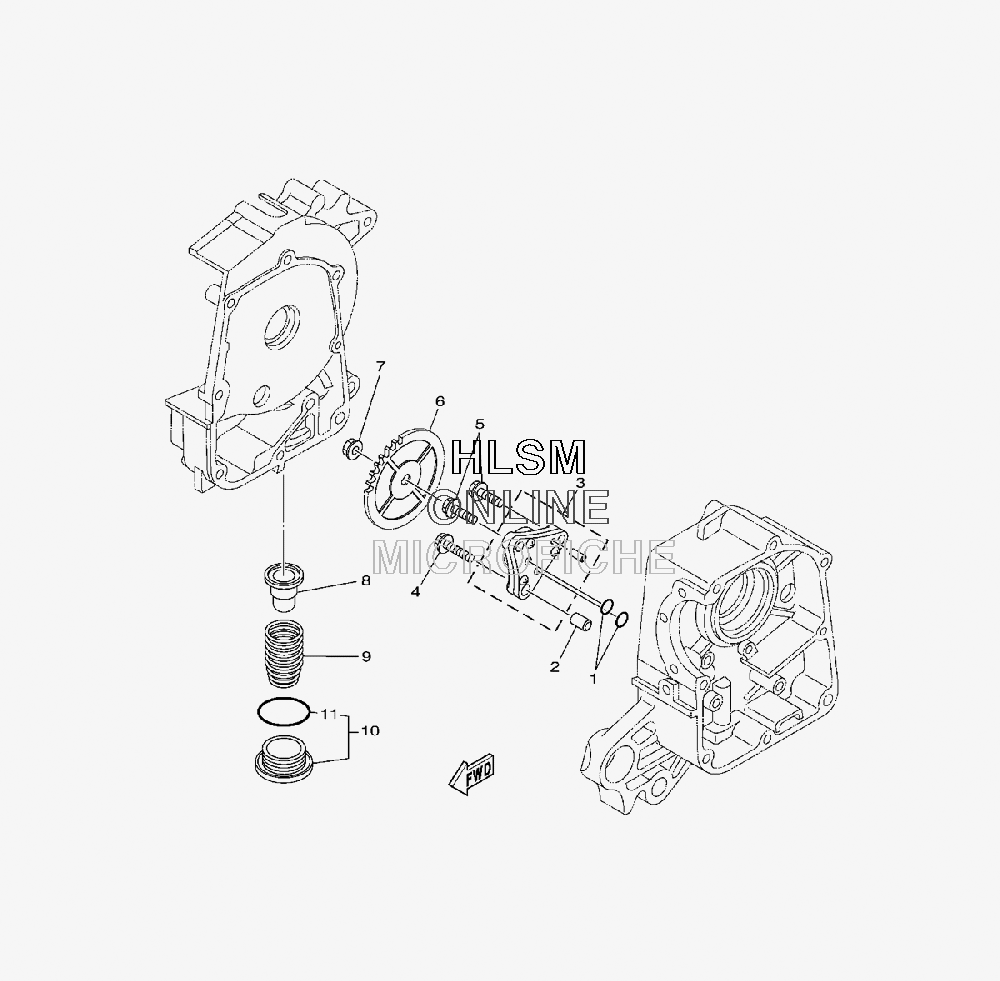

OIL PUMP для Yamaha RAPTOR 90 - 2009 года выпуска
-
№АртикулНазвание
-
143D-E119A-00-00 O-RINGO-RING
-
243D-E5181-00-00 PIN, DOWELPIN, DOWEL
-
343D-E3300-00-00 OIL PUMP ASSYOIL PUMP ASSY
-
495027-06020-00 BOLT, FLANGEBOLT, FLANGE
-
595022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
643D-E3325-00-00 GEAR, PUMP DRIVENGEAR, PUMP DRIVEN
-
743D-E4358-00-00 NUTNUT
-
843D-E3411-00-00 STRAINER, OILSTRAINER, OIL
-
943D-E3469-00-00 SPRINGSPRING
-
1043D-E5300-00-00 DRAIN PLUG SETDRAIN PLUG SET
-
1143D-E319C-00-00 O-RINGO-RING
