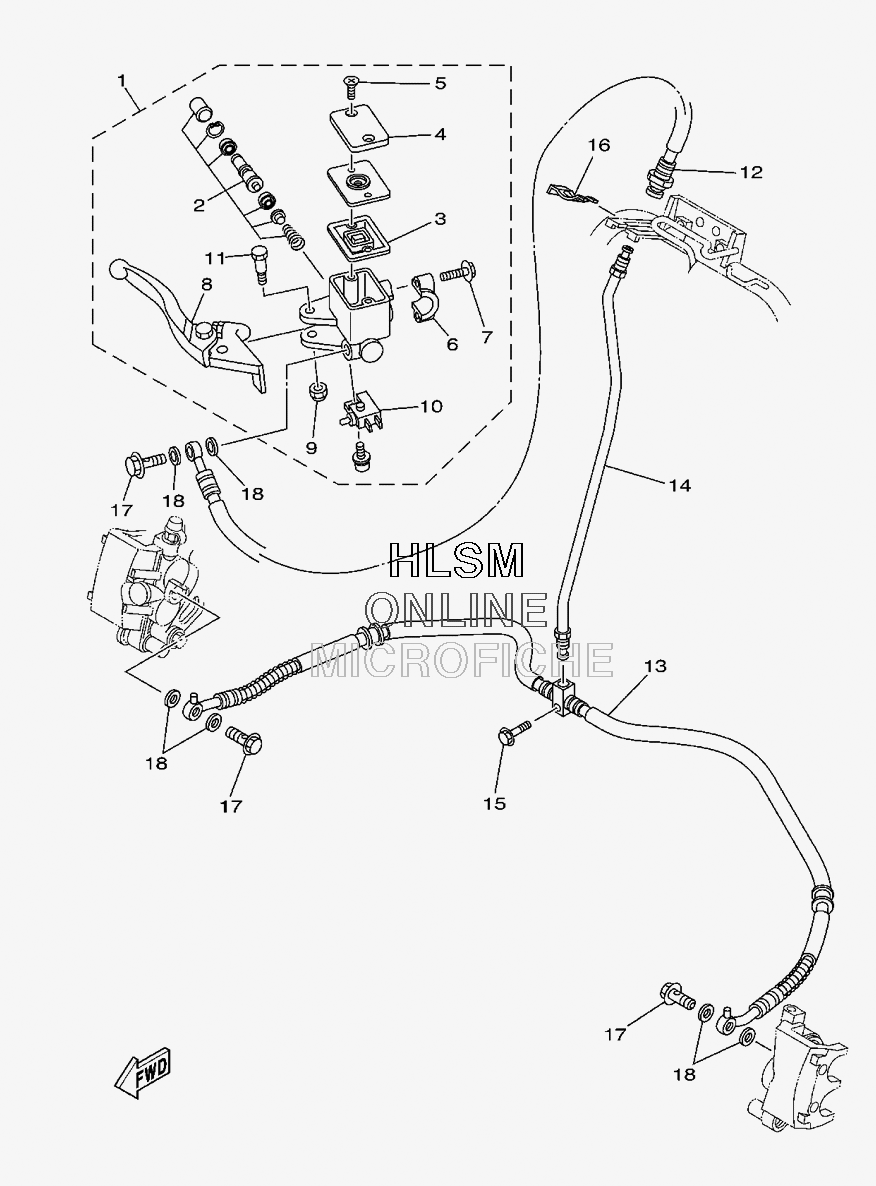

BRAKE - FRONT MASTER CYLINDER для Yamaha YFZ450 - 2009 года выпуска
-
№АртикулНазвание
-
15D3-2583T-00-00 MASTER CYLINDER ASSYMASTER CYLINDER ASSY
-
25D3-W0041-00-00 CYLINDER KIT, MASTERCYLINDER KIT, MASTER
-
34TT-25854-00-00 DIAPHRAGM, RESERVOIRDIAPHRAGM, RESERVOIR
-
45D3-25852-00-00 CAP, RESERVOIRCAP, RESERVOIR
-
54NK-2589H-00-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
65LP-25867-00-00 BRACKET, MASTER CYLINDERBRACKET, MASTER CYLINDER
-
75MV-25833-00-00 BOLT, FITTINGBOLT, FITTING
-
85D3-83922-00-00 LEVER 2LEVER 2
-
995604-06100-00 NUT, UNUT, U
-
105D3-83980-00-00 FRONT STOP SWITCH ASSYFRONT STOP SWITCH ASSY
-
115MV-2589F-00-00 BOLT, LEVERBOLT, LEVER
-
125TG-25872-10-00 HOSE, BRAKE 1HOSE, BRAKE 1
-
135TG-25873-10-00 HOSE, BRAKE 2HOSE, BRAKE 2
-
145TG-25871-10-00 PIPE, BRAKEPIPE, BRAKE
-
1595822-06025-00 BOLT, FLANGEBOLT, FLANGE
-
162GU-25866-00-00 CIRCLIPCIRCLIP
-
1790401-10015-00 BOLT, UNIONBOLT, UNION
-
1890201-10118-00 WASHER, PLATEWASHER, PLATE
