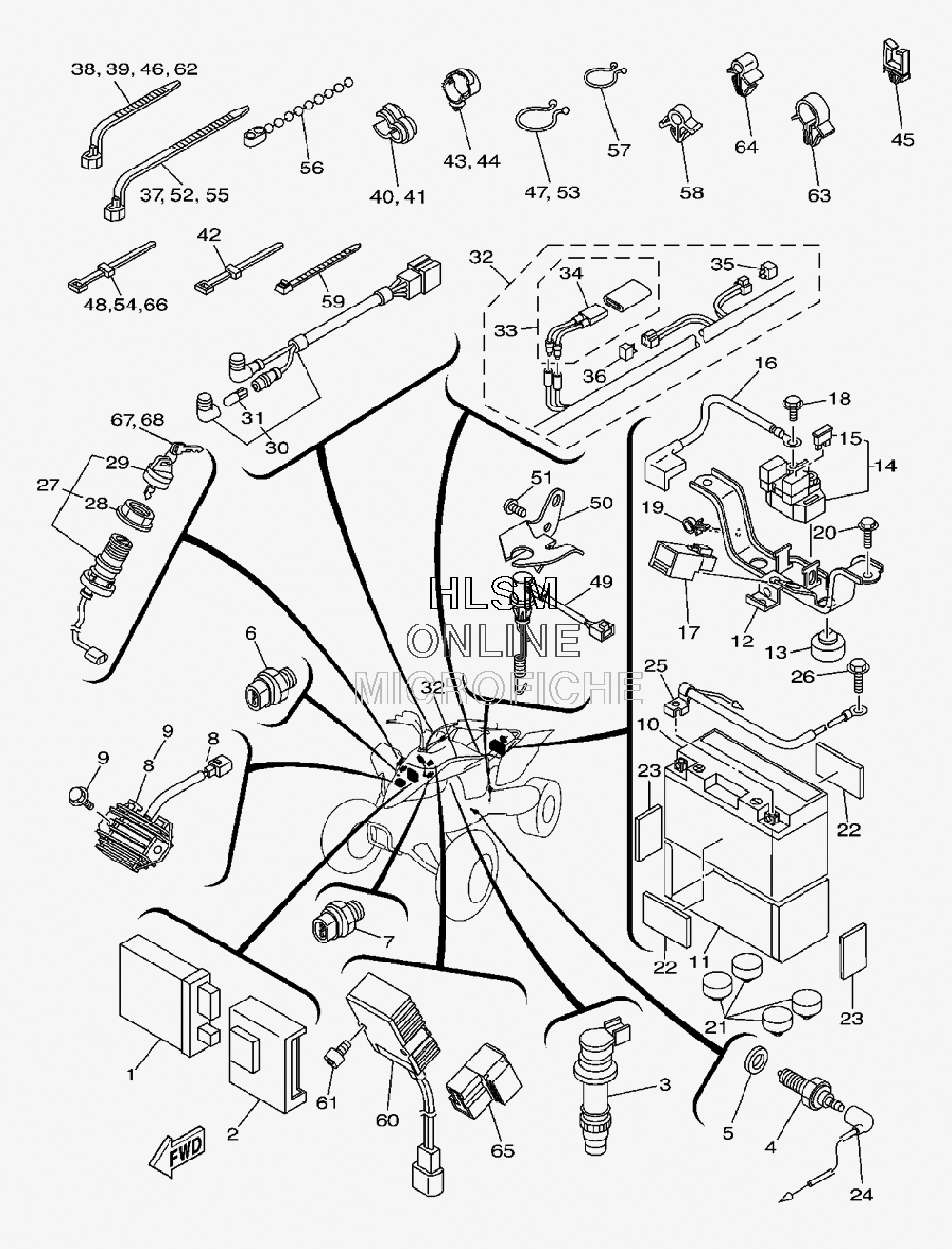

ELECTRICAL для Yamaha YFZ450 - 2009 года выпуска
-
№АртикулНазвание
-
15TG-85540-10-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
25TG-85546-00-00 BANDBAND
-
35TA-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
43GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
590430-10148-00 GASKETGASKET
-
65EB-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
75LP-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
85TG-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
995022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
104UC-82100-01-00 BATTERY (GS GT7B-4)BATTERY (GS GT7B-4)
-
115D3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
125TG-82128-10-00 BRACKET, BATTERYBRACKET, BATTERY
-
135TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
145JW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1536Y-82151-00-00 FUSE (15A-BL)FUSE (15A-BL)
-
165TG-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
171RL-81950-92-00 RELAY ASSYRELAY ASSY
-
1895022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1990464-15157-00 CLAMPCLAMP
-
2090105-06084-00 BOLT, FLANGEBOLT, FLANGE
-
215TG-82121-10-00 PAD, BATTERYPAD, BATTERY
-
225D3-82123-00-00 SEAT, BATTERYSEAT, BATTERY
-
2322F-2139X-00-00 DAMPERDAMPER
-
245TG-82541-00-00 WIRE, LEADWIRE, LEAD
-
255TG-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2695022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
275TG-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
283HN-82569-00-00 NUT, MAIN SWITCHNUT, MAIN SWITCH
-
293HN-82579-00-00 CAP, KEYCAP, KEY
-
305TG-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
315GH-83516-00-00 BULB (14V-1.7W)BULB (14V-1.7W)
-
325D3-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
335ND-82180-00-00 CIRCUIT BREAKER ASSYCIRCUIT BREAKER ASSY
-
345ND-82560-00-00 THERMO SWITCH ASSYTHERMO SWITCH ASSY
-
354WA-81980-00-00 DIODE ASSYDIODE ASSY
-
363WP-81980-00-00 RECTIFIER 2RECTIFIER 2
-
3790464-15195-00 CLAMPCLAMP
-
3890464-13073-00 CLAMPCLAMP
-
3990464-13073-00 CLAMPCLAMP
-
4090464-15065-00 CLAMPCLAMP
-
4190464-15065-00 CLAMPCLAMP
-
42437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4390464-20181-00 CLAMPCLAMP
-
4490464-20181-00 CLAMPCLAMP
-
4590464-20159-00 CLAMPCLAMP
-
4690464-13073-00 CLAMPCLAMP
-
4790464-30040-00 CLAMPCLAMP
-
483TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
495TG-82530-10-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
505TG-2144G-10-00 STAY, STOP SWITCHSTAY, STOP SWITCH
-
5198902-06012-00 SCREW, BINDSCREW, BIND
-
5290464-15195-00 CLAMPCLAMP
-
5390464-30040-00 CLAMPCLAMP
-
543TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
5590464-15195-00 CLAMPCLAMP
-
5690464-20031-00 CLAMPCLAMP
-
5790464-23041-00 CLAMPCLAMP
-
5890464-48174-00 CLAMPCLAMP
-
5990465-13M11-00 CLAMPCLAMP
-
605TG-85370-00-00 RESISTOR ASSYRESISTOR ASSY
-
6191312-05010-00 BOLTBOLT
-
6290464-13073-00 CLAMPCLAMP
-
6390464-15157-00 CLAMPCLAMP
-
6490464-48174-00 CLAMPCLAMP
-
655DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
663TB-83936-00-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
6790890-56001-00 KEY BLANK (A-TYPE)KEY BLANK (A-TYPE)
-
6890890-56002-00 KEY BLANK (B-TYPE)KEY BLANK (B-TYPE)
