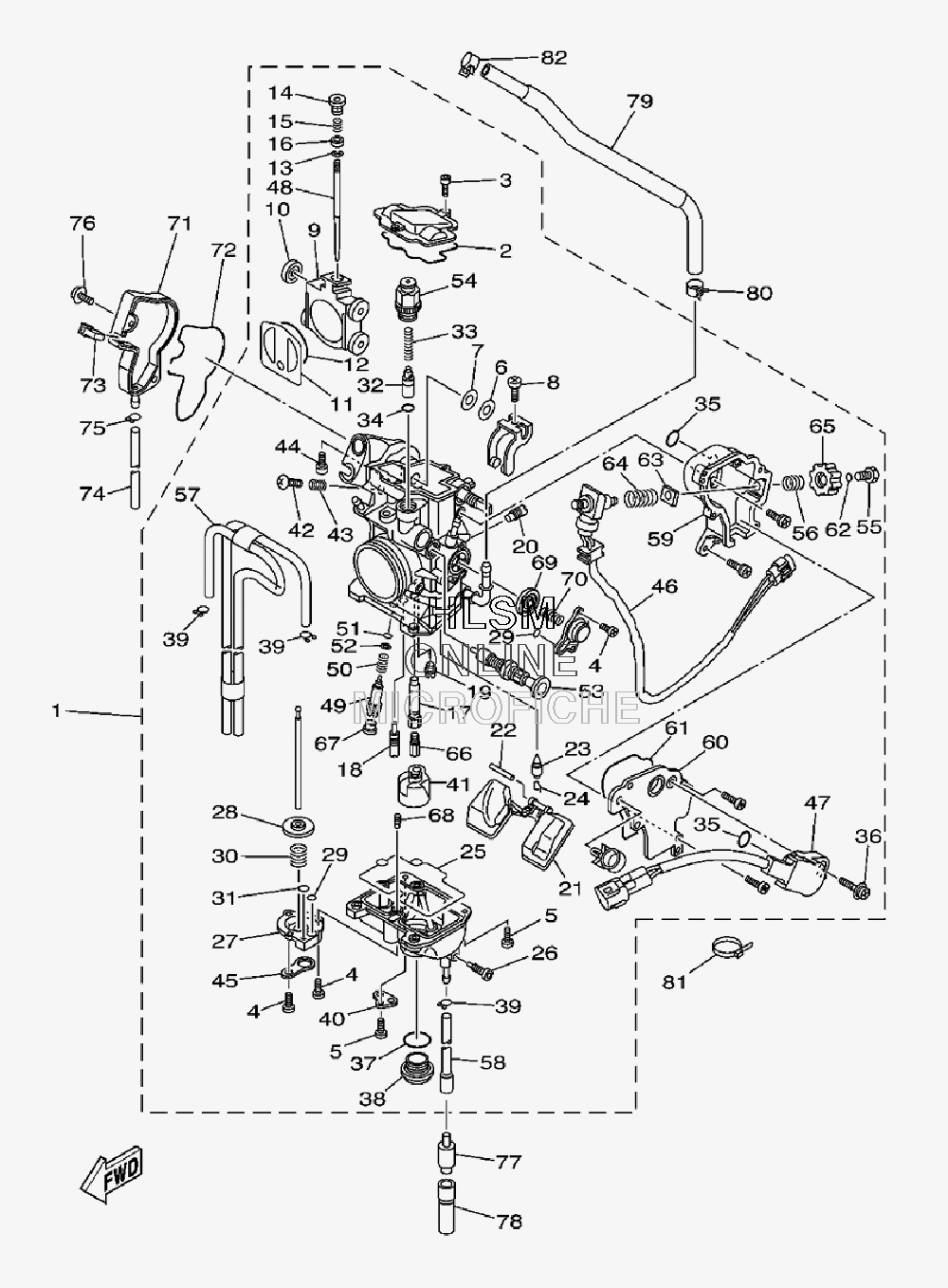

CARBURETOR для Yamaha YFZ450 - 2009 года выпуска
-
№АртикулНазвание
-
15TG-14101-31-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
25JG-14959-00-00 GASKETGASKET
-
391316-04012-00 BOLTBOLT
-
4688-14592-00-00 SCREW, PAN HEADSCREW, PAN HEAD
-
598502-04012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
690202-08045-00 WASHER, PLATEWASHER, PLATE
-
75JG-14951-00-00 WASHERWASHER
-
85JG-14522-00-00 SCREW, ADJUSTSCREW, ADJUST
-
95JG-14388-00-00 VALVE, VACUUM CONTROLVALVE, VACUUM CONTROL
-
103TJ-14267-40-00 ROLLERROLLER
-
115JG-14546-01-00 VALVE, NEEDLEVALVE, NEEDLE
-
124FN-14997-00-00 SEALSEAL
-
133TJ-14159-40-00 CLIPCLIP
-
145JG-14521-00-00 SCREW, ADJUSTSCREW, ADJUST
-
155JG-14275-00-00 SPRINGSPRING
-
165JG-14264-00-00 COLLARCOLLAR
-
175JG-14947-00-00 JET, NEEDLEJET, NEEDLE
-
184MX-14948-06-00 JET, SLOW (#48)JET, SLOW (#48)
-
193TJ-1494F-23-00 JET (#90)JET (#90)
-
205TA-14943-15-00 JET, MAIN (#70)JET, MAIN (#70)
-
214SR-14985-00-00 FLOATFLOAT
-
22676-14548-00-00 PIN, FLOAT ARMPIN, FLOAT ARM
-
234MX-14392-00-00 VALVE, NEEDLEVALVE, NEEDLE
-
24633-14159-00-00 CLIPCLIP
-
255JG-14984-00-00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
263TJ-14191-40-00 PLUG, DRAINPLUG, DRAIN
-
273TJ-14293-40-00 COVER 1COVER 1
-
285JG-14940-17-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
293TJ-14536-40-00 GASKETGASKET
-
303TJ-14933-40-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
316H4-14561-00-00 O-RINGO-RING
-
325TA-14371-00-00 PLUNGER, STARTERPLUNGER, STARTER
-
335TA-14335-00-00 SPRING, PLUNGERSPRING, PLUNGER
-
345TA-14997-00-00 SEALSEAL
-
355NX-14562-00-00 O-RINGO-RING
-
365NX-14216-00-00 SCREWSCREW
-
374MX-14561-00-00 O-RINGO-RING
-
384MX-14115-00-00 PLUG, SCREWPLUG, SCREW
-
393TJ-14137-40-00 CLIPCLIP
-
405BE-14146-00-00 PLATEPLATE
-
415JG-14346-00-00 PLATEPLATE
-
425JG-14565-00-00 SCREWSCREW
-
435JG-14531-00-00 SPRING, ADJUST SCREWSPRING, ADJUST SCREW
-
445JG-14591-00-00 SCREWSCREW
-
455PA-14146-00-00 PLATEPLATE
-
465TG-8259A-00-00 SWITCH, CARBURETORSWITCH, CARBURETOR
-
475TG-85885-00-00 THROTTLE SENSOR ASSYTHROTTLE SENSOR ASSY
-
485TG-14916-GR-00 NEEDLENEEDLE
-
493TJ-14923-40-00 SCREW, PILOTSCREW, PILOT
-
503TJ-14160-40-00 COIL, SPRINGCOIL, SPRING
-
513TJ-14562-40-00 O-RINGO-RING
-
523TJ-14952-40-00 WASHERWASHER
-
535TG-14171-00-00 PLUNGER, STARTERPLUNGER, STARTER
-
545TG-14225-00-00 CAPCAP
-
555TG-14591-00-00 SCREWSCREW
-
565TG-14935-00-00 SPRINGSPRING
-
575TG-14197-00-00 PIPEPIPE
-
585TG-14987-00-00 HOSEHOSE
-
595TG-14417-00-00 COVER 1COVER 1
-
605TG-14418-00-00 COVER 2COVER 2
-
615TG-14959-00-00 GASKETGASKET
-
625TG-14561-00-00 O-RINGO-RING
-
635TG-14255-00-00 PLATEPLATE
-
645TG-14335-00-00 SPRING, PLUNGERSPRING, PLUNGER
-
655TG-14261-00-00 HOLDERHOLDER
-
664MX-14943-38-00 JET, MAIN (#155)JET, MAIN (#155)
-
675TJ-14118-00-00 CAPCAP
-
684JT-1494F-03-00 JET (#40)JET (#40)
-
695GS-14940-00-00 DIAPHRAGM ASSYDIAPHRAGM ASSY
-
705GS-14933-00-00 SPRING, DIAPHRAGMSPRING, DIAPHRAGM
-
715TA-14293-00-00 COVER 1COVER 1
-
725TA-14227-00-00 GASKETGASKET
-
735TA-14239-00-00 SEALSEAL
-
745TA-14987-00-00 HOSEHOSE
-
753TJ-14137-40-00 CLIPCLIP
-
7690110-05038-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
7724W-14193-00-00 PIPEPIPE
-
7891A20-07004-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
795TG-24311-20-00 PIPE, FUEL 1PIPE, FUEL 1
-
8090467-120A5-00 CLIPCLIP
-
8190464-13133-00 CLAMPCLAMP
-
8290467-100A2-00 CLIPCLIP
