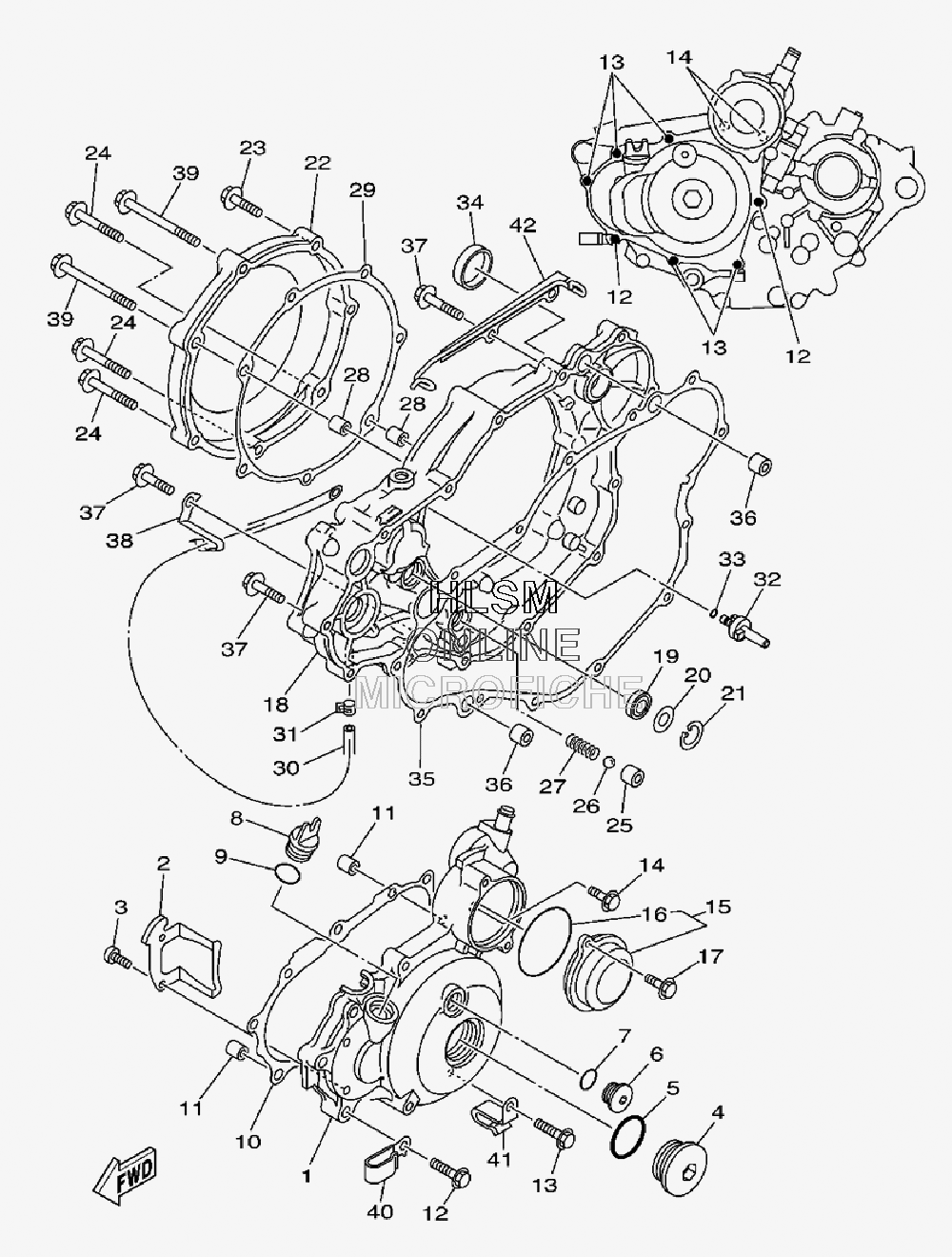

CRANKCASE COVER для Yamaha YFZ450 - 2009 года выпуска
-
№АртикулНазвание
-
15TG-15411-10-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
290465-10017-00 CLAMPCLAMP
-
391312-05012-00 BOLTBOLT
-
490340-27003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
593210-27370-00 O-RINGO-RING
-
690340-14003-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
793210-14369-00 O-RINGO-RING
-
83Y1-15363-00-00 PLUG, OILPLUG, OIL
-
993210-19123-00 O-RINGO-RING
-
105TG-15451-00-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
1199530-08016-00 PIN, DOWELPIN, DOWEL
-
1295022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
1395022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1495022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
155TG-1549B-10-00 COVER ASSY 2COVER ASSY 2
-
1693210-60426-00 O-RINGO-RING
-
1795022-06016-00 BOLT, FLANGEBOLT, FLANGE
-
185D3-15431-00-00 COVER, CRANKCASE 3COVER, CRANKCASE 3
-
1993101-14164-00 OIL SEALOIL SEAL
-
2090201-15701-00 WASHER, PLATE (T=1.0)WASHER, PLATE (T=1.0)
-
2199009-22500-00 CIRCLIPCIRCLIP
-
225TG-15415-00-00 COVER, GENERATORCOVER, GENERATOR
-
2395022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
2495022-06040-00 BOLT, FLANGEBOLT, FLANGE
-
25583-13113-00-00 SEAT, CHECK BALLSEAT, CHECK BALL
-
2693503-08007-00 BALLBALL
-
2790501-043E0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2899530-08016-00 PIN, DOWELPIN, DOWEL
-
295TA-15453-00-00 GASKETGASKET
-
3090445-07340-00 HOSE (L310)HOSE (L310)
-
3190467-070A0-00 CLIPCLIP
-
325D3-15155-00-00 NOZZLE 3NOZZLE 3
-
3393210-05098-00 O-RINGO-RING
-
3490338-30096-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
355TG-15462-02-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
3691812-16001-00 PIN, DOWELPIN, DOWEL
-
3795022-06030-00 BOLT, FLANGEBOLT, FLANGE
-
3890462-08049-00 CLAMPCLAMP
-
3995022-06080-00 BOLT, FLANGEBOLT, FLANGE
-
4090462-08044-00 CLAMPCLAMP
-
4190462-10034-00 CLAMPCLAMP
-
425TG-15484-10-00 CLAMP 2CLAMP 2
