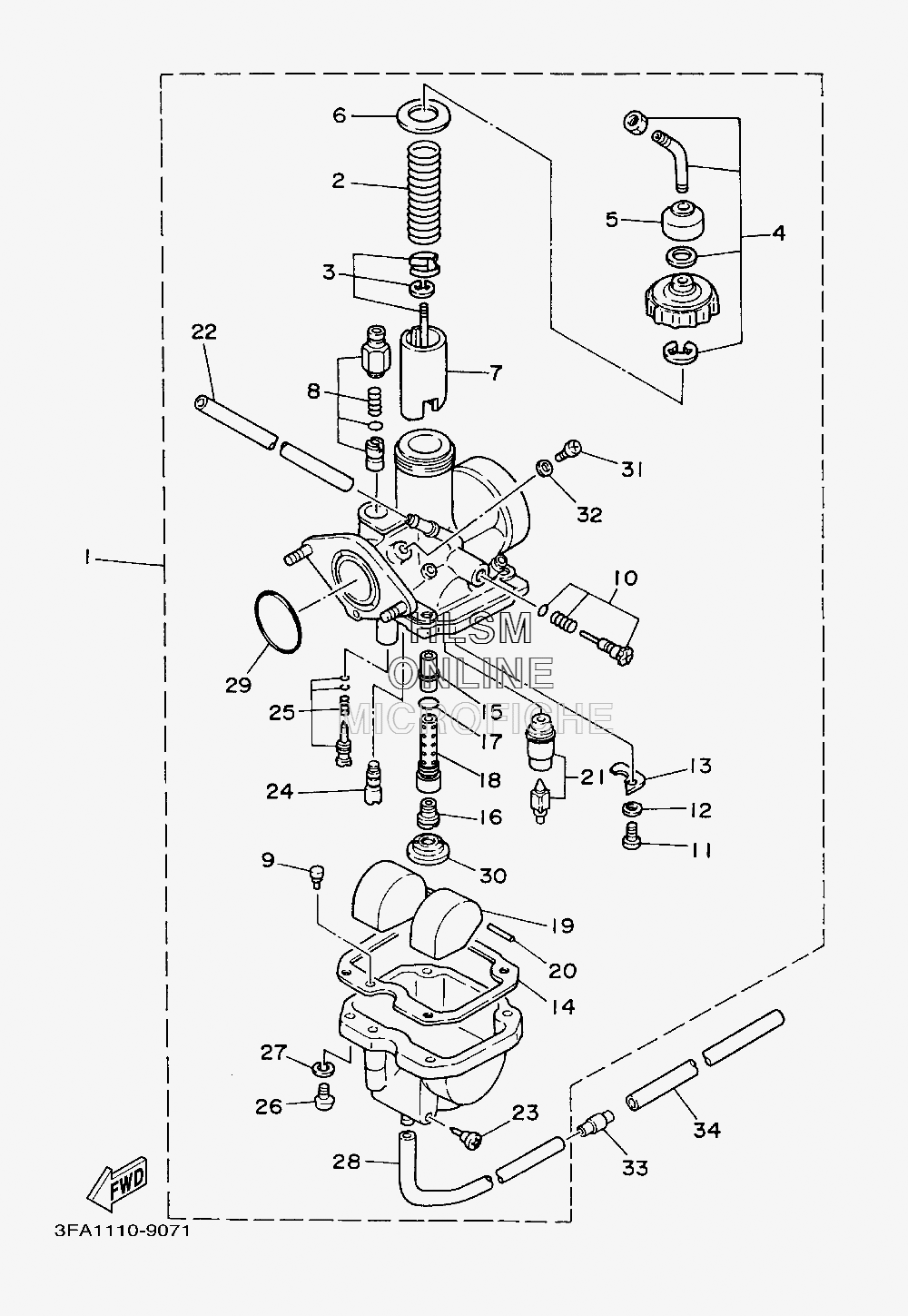

CARBURETOR для Yamaha GRIZZLY 125 - 2010 года выпуска
-
№АртикулНазвание
-
15VJ-14101-20-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
221V-14131-00-00 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
33FA-1490J-10-00 NEEDLE SETNEEDLE SET
-
410X-14106-00-00 CABLE ADJUST SCREW SETCABLE ADJUST SCREW SET
-
53X3-14169-00-00 CAPCAP
-
64U5-14126-00-00 GASKETGASKET
-
73FA-14112-25-00 VALVE, THROTTLE 1VALVE, THROTTLE 1
-
85VJ-1410A-00-00 STARTER SETSTARTER SET
-
918M-14144-09-00 JET, STARTERJET, STARTER
-
1018G-14103-00-00 THROTTLE SCREW SETTHROTTLE SCREW SET
-
1197802-03008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1292902-03100-00 WASHERWASHER
-
1321V-14146-00-00 PLATEPLATE
-
1424W-14184-00-00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
1521V-1414M-31-00 NOZZLE, MAINNOZZLE, MAIN
-
16620-1423A-66-00 JET, MAIN (#77.5)JET, MAIN (#77.5)
-
17583-14561-00-00 O-RINGO-RING
-
183FA-14148-00-00 PIPEPIPE
-
1921V-14185-00-00 FLOATFLOAT
-
20127-14186-00-00 PIN, FLOATPIN, FLOAT
-
215HH-14190-18-00 NEEDLE VALVE ASSYNEEDLE VALVE ASSY
-
223FA-14197-00-00 PIPEPIPE
-
2312R-14191-00-00 PLUG, DRAINPLUG, DRAIN
-
241NT-14142-12-00 JET, PILOT (# 12.5)JET, PILOT (# 12.5)
-
253KW-14105-00-00 PILOT SCREW SETPILOT SCREW SET
-
2698502-04014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2792902-04100-00 WASHER, SPRINGWASHER, SPRING
-
2829U-14197-00-00 PIPEPIPE
-
2924W-14147-00-00 O-RINGO-RING
-
305V7-14153-00-00 PLATE,BAFFLEPLATE,BAFFLE
-
3192502-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3259V-14962-00-00 WASHERWASHER
-
3324W-14193-00-00 PIPEPIPE
-
3491A20-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
