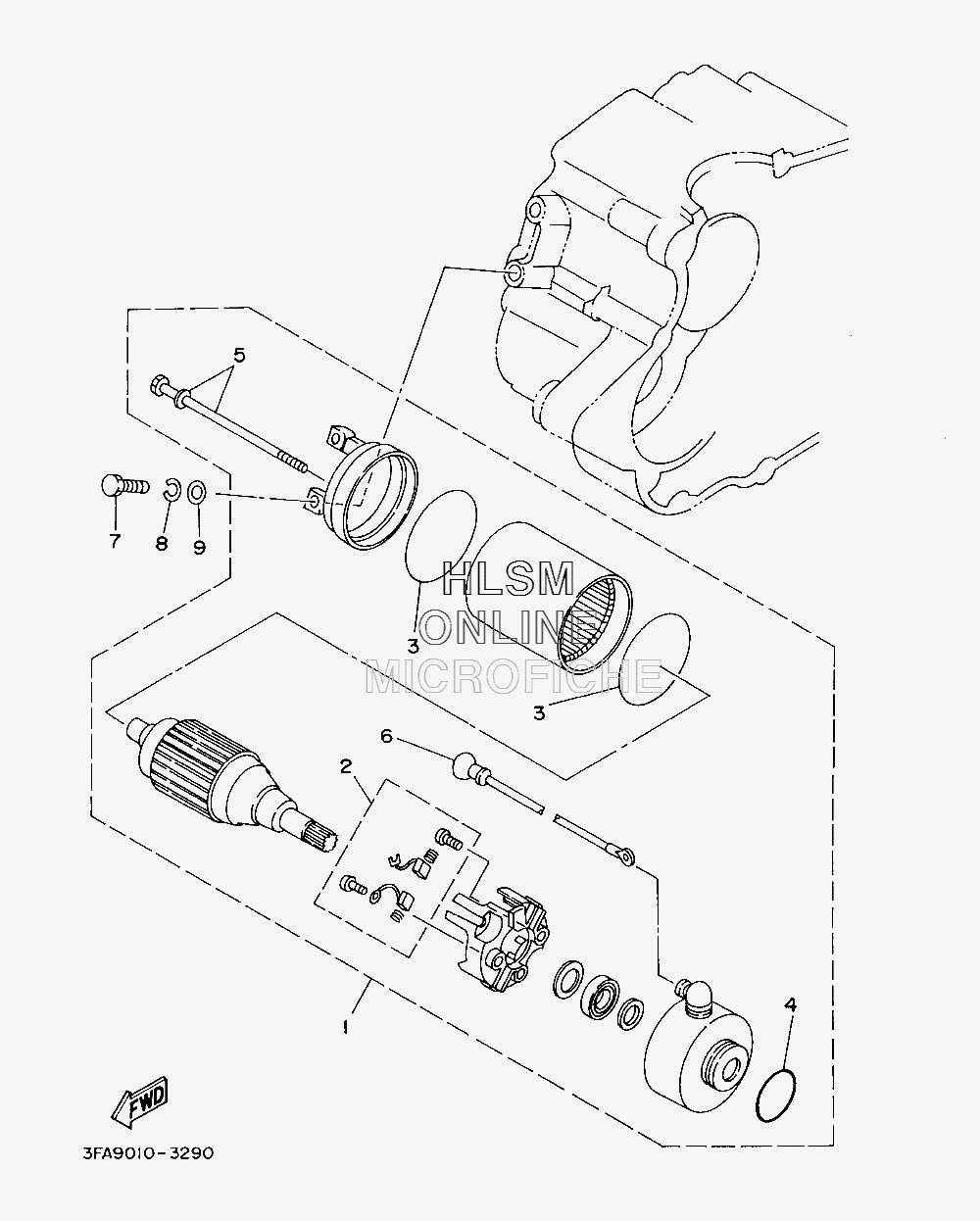

STARTING MOTOR для Yamaha GRIZZLY 125 - 2010 года выпуска
-
№АртикулНазвание
-
13FA-81890-00-00 STARTING MOTOR ASSYSTARTING MOTOR ASSY
-
250M-81801-M0-00 BRUSH SETBRUSH SET
-
393210-55669-00 O-RINGO-RING
-
493210-25711-00 O-RINGO-RING
-
53FA-81828-00-00 BOLT 2BOLT 2
-
63FA-8183G-00-00 CORD COMP.CORD COMP.
-
797002-06025-00 BOLTBOLT
-
892902-06100-00 WASHER, SPRINGWASHER, SPRING
-
992902-06600-00 WASHER, PLATEWASHER, PLATE
