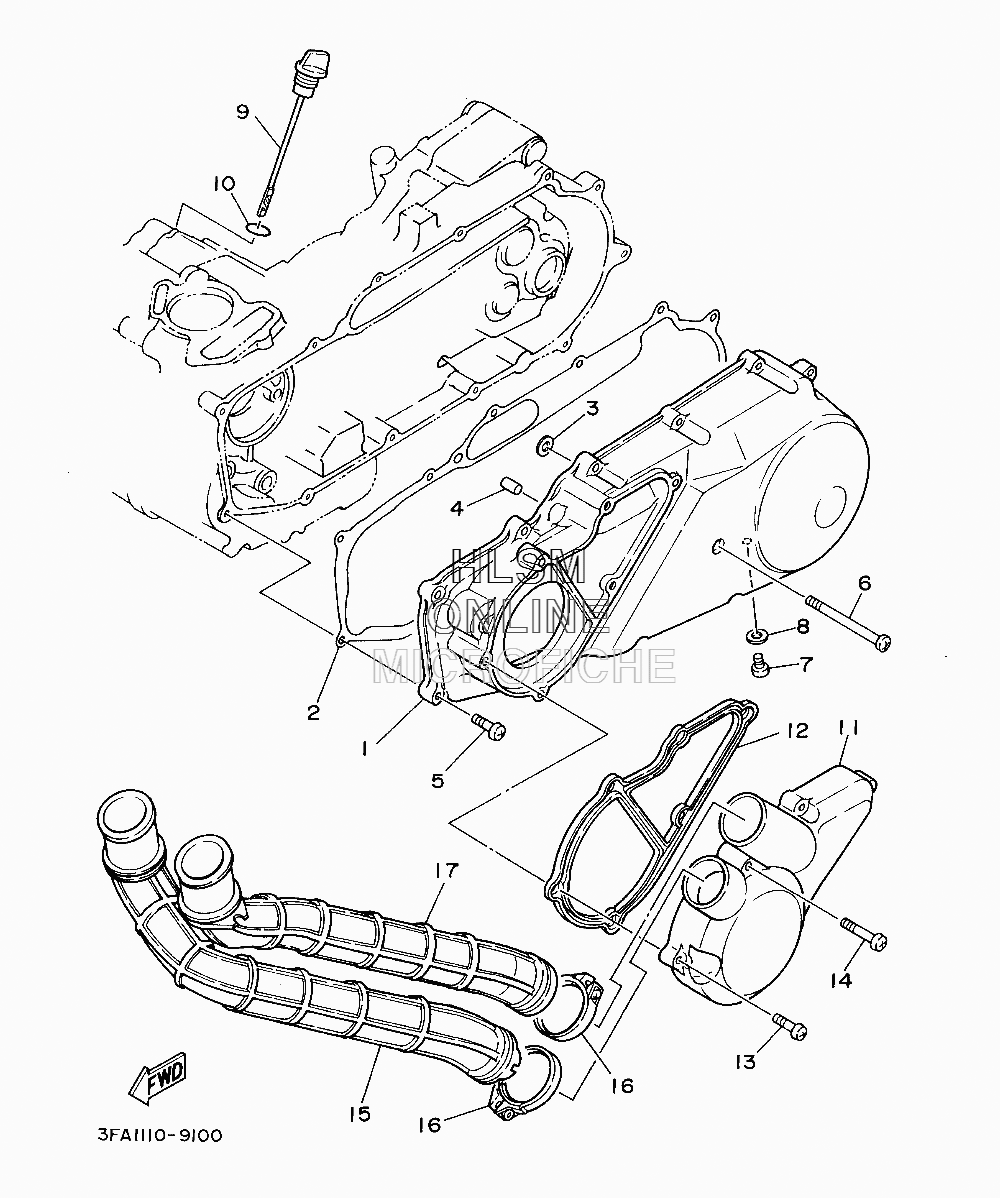

CRANKCASE COVER для Yamaha GRIZZLY 125 - 2010 года выпуска
-
№АртикулНазвание
-
13FA-15411-00-00 COVER, CRANKCASE 1COVER, CRANKCASE 1
-
23FA-15451-11-00 GASKET, CRANKCASE COVER 1GASKET, CRANKCASE COVER 1
-
33FA-15467-00-00 GASKETGASKET
-
499530-10114-00 PIN, DOWELPIN, DOWEL
-
598502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
698502-06090-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798502-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
890201-06630-00 WASHER, PLATEWASHER, PLATE
-
93FA-15362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
1093210-19123-00 O-RINGO-RING
-
113FA-15471-00-00 DUCT, AIRDUCT, AIR
-
123FA-15472-00-00 SEAL, AIR DUCTSEAL, AIR DUCT
-
1398502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1498502-06045-00 SCREW, PAN HEADSCREW, PAN HEAD
-
153FA-15475-00-00 DUCT, AIRDUCT, AIR
-
1690450-54008-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
173FA-15477-00-00 DUCT, AIRDUCT, AIR
