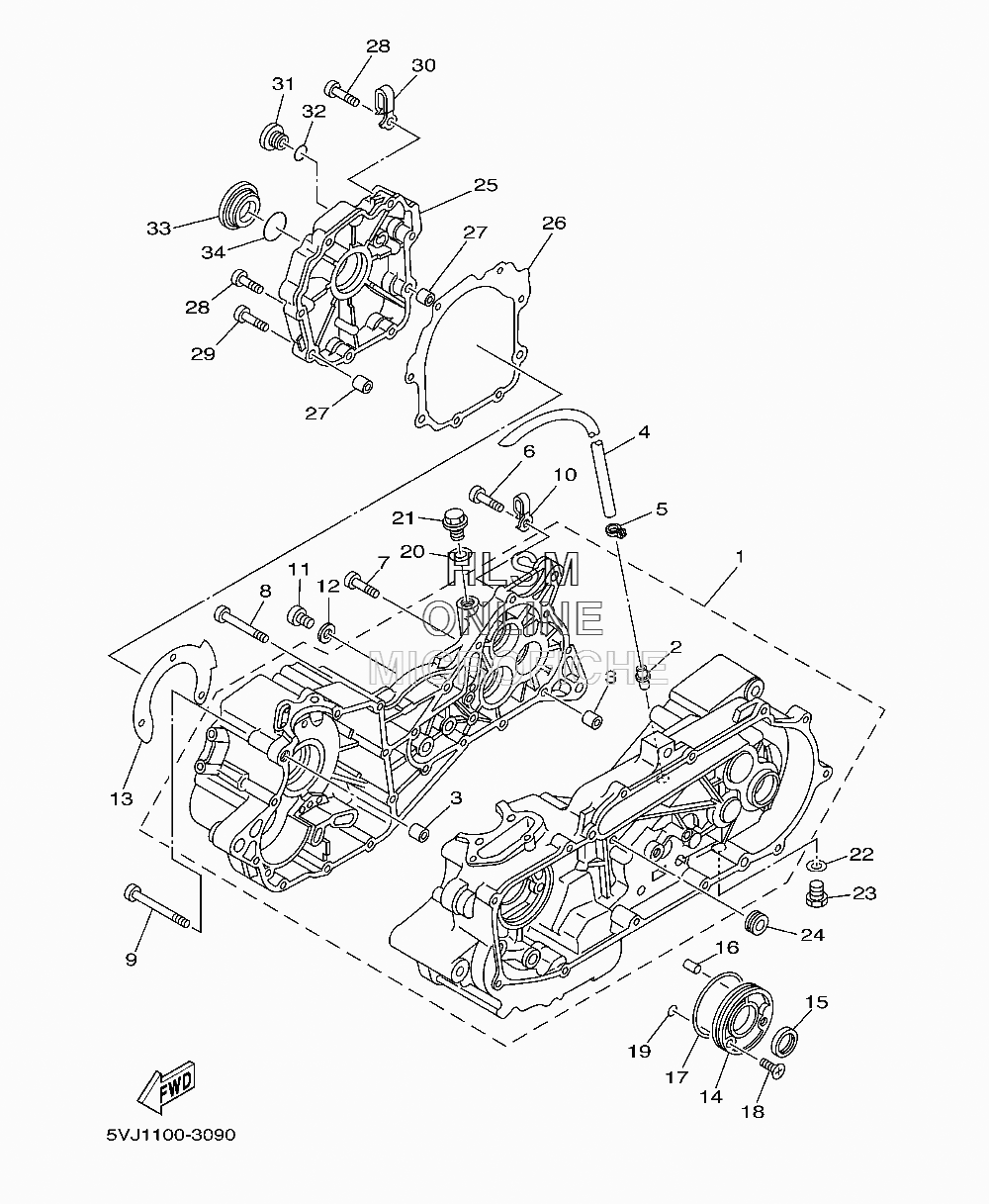

CRANKCASE для Yamaha GRIZZLY 125 - 2010 года выпуска
-
№АртикулНазвание
-
13FA-15100-00-00 CRANKCASE ASSYCRANKCASE ASSY
-
259V-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
399530-12016-00 PIN, DOWELPIN, DOWEL
-
490445-121F6-00 HOSE (L700)HOSE (L700)
-
590467-13064-00 CLIPCLIP
-
698502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
798502-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
898502-06060-00 SCREW, PAN HEADSCREW, PAN HEAD
-
998502-06070-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1090465-08127-00 CLAMPCLAMP
-
1198502-08012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1290201-08087-00 GASKETGASKET
-
133FA-15462-10-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1450M-15418-00-00 COVER, CHAIN CASECOVER, CHAIN CASE
-
1593102-22294-00 OIL SEALOIL SEAL
-
1693605-18078-00 PIN, DOWELPIN, DOWEL
-
1793210-704A7-00 O-RINGO-RING
-
1898702-06016-00 SCREW, FLAT HEADSCREW, FLAT HEAD
-
1993210-06564-00 O-RINGO-RING
-
20214-11198-01-00 GASKETGASKET
-
2190340-14132-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2290430-14043-00 GASKETGASKET
-
2390340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
2490480-13018-00 GROMMETGROMMET
-
253FA-15787-00-00 ADAPTORADAPTOR
-
263FA-15461-10-00 GASKET, CRANKCASE COVER 2GASKET, CRANKCASE COVER 2
-
2799530-10114-00 PIN, DOWELPIN, DOWEL
-
2898502-06030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2998502-06040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
3090465-08125-00 CLAMPCLAMP
-
3190340-14117-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
3293210-14369-00 O-RINGO-RING
-
3390340-36078-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
3493210-357A3-00 O-RINGO-RING
