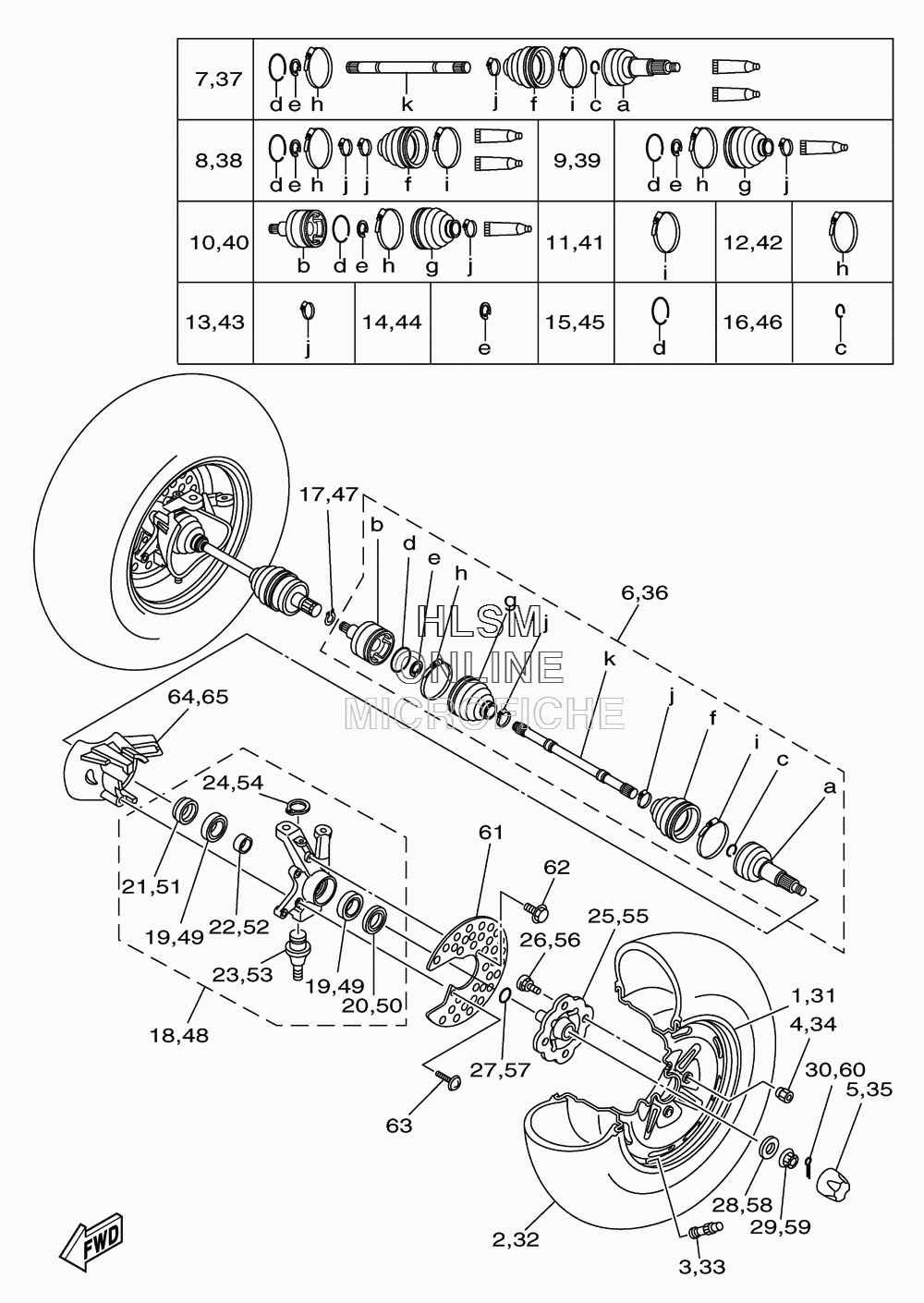

WHEEL - FRONT W/ AXLE ASSY для Yamaha GRIZZLY 350 4WD HUNTER - 2011 года выпуска
-
№АртикулНазвание
-
15ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
294108-12816-00 TIRE (AT25X8-12 MU13TL) CHENG SHINTIRE (AT25X8-12 MU13TL) CHENG SHIN
-
393900-00813-00 VALVE, RIMVALVE, RIM
-
490179-10022-00 NUTNUT
-
55GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
65UH-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
75UH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
85UH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
95UH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
105UH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
113HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
123HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
133HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
142HR-2512J-00-00 SNAP RINGSNAP RING
-
154KB-2512H-00-00 CIRCLIPCIRCLIP
-
162HR-2512H-00-00 CIRCLIPCIRCLIP
-
1793450-22119-00 CIRCLIPCIRCLIP
-
185ND-F3501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1993306-006Y2-00 BEARINGBEARING
-
2093106-38046-00 OIL SEALOIL SEAL
-
2193106-38047-00 OIL SEALOIL SEAL
-
2290560-30325-00 SPACERSPACER
-
2337S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
2499009-32400-00 CIRCLIP,S-TYPECIRCLIP,S-TYPE
-
255ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
2690114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
2793210-27666-00 O-RINGO-RING
-
2890201-16804-00 WASHER, PLATEWASHER, PLATE
-
2990171-16002-00 NUT, CASTLENUT, CASTLE
-
3091402-30030-00 PIN, COTTERPIN, COTTER
-
315ND-F5180-11-00 WHEEL COMP.WHEEL COMP.
-
3294108-12816-00 TIRE (AT25X8-12 MU13TL) CHENG SHINTIRE (AT25X8-12 MU13TL) CHENG SHIN
-
3393900-00813-00 VALVE, RIMVALVE, RIM
-
3490179-10022-00 NUTNUT
-
355GT-2512A-00-00 CAP, WHEELCAP, WHEEL
-
365UH-2518F-00-00 DRIVE SHAFT ASSYDRIVE SHAFT ASSY
-
375UH-2510F-00-00 BALL JOINT SETBALL JOINT SET
-
385UH-2510G-00-00 BOOT SET (BALL JOINT)BOOT SET (BALL JOINT)
-
395UH-2510H-00-00 BOOT SET (DOUBLE OFFSET JOINT)BOOT SET (DOUBLE OFFSET JOINT)
-
405UH-2510J-00-00 DOUBLE OFF SET JOINTDOUBLE OFF SET JOINT
-
413HN-2511G-01-00 BOOT BAND (BALL JOINT)BOOT BAND (BALL JOINT)
-
423HN-2511H-01-00 BOOT BAND (DOUBLE OFFSET JOINT)BOOT BAND (DOUBLE OFFSET JOINT)
-
433HN-2512G-01-00 BOOT BAND (SMALL)BOOT BAND (SMALL)
-
442HR-2512J-00-00 SNAP RINGSNAP RING
-
454KB-2512H-00-00 CIRCLIPCIRCLIP
-
462HR-2512H-00-00 CIRCLIPCIRCLIP
-
4793450-22119-00 CIRCLIPCIRCLIP
-
485ND-F3502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
4993306-006Y2-00 BEARINGBEARING
-
5093106-38046-00 OIL SEALOIL SEAL
-
5193106-38047-00 OIL SEALOIL SEAL
-
5290560-30325-00 SPACERSPACER
-
5337S-23549-00-00 BALL JOINT 1BALL JOINT 1
-
5499009-32400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
555ND-F5111-21-00 HUB, FRONTHUB, FRONT
-
5690114-10014-00 BOLT, SERRATIONBOLT, SERRATION
-
5793210-27666-00 O-RINGO-RING
-
5890201-16804-00 WASHER, PLATEWASHER, PLATE
-
5990171-16002-00 NUT, CASTLENUT, CASTLE
-
6091402-30030-00 PIN, COTTERPIN, COTTER
-
615ND-F514A-00-00 RING, WHEEL 1RING, WHEEL 1
-
6295822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
6390160-05007-00 SCREW, ROUND TAPPINGSCREW, ROUND TAPPING
-
644S2-F2327-01-00 MUD GUARD 1MUD GUARD 1
-
654S2-F2328-01-00 MUD GUARD 2MUD GUARD 2
