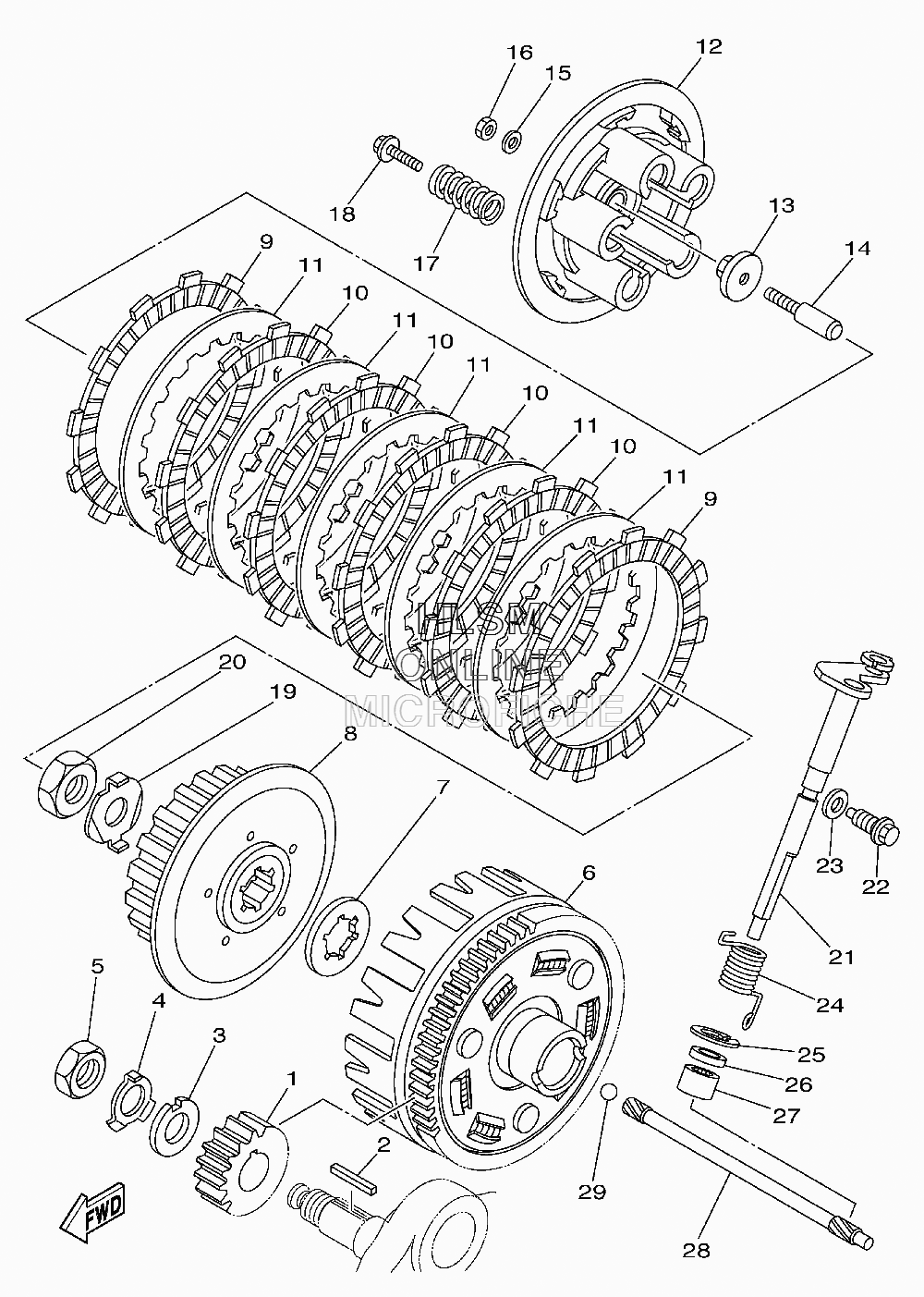

CLUTCH для Yamaha RAPTOR 250 - 2012 года выпуска
-
№АртикулНазвание
-
14D3-16111-00-00 GEAR, PRIMARY DRIVEGEAR, PRIMARY DRIVE
-
290282-05077-00 KEY, STRAIGHTKEY, STRAIGHT
-
390214-16063-00 WASHER, CLAWWASHER, CLAW
-
490215-16293-00 WASHER, LOCKWASHER, LOCK
-
590170-16003-00 NUTNUT
-
64D3-16150-00-00 PRIMARY DRIVEN GEAR COMP.PRIMARY DRIVEN GEAR COMP.
-
730X-16154-00-00 PLATE, THRUST 1PLATE, THRUST 1
-
84D3-16371-00-00 BOSS, CLUTCHBOSS, CLUTCH
-
93XJ-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
105DH-16321-00-00 PLATE, FRICTIONPLATE, FRICTION
-
113XJ-16324-01-00 PLATE, CLUTCH 1PLATE, CLUTCH 1
-
124GY-16351-00-00 PLATE, PRESSURE 1PLATE, PRESSURE 1
-
131W1-16358-01-00 PLATE, PUSHPLATE, PUSH
-
145XT-16356-00-00 ROD, PUSH 1ROD, PUSH 1
-
1592902-06200-00 WASHERWASHER
-
1695302-06600-00 NUTNUT
-
1790501-230A4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1890159-06029-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1990215-16289-00 WASHER, LOCKWASHER, LOCK
-
2090170-16326-00 NUTNUT
-
214D3-16381-00-00 PUSH LEVER COMP.PUSH LEVER COMP.
-
2290109-08105-00 BOLTBOLT
-
2390430-08119-00 GASKETGASKET
-
2490508-203B3-00 SPRING, TORSIONSPRING, TORSION
-
2599009-20500-00 CIRCLIPCIRCLIP
-
2693102-12224-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
2793317-11287-00 BEARINGBEARING
-
284GY-16357-00-00 ROD, PUSH 2ROD, PUSH 2
-
2993511-32017-00 BALL 11/32BALL 11/32
