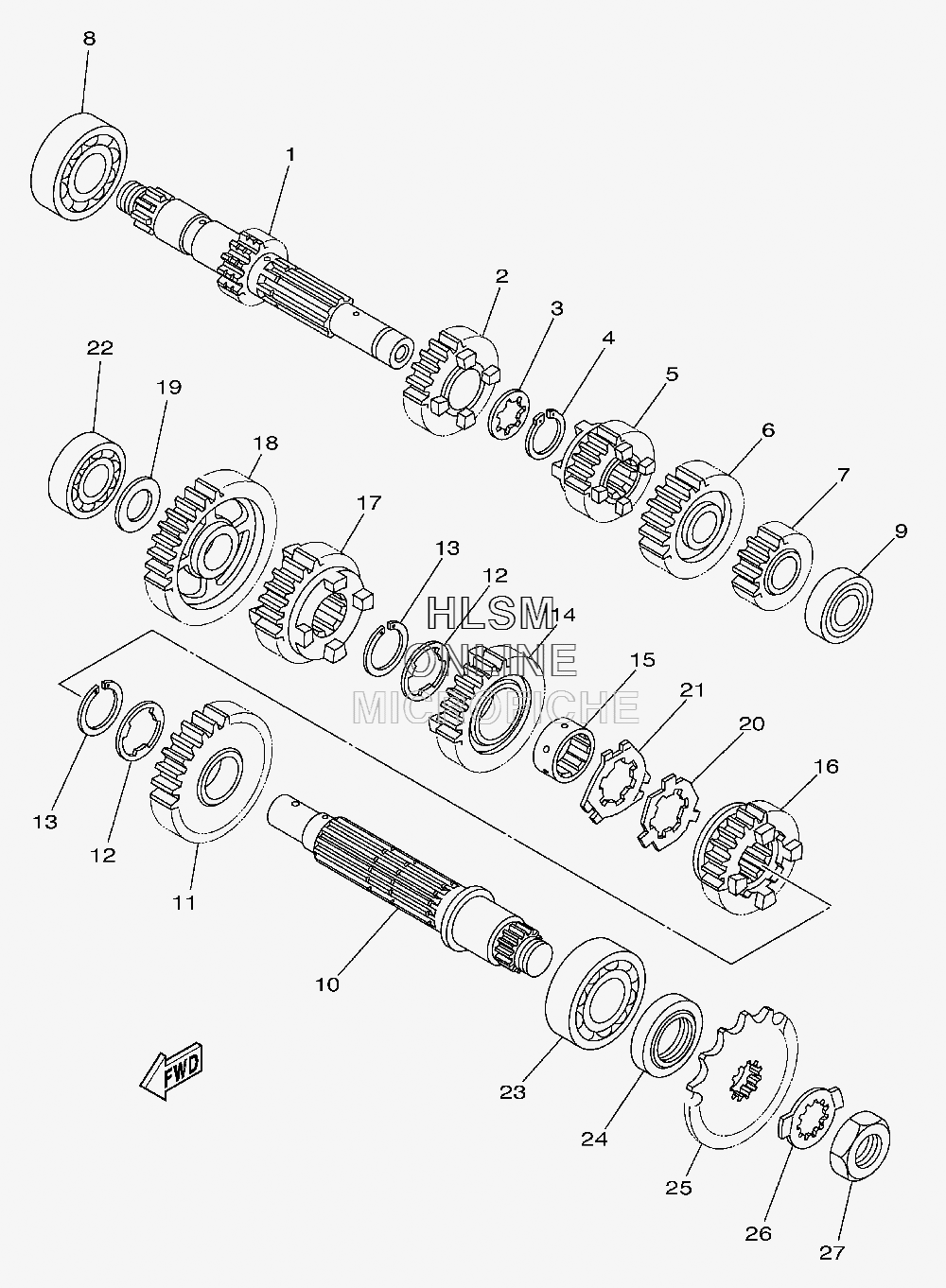

TRANSMISSION для Yamaha RAPTOR 250 - 2012 года выпуска
-
№АртикулНазвание
-
14D3-17411-00-00 AXLE, MAINAXLE, MAIN
-
24D3-17141-00-00 GEAR, 4TH PINION (24T)GEAR, 4TH PINION (24T)
-
390209-18208-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
493410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
54D3-17131-00-00 GEAR, 3RD PINION (21T)GEAR, 3RD PINION (21T)
-
64D3-17151-00-00 GEAR, 5TH PINION (29T)GEAR, 5TH PINION (29T)
-
74D3-17121-00-00 GEAR, 2ND PINION (18T)GEAR, 2ND PINION (18T)
-
893306-20427-00 BEARINGBEARING
-
993306-00320-00 BEARINGBEARING
-
104D3-17402-00-00 DRIVE AXLE ASSYDRIVE AXLE ASSY
-
114D3-17221-00-00 GEAR, 2ND WHEEL (33T)GEAR, 2ND WHEEL (33T)
-
1290209-22191-00 WASHER, SPEC'L SHAPEWASHER, SPEC'L SHAPE
-
1393440-25084-00 CIRCLIPCIRCLIP
-
144D3-17231-00-00 GEAR, 3RD WHEEL (29T)GEAR, 3RD WHEEL (29T)
-
1590387-22017-00 COLLARCOLLAR
-
164D3-17251-00-00 GEAR, 5TH WHEEL (28T)GEAR, 5TH WHEEL (28T)
-
174D3-17241-00-00 GEAR, 4TH WHEEL (24T)GEAR, 4TH WHEEL (24T)
-
184D3-17211-00-00 GEAR, 1ST WHEEL (37T)GEAR, 1ST WHEEL (37T)
-
1990201-17255-00 WASHER, PLATEWASHER, PLATE
-
2090214-22004-00 WASHER, CLAWWASHER, CLAW
-
2190214-22005-00 WASHER, CLAWWASHER, CLAW
-
2293306-20332-00 BEARINGBEARING
-
2393306-20532-00 BEARINGBEARING
-
2493102-25226-00 OIL SEALOIL SEAL
-
259383R-14236-00 SPROCKET,DRIVE (14T)SPROCKET,DRIVE (14T)
-
2690215-23265-00 WASHER, LOCKWASHER, LOCK
-
2790179-18552-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
