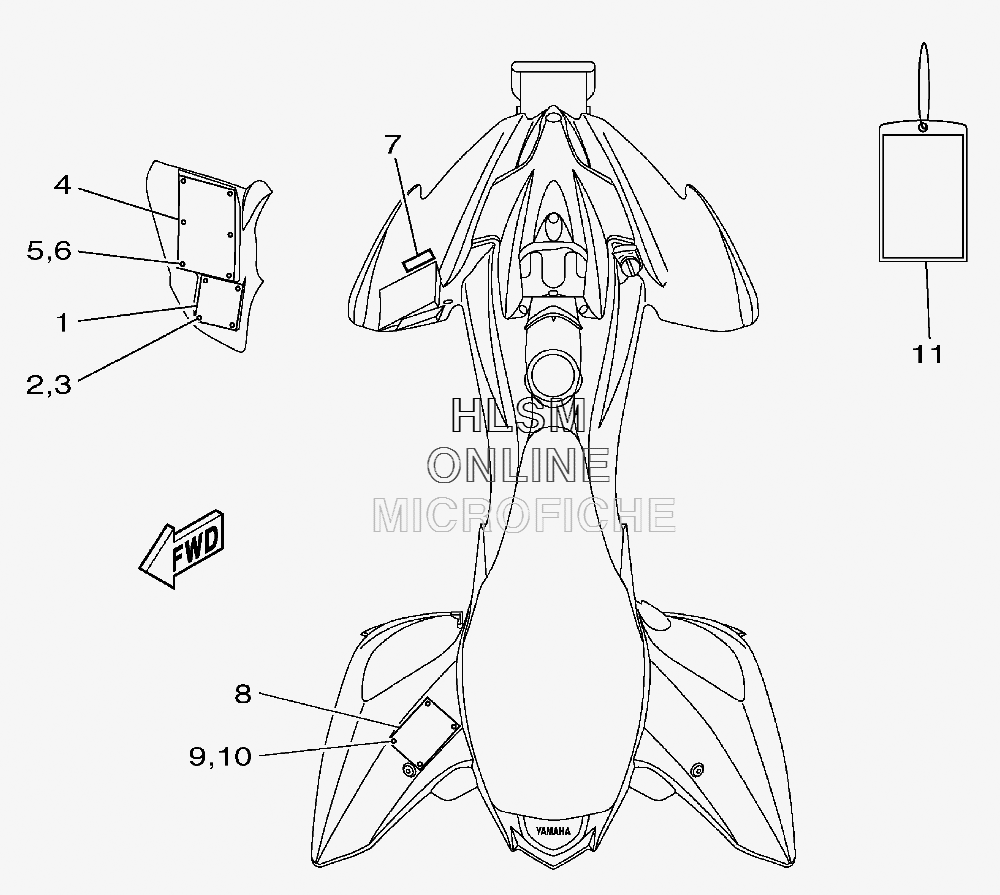

DECALS для Yamaha RAPTOR 250 - 2012 года выпуска
-
№АртикулНазвание
-
14D3-2816L-00-00 LABEL, WARNING AGELABEL, WARNING AGE
-
290267-32004-00 RIVET, BLINDRIVET, BLIND
-
390201-03008-00 WASHER, PLATEWASHER, PLATE
-
45FE-21568-01-00 LABEL, WARNINGLABEL, WARNING
-
590267-32004-00 RIVET, BLINDRIVET, BLIND
-
690201-03008-00 WASHER, PLATEWASHER, PLATE
-
743P-2817J-10-00 PLATE, ANSI SVIAPLATE, ANSI SVIA
-
84D3-2816M-U0-00 LABEL, WARNING TIRE AND LOADLABEL, WARNING TIRE AND LOAD
-
990267-32004-00 RIVET, BLINDRIVET, BLIND
-
1090201-03008-00 WASHER, PLATEWASHER, PLATE
-
115LP-2819R-10-00 TAG, WARNINGTAG, WARNING
