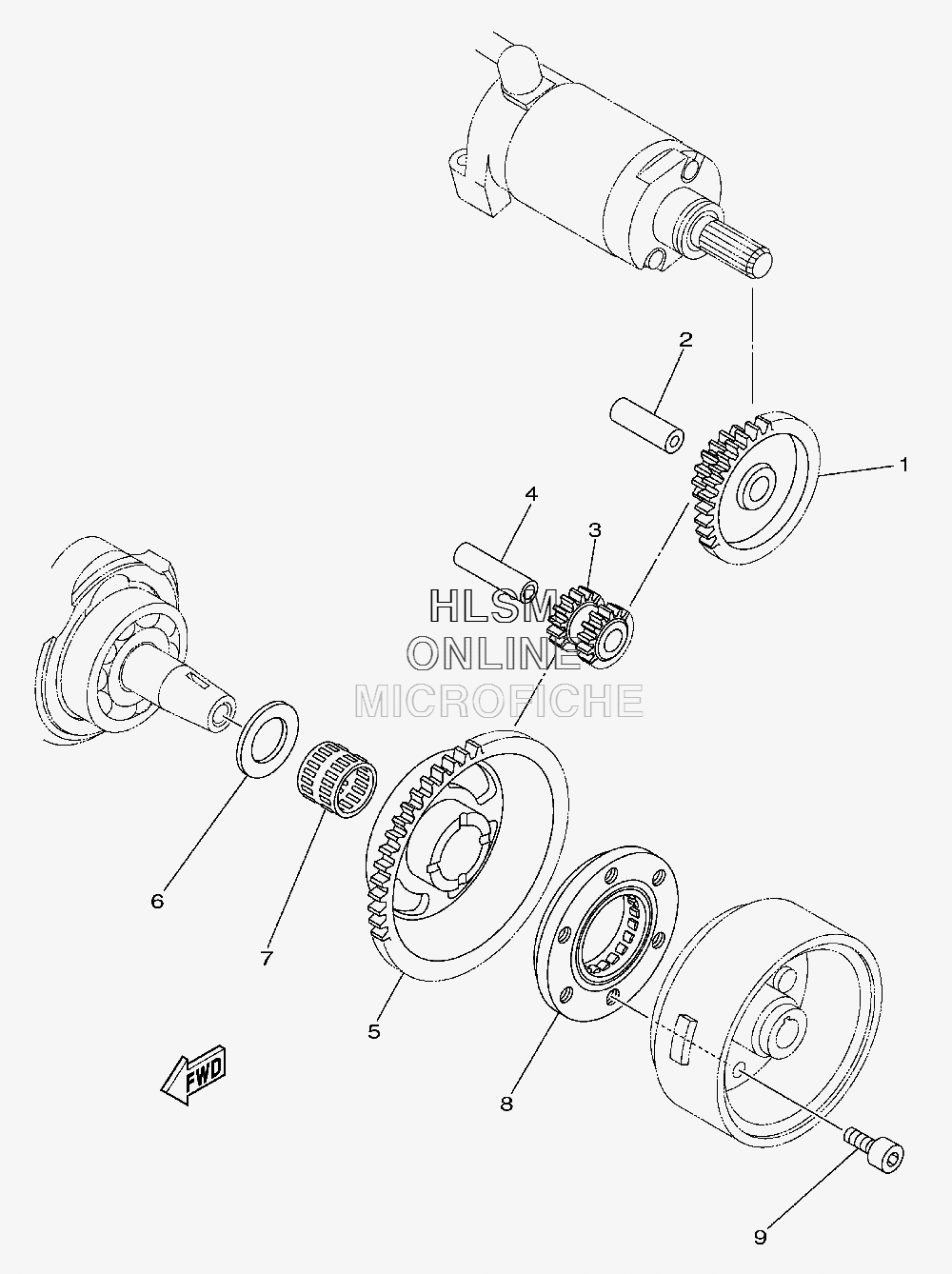

STARTER CLUTCH для Yamaha RAPTOR 250 - 2012 года выпуска
-
№АртикулНазвание
-
11S4-15512-00-00 GEAR, IDLER 1 (72T/18T)GEAR, IDLER 1 (72T/18T)
-
21VJ-15521-00-00 SHAFT 1SHAFT 1
-
31S4-15517-00-00 GEAR, IDLER 2 (15T/15T)GEAR, IDLER 2 (15T/15T)
-
436Y-15521-01-00 SHAFT 1SHAFT 1
-
51S4-15515-00-00 GEAR 3 (72T)GEAR 3 (72T)
-
690201-25291-00 WASHER, PLATEWASHER, PLATE
-
793310-225N0-00 BEARING, CYL.#10BEARING, CYL.#10
-
85BP-15590-00-00 STARTER ONE-WAY ASSYSTARTER ONE-WAY ASSY
-
990110-08053-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
