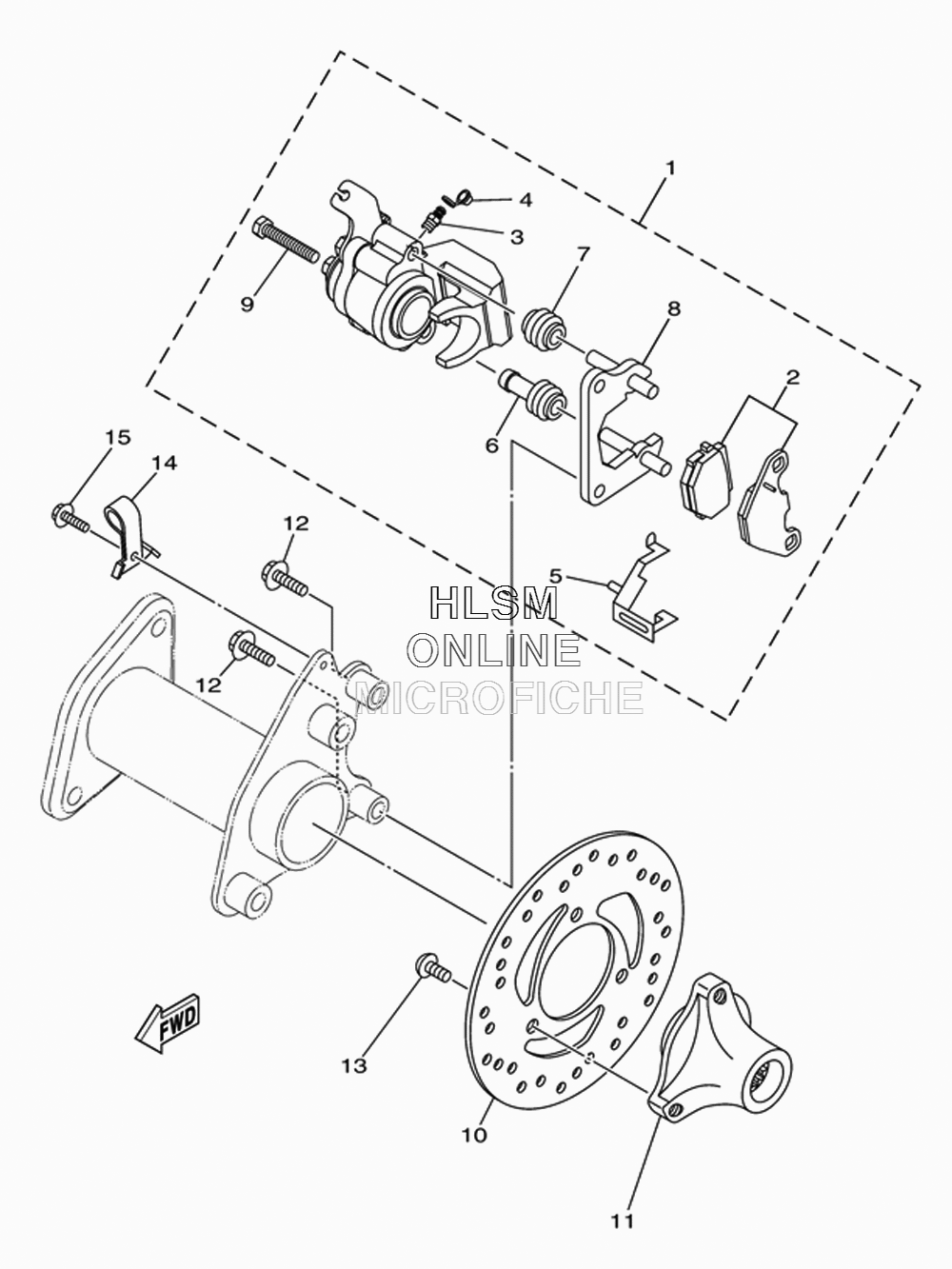

BRAKE - REAR CALIPER для Yamaha RAPTOR 90 - 2012 года выпуска
-
№АртикулНазвание
-
143D-F580V-01-00 CALIPER ASSY, REAR 1CALIPER ASSY, REAR 1
-
243D-F5906-01-00 ...REAR PAD LINING COMP. SET...REAR PAD LINING COMP. SET
-
343D-F5824-00-00 ...SCREW, BLEED...SCREW, BLEED
-
443D-F5825-00-00 ...CAP...CAP
-
543D-F5919-00-00 ...SUPPORT, PAD...SUPPORT, PAD
-
643D-F5937-00-00 ...BOOT 2...BOOT 2
-
743D-F5917-00-00 ...BOOT, CALIPER...BOOT, CALIPER
-
843D-F5921-01-00 ...BRACKET, SUPPORT...BRACKET, SUPPORT
-
943D-F5972-00-00 ...ADJUST BOLT...ADJUST BOLT
-
1043D-F582V-01-00 DISC, REAR BRAKE 1DISC, REAR BRAKE 1
-
1143D-F5712-00-00 BRACKET, DISCBRACKET, DISC
-
1243D-F5833-00-00 BOLT, FITTINGBOLT, FITTING
-
1343D-F1631-00-00 BOLT 1BOLT 1
-
1443D-F5876-00-00 HOLDER, BRAKE HOSE 2HOLDER, BRAKE HOSE 2
-
1595827-06012-00 BOLT, FLANGEBOLT, FLANGE
