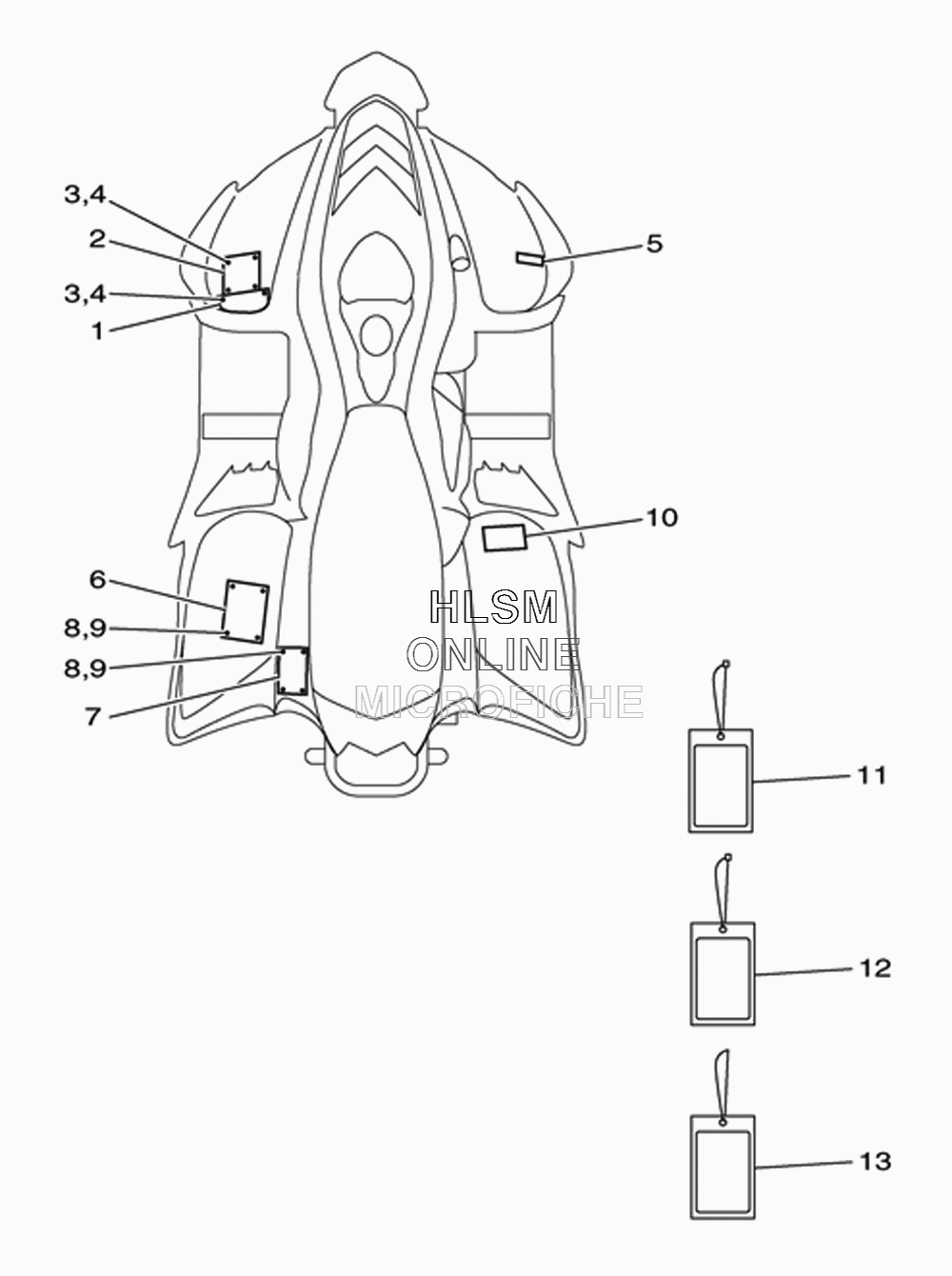

DECALS для Yamaha RAPTOR 90 - 2012 года выпуска
-
№АртикулНазвание
-
143D-F1568-00-00 LABEL, WARNINGLABEL, WARNING
-
243D-F816L-00-00 LABEL, WARNING AGELABEL, WARNING AGE
-
343D-F1128-00-00 RIVETRIVET
-
443D-F1615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
543D-F817J-30-00 PLATE, ANSI SVIAPLATE, ANSI SVIA
-
643D-F816M-00-00 LABEL, WARNING TIRE & LOADLABEL, WARNING TIRE & LOAD
-
743D-F151H-00-00 LABEL 5LABEL 5
-
843D-F1128-00-00 RIVETRIVET
-
943D-F1615-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
1043D-F839Y-00-00 LABEL, CAUTION 2LABEL, CAUTION 2
-
1143D-F819R-00-00 TAG, WARNINGTAG, WARNING
-
1243D-F818S-00-00 TAG, NERTAG, NER
-
1343D-F818N-00-00 TAG CAUTIONTAG CAUTION
