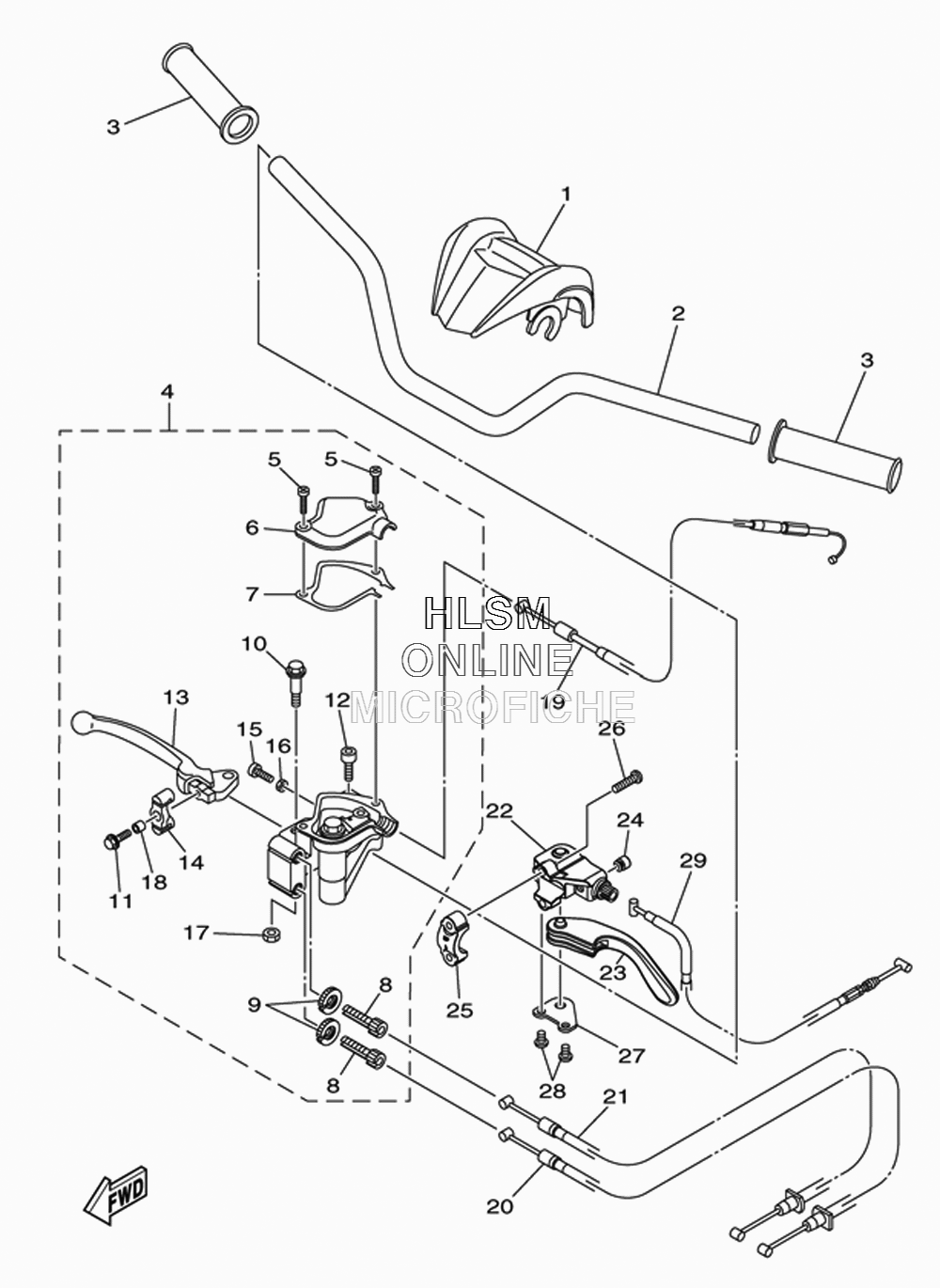

HANDLEBAR W/ CABLES для Yamaha RAPTOR 90 - 2012 года выпуска
-
№АртикулНазвание
-
143D-F6124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
243D-F6111-01-00 HANDLEBARHANDLEBAR
-
343D-F6241-00-00 GRIPGRIP
-
443D-F6250-01-00 THROTTLE LEVER ASSYTHROTTLE LEVER ASSY
-
543D-H1145-00-00 ...SCREW 1...SCREW 1
-
643D-F628F-00-00 ...CAP, GEAR...CAP, GEAR
-
743D-F628G-00-00 ...GASKET...GASKET
-
843D-F1739-00-00 ...BOLT...BOLT
-
943D-F1968-00-00 ...NUT...NUT
-
1043D-F3346-00-00 ...BOLT 1...BOLT 1
-
1143D-F6382-00-00 ...BOLT, AJUSTING...BOLT, AJUSTING
-
1243D-F6332-00-00 ...BOLT...BOLT
-
1343D-H3922-01-00 ...LEVER 2...LEVER 2
-
1443D-F6347-00-00 ...JOINT, CABLE...JOINT, CABLE
-
1543D-F6337-00-00 ...BOLT, ADJUSTING...BOLT, ADJUSTING
-
1643D-F3357-00-00 ...NUT...NUT
-
1743D-F3778-00-00 ...NUT...NUT
-
1843D-F7213-00-00 ...COLLAR...COLLAR
-
1943D-F6311-01-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
2043D-F6340-00-00 CABLE, BRAKECABLE, BRAKE
-
2143D-F6350-00-00 CABLE, BRAKECABLE, BRAKE
-
2243D-F5727-00-00 BRACKET, LEVERBRACKET, LEVER
-
2343D-F5726-00-00 LEVER, BRAKELEVER, BRAKE
-
2443D-F6113-00-00 DAMPERDAMPER
-
2543D-F6393-00-00 HOLDERHOLDER
-
2643D-F8354-00-00 SCREWSCREW
-
2743D-F5689-00-00 PLATE, GUIDEPLATE, GUIDE
-
2843D-F8355-00-00 SCREWSCREW
-
2943D-F6341-10-00 WIRE, BRAKE 1WIRE, BRAKE 1
