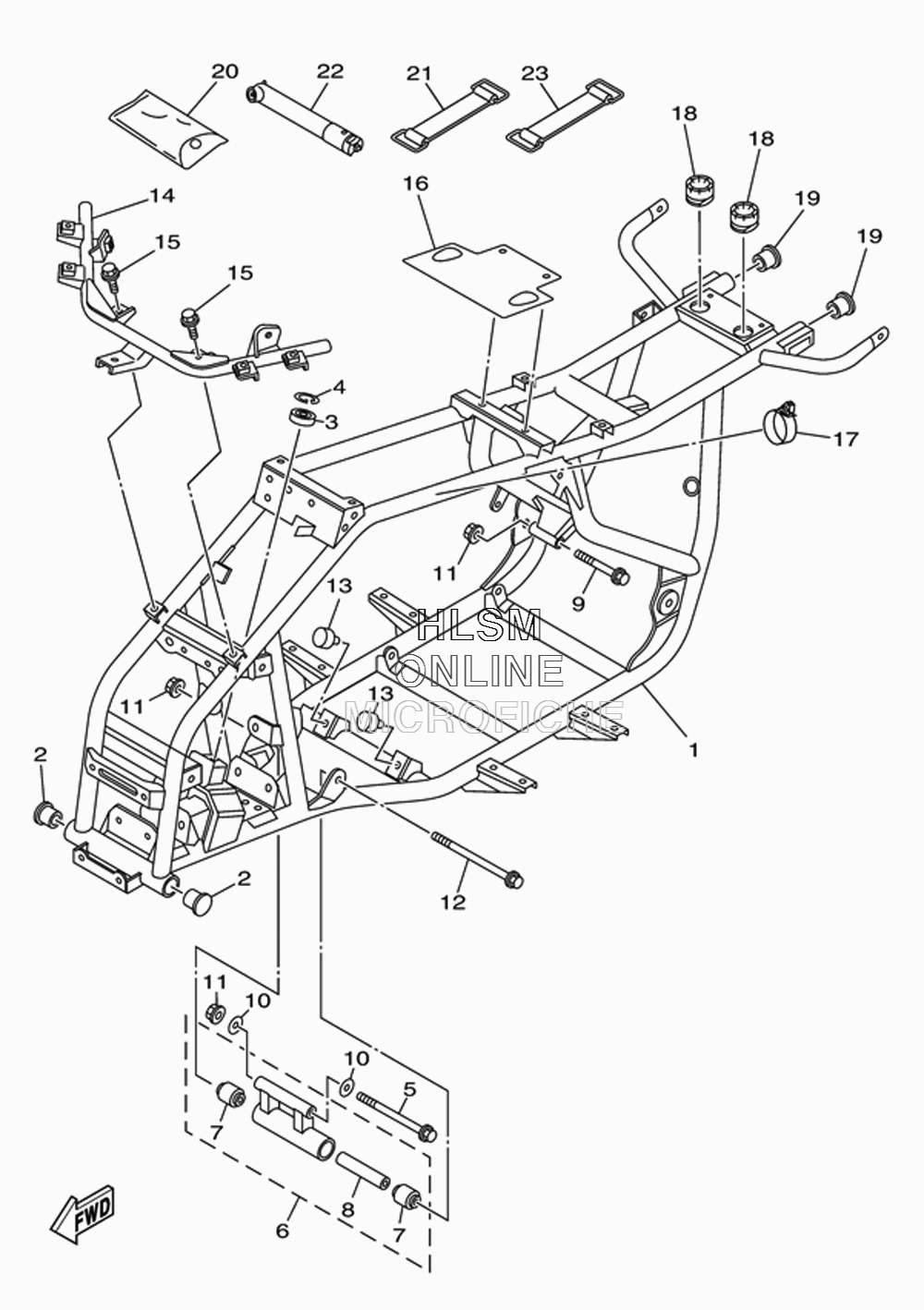

FRAME для Yamaha RAPTOR 90 - 2012 года выпуска
-
№АртикулНазвание
-
143D-F1110-01-00 FRAME COMP.FRAME COMP.
-
243D-F1279-00-00 PLUG, BLINDPLUG, BLIND
-
343D-F11C1-00-00 BEARINGBEARING
-
443D-F11C2-00-00 CLIPCLIP
-
543D-E2623-00-00 BOLTBOLT
-
643D-F1410-00-00 ENGINE BRACKET COMP.ENGINE BRACKET COMP.
-
743D-F11C3-00-00 ...BUSH...BUSH
-
843D-F1459-00-00 ...SPACER...SPACER
-
943D-F1632-00-00 BOLT 2BOLT 2
-
1043D-F1549-00-00 WASHER, FENDER MOLDWASHER, FENDER MOLD
-
1143D-F1494-00-00 NUTNUT
-
1243D-E3573-00-00 BOLT 1BOLT 1
-
1343D-F112C-00-00 DAMPER 2DAMPER 2
-
1443D-F1513-00-00 STAY, FENDER 1STAY, FENDER 1
-
1595827-08012-00 BOLT, FLANGEBOLT, FLANGE
-
1643D-F1471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
1743D-F1823-00-00 CLAMP, HOSECLAMP, HOSE
-
1843D-F113B-00-00 DAMPERDAMPER
-
1943D-F1289-00-00 PLUG, BLINDPLUG, BLIND
-
2043D-F8100-00-00 TOOL KITTOOL KIT
-
2143D-F4399-00-00 BAND 2BAND 2
-
2243D-F811A-01-00 GAUGE, AIRGAUGE, AIR
-
2343D-F4398-00-00 BAND 1BAND 1
