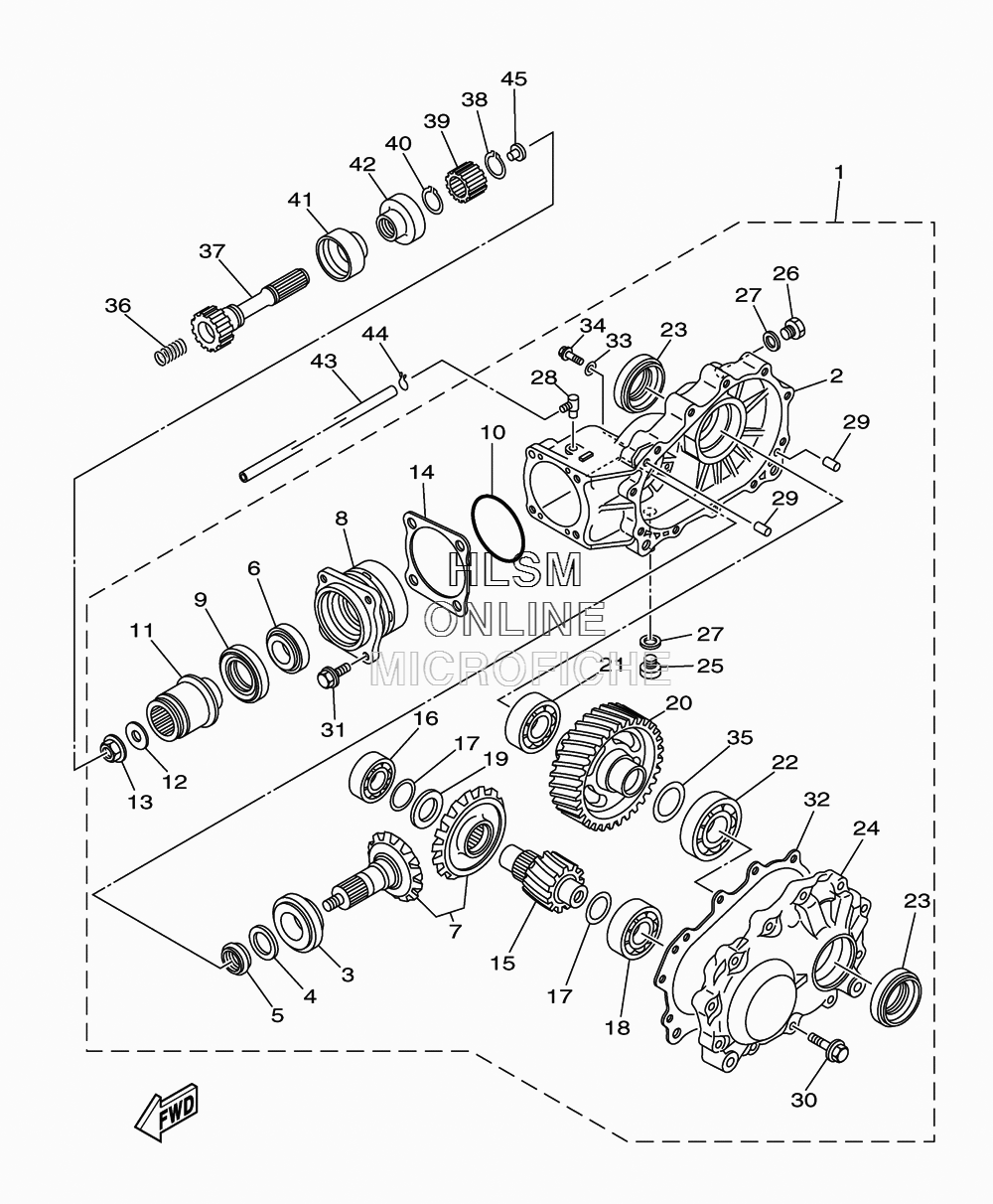

DIFFERENTIAL - REAR W/ DRIVE SHAFT для Yamaha GRIZZLY 550 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
11HP-46101-00-00 REAR AXLE GEAR CASE ASSY.REAR AXLE GEAR CASE ASSY.
-
23B4-46151-00-00 ...HOUSING, DRIVE SHAFT...HOUSING, DRIVE SHAFT
-
393332-00046-00 ...BEARING...BEARING
-
490201-25634-00 ...WASHER, PLATE...WASHER, PLATE
-
53B4-46129-00-00 ...SPACER, EXPANSION...SPACER, EXPANSION
-
693332-00053-00 ...BEARING TAPER 52-25...BEARING TAPER 52-25
-
73B4-461A0-00-00 ...RING GEAR SET...RING GEAR SET
-
83B4-46144-00-00 ...HOUSING, PINION BEARING...HOUSING, PINION BEARING
-
993102-35380-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
1093210-626A7-00 ...O-RING...O-RING
-
113B4-46126-10-00 ...COUPLING...COUPLING
-
1290201-12029-00 ...WASHER, PLATE...WASHER, PLATE
-
1390179-12005-00 ...NUT...NUT
-
142HR-46127-00-50 ...SHIM, DRIVE PISTON (0.50T)...SHIM, DRIVE PISTON (0.50T)
-
142HR-46127-00-40 ...SHIM, DRIVE PISTON (0.40T)...SHIM, DRIVE PISTON (0.40T)
-
142HR-46127-00-25 ...SHIM, DRIVE PISTON (0.25T)...SHIM, DRIVE PISTON (0.25T)
-
142HR-46127-00-30 ...SHIM, DRIVE PISTON (0.30T)...SHIM, DRIVE PISTON (0.30T)
-
142HR-46127-00-35 ...SHIM, DRIVE PISTON (0.35T)...SHIM, DRIVE PISTON (0.35T)
-
142HR-46127-00-45 ...SHIM, DRIVE PISTON (0.45T)...SHIM, DRIVE PISTON (0.45T)
-
153B4-46316-00-00 ...GEAR, PINION 1...GEAR, PINION 1
-
1693306-205U0-00 ...BEARING...BEARING
-
173B4-46119-40-00 ...SHIM, THRUST (0.45T)...SHIM, THRUST (0.45T)
-
173B4-46119-30-00 ...SHIM, THRUST (0.40T)...SHIM, THRUST (0.40T)
-
173B4-46119-20-00 ...SHIM, THRUST (0.35T)...SHIM, THRUST (0.35T)
-
173B4-46119-50-00 ...SHIM, THRUST (0.50T)...SHIM, THRUST (0.50T)
-
173B4-46119-00-00 ...SHIM, THRUST (0.25T)...SHIM, THRUST (0.25T)
-
173B4-46119-10-00 ...SHIM, THRUST (0.30T)...SHIM, THRUST (0.30T)
-
1893306-30534-00 ...BEARING...BEARING
-
193B4-4621F-30-00 ...SHIM,THRUST (5.4T)...SHIM,THRUST (5.4T)
-
193B4-4621F-20-00 ...SHIM,THRUST (5.1T)...SHIM,THRUST (5.1T)
-
193B4-4621F-00-00 ...SHIM,THRUST (4.5T)...SHIM,THRUST (4.5T)
-
193B4-4621F-10-00 ...SHIM,THRUST (4.8T)...SHIM,THRUST (4.8T)
-
203B4-46326-01-00 ...GEAR, WHEEL 1...GEAR, WHEEL 1
-
2193306-00704-00 ...BEARING...BEARING
-
2293306-207U0-00 ...BEARING...BEARING
-
2393102-35380-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
243B4-46152-00-00 ...HOUSING, BEARING...HOUSING, BEARING
-
2590340-14002-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
2690340-14029-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
27214-11198-01-00 ...GASKET...GASKET
-
285UG-15371-00-00 ...BREATHER...BREATHER
-
2999530-10014-00 ...PIN, DOWEL...PIN, DOWEL
-
3095822-08035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3195822-08025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
323B4-4631A-01-00 ...GASKET., CASE...GASKET., CASE
-
3390201-08087-00 ...WASHER, PLATE...WASHER, PLATE
-
3495022-08012-00 ...BOLT, FLANGE...BOLT, FLANGE
-
353B4-46344-50-00 ...SHIM (0.50T)...SHIM (0.50T)
-
353B4-46344-40-00 ...SHIM (0.45T)...SHIM (0.45T)
-
353B4-46344-00-00 ...SHIM (0.25T)...SHIM (0.25T)
-
353B4-46344-10-00 ...SHIM (0.30T)...SHIM (0.30T)
-
353B4-46344-20-00 ...SHIM (0.35T)...SHIM (0.35T)
-
353B4-46344-30-00 ...SHIM (0.40T)...SHIM (0.40T)
-
3690501-20361-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
371HP-G6172-00-00 SHAFT, DRIVESHAFT, DRIVE
-
3899009-19400-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
395KM-46126-00-00 COUPLINGCOUPLING
-
4093410-22039-00 CIRCLIP, S-TYPECIRCLIP, S-TYPE
-
415KM-46137-00-00 SEAL 2SEAL 2
-
425KM-46136-00-00 SEAL 1SEAL 1
-
4390445-074F6-00 HOSE (L1300)HOSE (L1300)
-
4490467-07029-00 CLIPCLIP
-
455KM-46559-00-00 DAMPERDAMPER
