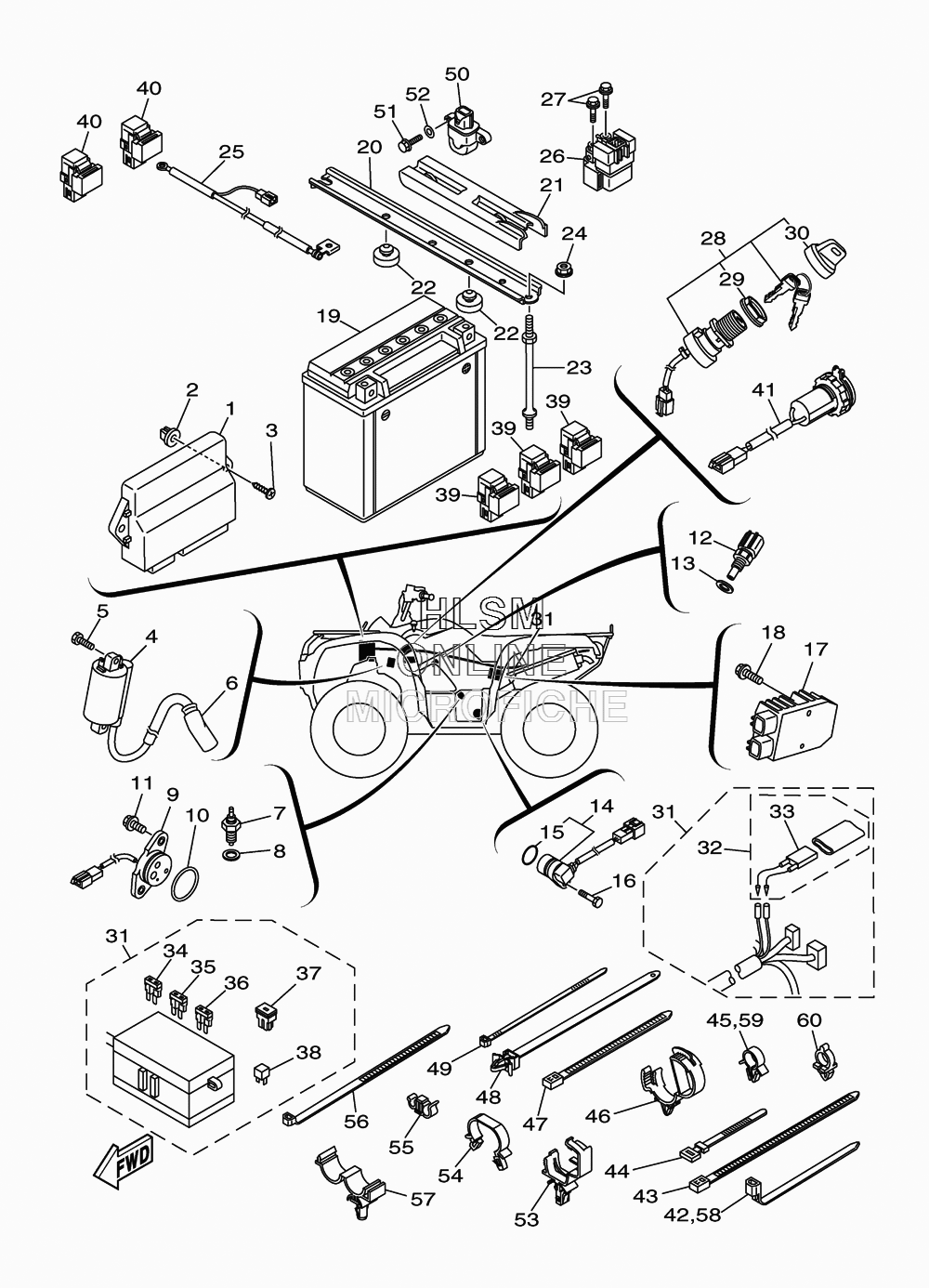

ELECTRICAL для Yamaha GRIZZLY 550 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
11HS-8591A-00-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
290338-08226-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
397702-60025-00 SCREW, TAPPINGSCREW, TAPPING
-
41D7-82310-01-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
597002-06016-00 BOLTBOLT
-
628P-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
73GB-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
890430-10148-00 GASKETGASKET
-
93B4-82540-01-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
1093210-29196-00 O-RINGO-RING
-
1190119-06137-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
128CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1390430-12202-00 GASKETGASKET
-
143B4-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
154D9-81168-00-00 ...O-RING...O-RING
-
1691312-06020-00 BOLTBOLT
-
171D7-81960-01-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1895812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
195FU-H2100-20-00 BATTERY ASSY (YUASA YTX20L-BS)BATTERY ASSY (YUASA YTX20L-BS)
-
201HP-H2128-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
213B4-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
2222W-24741-00-00 PAD, SEATPAD, SEAT
-
233B4-82133-10-00 SCREW, FITTINGSCREW, FITTING
-
2495702-06500-00 NUT, FLANGENUT, FLANGE
-
2528P-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
263B4-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2828P-82510-00-00 MAIN SWITCH ASSY (INC. 28 - 30)MAIN SWITCH ASSY (INC. 28 - 30)
-
293HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
303HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
311ND-82590-10-00 WIRE HARNESS ASSY (INC. 31 - 38)WIRE HARNESS ASSY (INC. 31 - 38)
-
324GB-82180-00-00 ...CIRCUIT BREAKER ASSY...CIRCUIT BREAKER ASSY
-
334GB-82560-00-00 ......THERMO SWITCH ASSY......THERMO SWITCH ASSY
-
345JJ-82151-90-00 ...FUSE (5A-BL)...FUSE (5A-BL)
-
355JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
365JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
375PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
383WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
395DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
408FP-81950-01-00 RELAY ASSYRELAY ASSY
-
411HP-H254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
4290464-15195-00 CLAMPCLAMP
-
4390464-40825-00 CLAMPCLAMP
-
44437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
4590464-15157-00 CLAMPCLAMP
-
4690464-20181-00 CLAMPCLAMP
-
4790464-31827-00 CLAMPCLAMP
-
4890464-10112-00 CLAMPCLAMP
-
495Y9-12491-00-00 CLAMP 1CLAMP 1
-
503B4-82576-00-00 SENSOR, LEAN ANGLESENSOR, LEAN ANGLE
-
5197002-05016-00 BOLTBOLT
-
5292902-05600-00 WASHER, PLATEWASHER, PLATE
-
5390464-20237-00 CLAMPCLAMP
-
5490464-24230-00 CLAMPCLAMP
-
5590464-09013-00 CLAMPCLAMP
-
5690464-12045-00 CLAMPCLAMP
-
5790464-16012-00 CLAMPCLAMP
-
5890464-15195-00 CLAMPCLAMP
-
5990464-15157-00 CLAMPCLAMP
-
6090464-10833-00 CLAMPCLAMP
