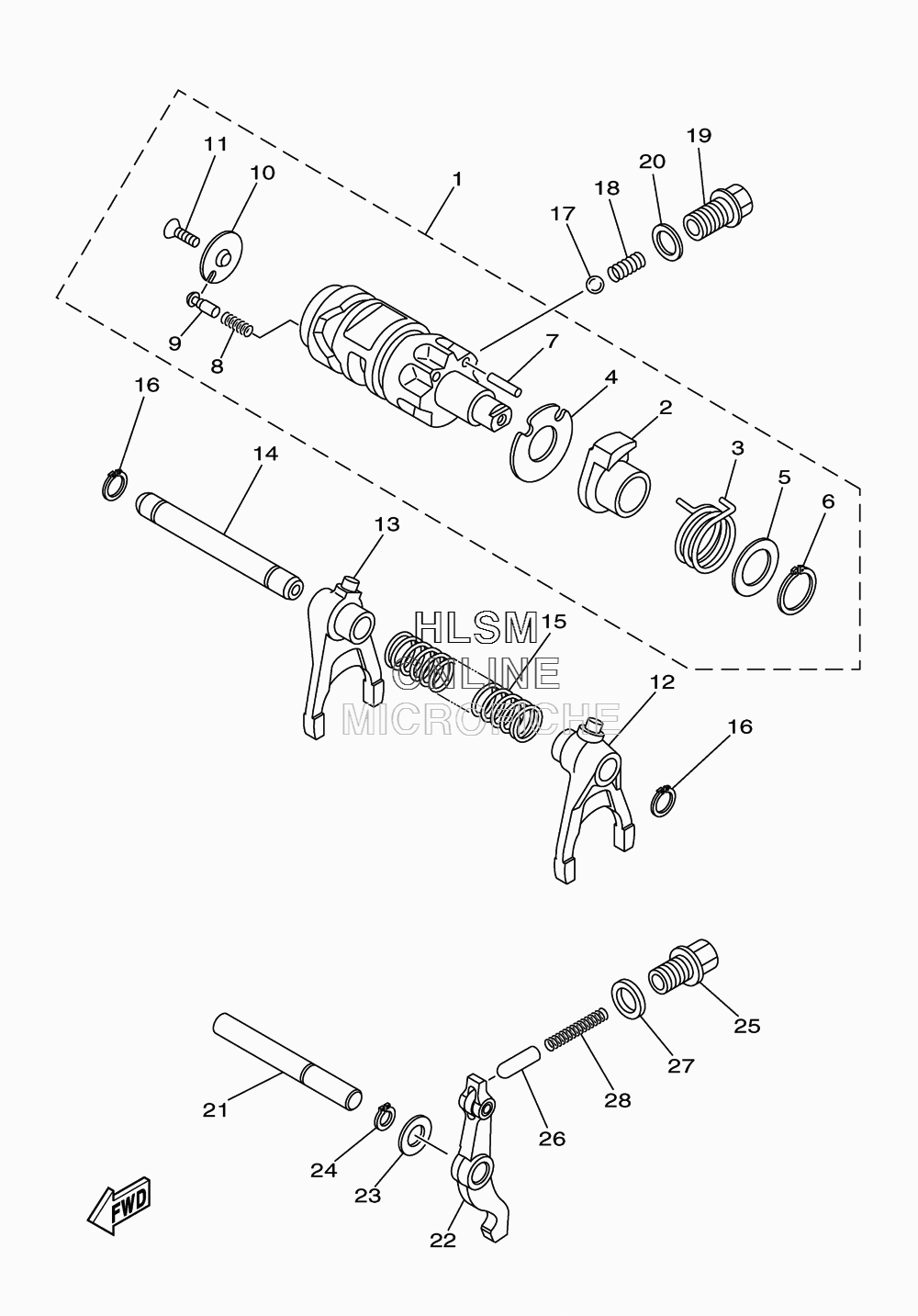

SHIFT CAM W/ FORK для Yamaha GRIZZLY 550 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
13B4-18540-21-00 SHIFT CAM ASSY.SHIFT CAM ASSY.
-
25KM-18171-00-00 ...CAM, LEVER...CAM, LEVER
-
390508-32132-00 ...SPRING, TORSION...SPRING, TORSION
-
43B4-18331-00-00 ...PLATE, SHIFT CAM...PLATE, SHIFT CAM
-
590560-20040-00 ...SPACER...SPACER
-
693410-20038-00 ...CIRCLIP, S-TYPE...CIRCLIP, S-TYPE
-
793604-18100-00 ...PIN, DOWEL...PIN, DOWEL
-
890501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
95KM-18542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
104UN-18566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
1190149-05016-00 ...SCREW...SCREW
-
123B4-18511-11-00 FORK, SHIFT 1FORK, SHIFT 1
-
133B4-18512-11-00 FORK, SHIFT 2FORK, SHIFT 2
-
143B4-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
1590501-140A2-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1699009-12400-00 CIRCLIPCIRCLIP
-
1793503-08007-00 BALL 3/8BALL 3/8
-
1890501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1990105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
2090430-14194-00 GASKETGASKET
-
213B4-18318-00-00 SHAFT, SHIFTERSHAFT, SHIFTER
-
2228P-18140-01-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
2390201-127J6-00 WASHER, PLATEWASHER, PLATE
-
2499009-12400-00 CIRCLIPCIRCLIP
-
2590109-14002-00 BOLTBOLT
-
261J7-18547-00-00 STOPPER, CAMSTOPPER, CAM
-
2790430-14043-00 GASKETGASKET
-
2890501-090A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
