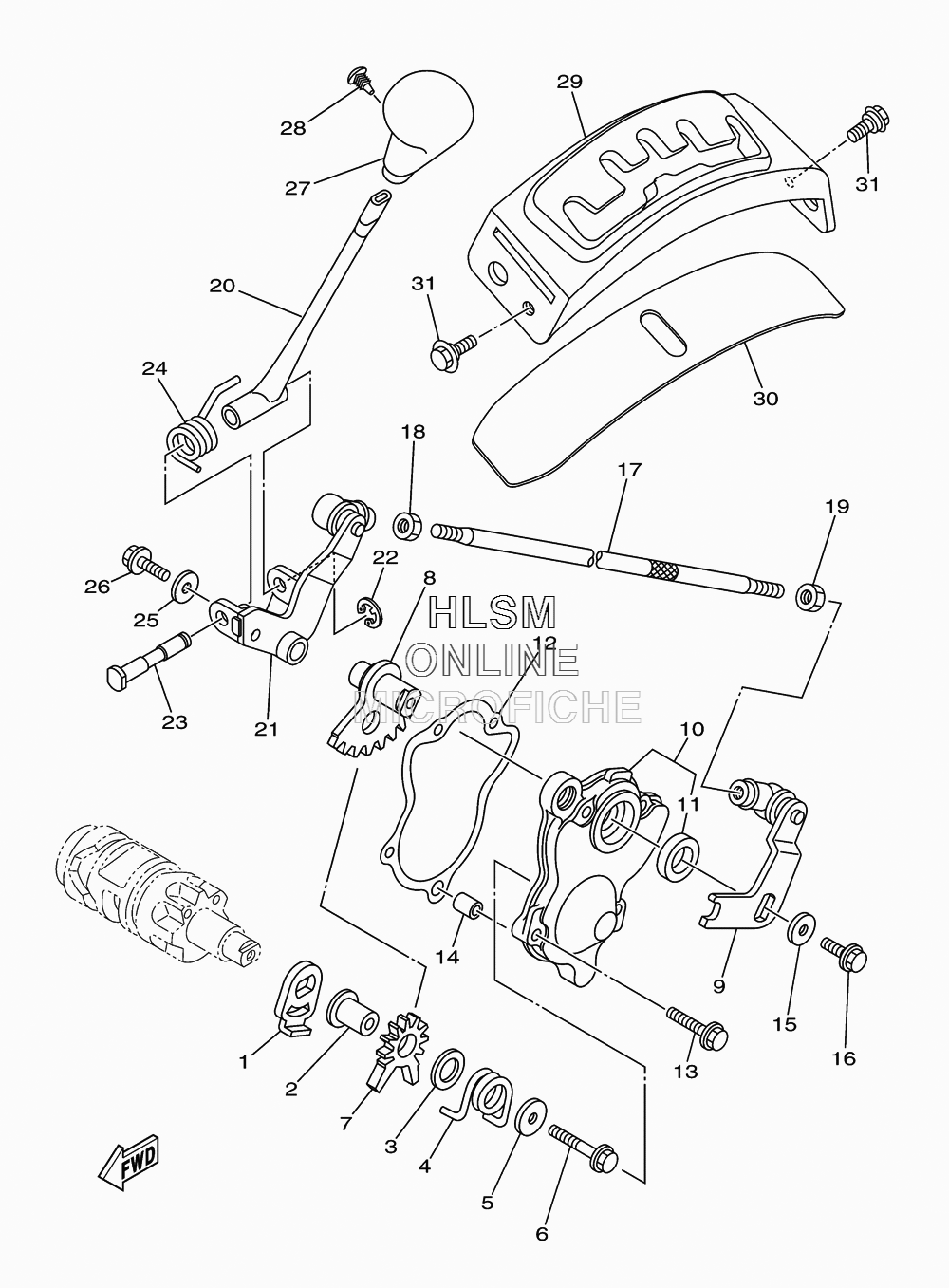

SHIFT SHAFT для Yamaha GRIZZLY 550 4WD HUNTER - 2013 года выпуска
-
№АртикулНазвание
-
14SH-18198-00-00 LEVERLEVER
-
290387-0613B-00 COLLARCOLLAR
-
390201-132G5-00 WASHER, PLATEWASHER, PLATE
-
490508-32117-00 SPRING, TORSIONSPRING, TORSION
-
590201-06036-00 WASHER, PLATEWASHER, PLATE
-
695812-06035-00 BOLT, FLANGEBOLT, FLANGE
-
75KM-18191-00-00 LEVERLEVER
-
81HP-18103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
928P-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
101HP-18380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
1193102-17263-00 ...OIL SEAL, SD-TYPE...OIL SEAL, SD-TYPE
-
123B4-18146-00-00 GASKETGASKET
-
1395022-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1499530-08012-00 PIN, DOWELPIN, DOWEL
-
1590201-06036-00 WASHER, PLATEWASHER, PLATE
-
1690105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
1728P-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1995312-06700-00 NUTNUT
-
201HP-E8190-00-00 LEVER COMP. 1LEVER COMP. 1
-
211HP-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2299002-06600-00 CIRCLIPCIRCLIP
-
231HP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
241HP-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
2590201-06036-00 WASHER, PLATEWASHER, PLATE
-
2695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2728P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2890269-05055-00 RIVET, SPEC'L SHAPERIVET, SPEC'L SHAPE
-
291HP-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
301HP-E8154-00-00 COVER, DUSTCOVER, DUST
-
3190109-06172-00 BOLTBOLT
