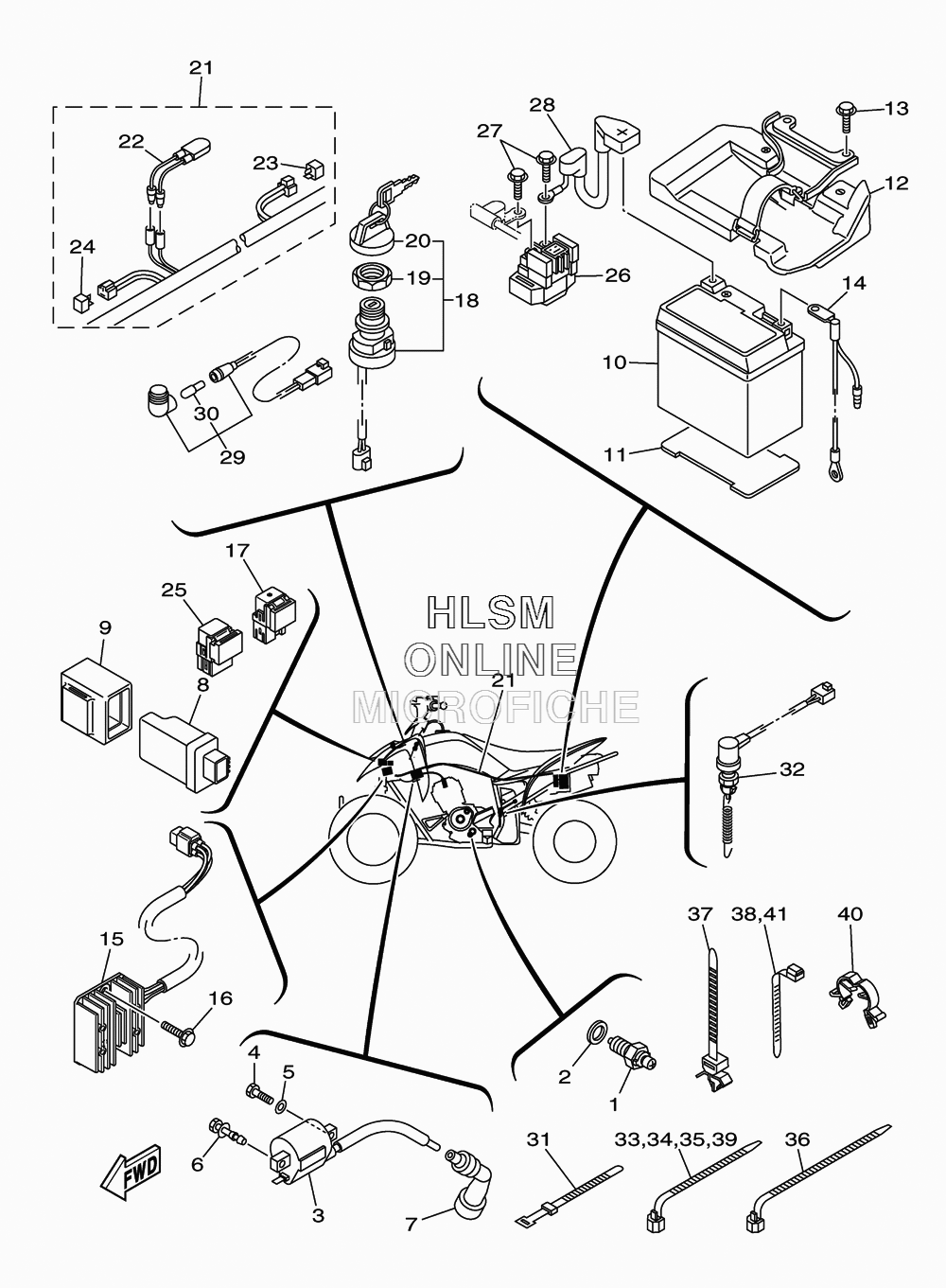

ELECTRICAL для Yamaha RAPTOR 125 - 2013 года выпуска
-
№АртикулНазвание
-
15VL-H2540-11-00 NEUTRAL SWITCH ASSYNEUTRAL SWITCH ASSY
-
290430-10819-00 GASKETGASKET
-
34BE-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
497002-06020-00 BOLTBOLT
-
592902-06600-00 WASHER, PLATEWASHER, PLATE
-
690109-06723-00 BOLTBOLT
-
72PA-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
82PA-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
92PA-85546-00-00 BANDBAND
-
101S4-82100-10-00 BATTERY ASSY (YTZ7S)BATTERY ASSY (YTZ7S)
-
114D3-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
124D3-82106-10-00 BATTERY PLATE COMPBATTERY PLATE COMP
-
1395812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
142PA-H2116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
152PA-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1695802-06014-00 BOLT, FLANGEBOLT, FLANGE
-
178FP-81950-01-00 RELAY ASSYRELAY ASSY
-
185LP-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
193HN-82569-00-00 ...NUT, MAIN SWITCH...NUT, MAIN SWITCH
-
203HN-82579-00-00 ...CAP, KEY...CAP, KEY
-
212PA-82590-00-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
224D3-82560-00-00 ...THERMO SWITCH ASSY...THERMO SWITCH ASSY
-
234WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
243WP-81980-00-00 ...RECTIFIER 2...RECTIFIER 2
-
255DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
264D3-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
2795022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
284D3-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
294D3-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
305GH-83516-00-00 ...BULB (12V-1.7W T6.5)...BULB (12V-1.7W T6.5)
-
31437-83936-01-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
324D3-82530-00-00 STOP SWITCH ASSYSTOP SWITCH ASSY
-
3390464-13073-00 CLAMPCLAMP
-
3490464-13073-00 CLAMPCLAMP
-
3590464-13073-00 CLAMPCLAMP
-
3690464-15195-00 CLAMPCLAMP
-
3790464-12089-00 CLAMPCLAMP
-
3890464-13077-00 CLAMPCLAMP
-
3990464-13073-00 CLAMPCLAMP
-
4090464-23239-00 CLAMPCLAMP
-
4190464-13077-00 CLAMPCLAMP
