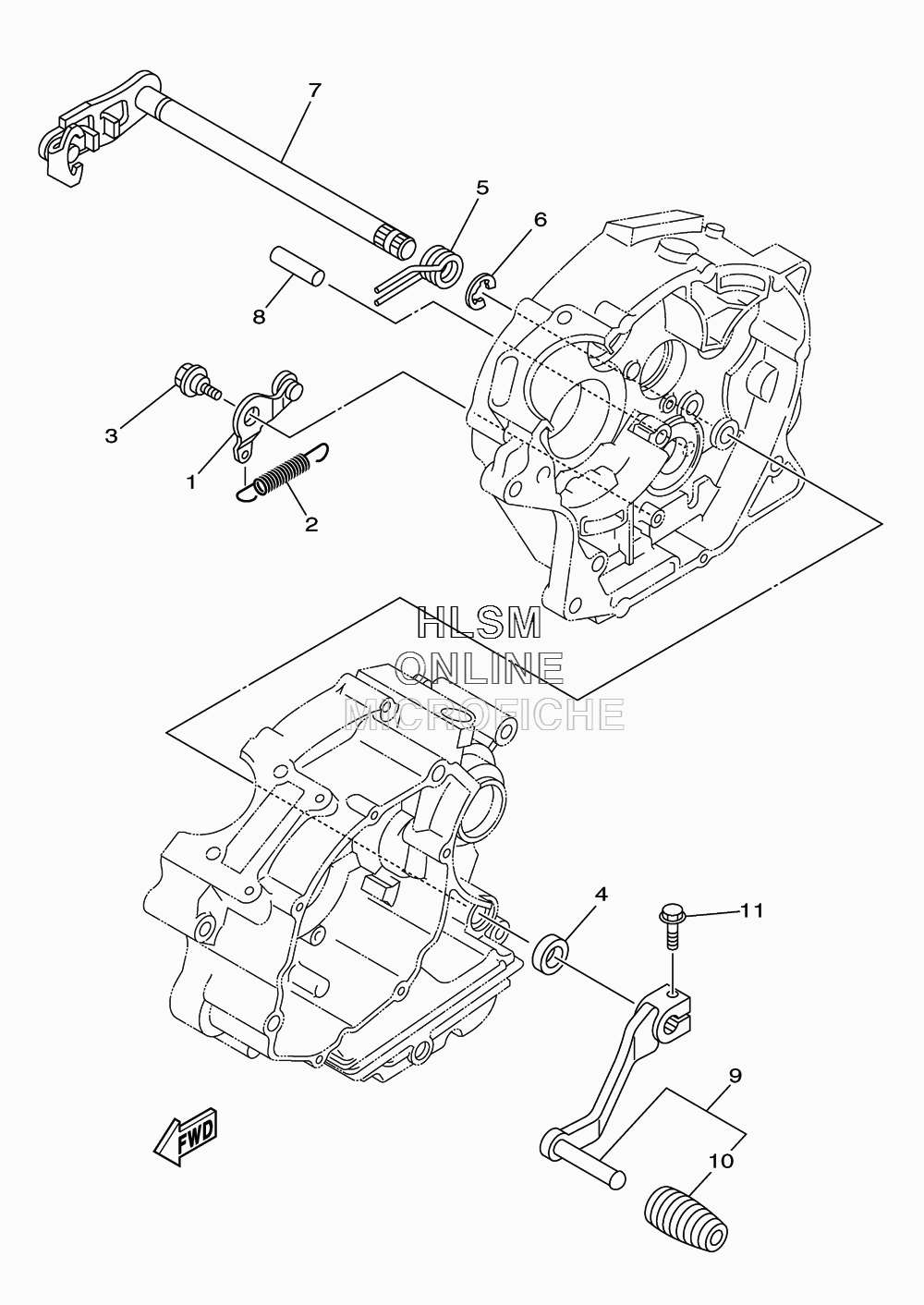

SHIFT SHAFT для Yamaha RAPTOR 125 - 2013 года выпуска
-
№АртикулНазвание
-
15VL-E8140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
25VL-E8337-00-00 SPRINGSPRING
-
34FP-E8177-00-00 BOLT, STOPPERBOLT, STOPPER
-
493101-12812-00 OIL SEALOIL SEAL
-
590508-32801-00 SPRING, TORSIONSPRING, TORSION
-
699002-10600-00 CLIPCLIP
-
75VL-E8101-02-00 SHIFT SHAFT ASSYSHIFT SHAFT ASSY
-
893608-30839-00 PIN, DOWELPIN, DOWEL
-
94D3-18110-10-00 SHIFT PEDAL ASSYSHIFT PEDAL ASSY
-
105YT-18113-00-00 ...COVER, SHIFT PEDAL...COVER, SHIFT PEDAL
-
1195812-06020-00 BOLT, FLANGEBOLT, FLANGE
