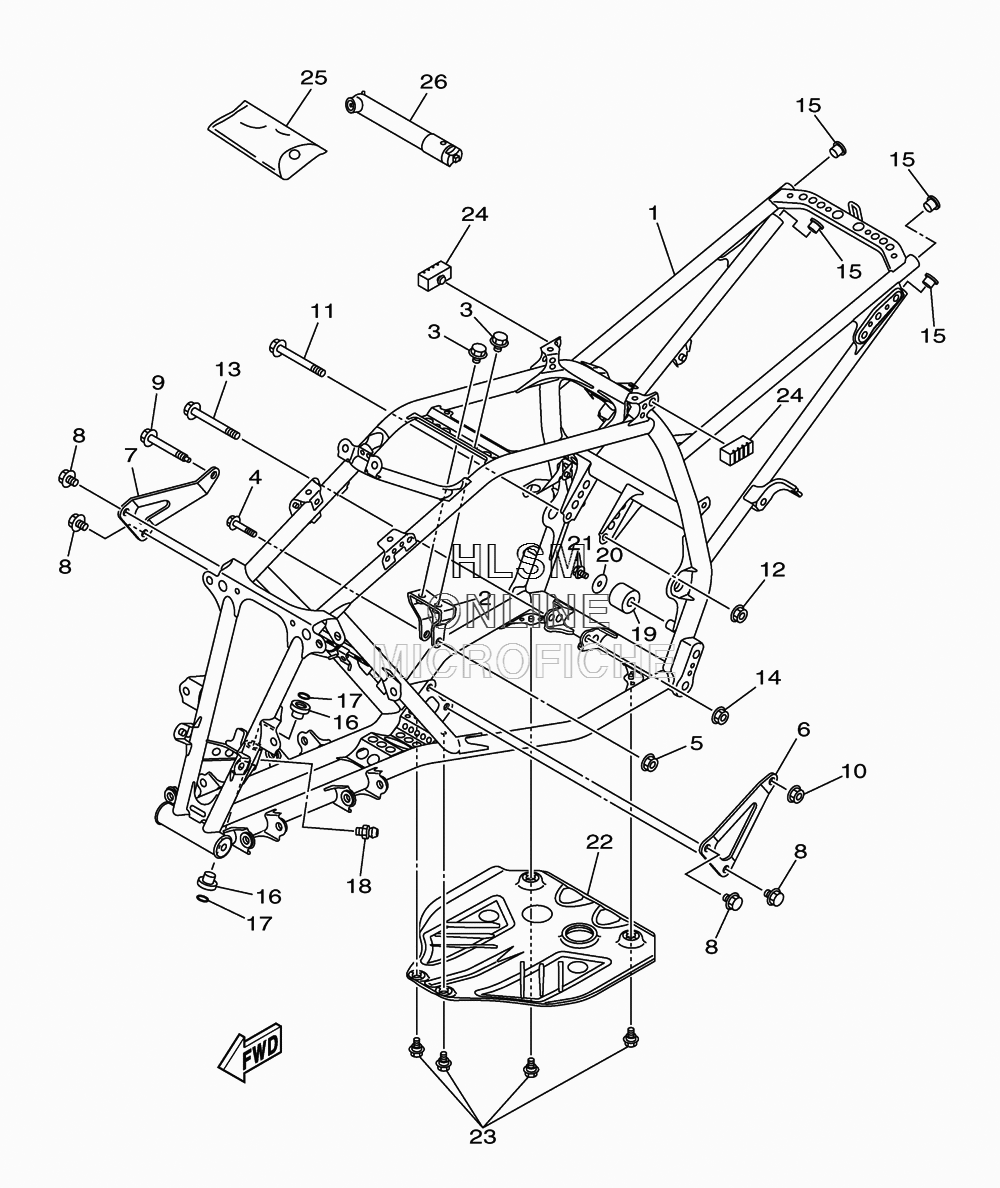

FRAME для Yamaha RAPTOR 125 - 2013 года выпуска
-
№АртикулНазвание
-
12PA-21110-00-00 FRAME COMP.FRAME COMP.
-
22PA-21315-00-00 STAY, ENGINE 2STAY, ENGINE 2
-
395812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
490105-08089-00 BOLT, FLANGEBOLT, FLANGE
-
595602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
62PA-21316-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
72PA-21317-00-00 STAY, ENGINE 3STAY, ENGINE 3
-
895812-08014-00 BOLT, FLANGEBOLT, FLANGE
-
990105-08235-00 BOLT, FLANGEBOLT, FLANGE
-
1095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190105-08208-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390105-08208-00 BOLT, FLANGEBOLT, FLANGE
-
1495602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1590338-16148-00 PLUGPLUG
-
1690381-15040-00 BUSH, SOLIDBUSH, SOLID
-
1793210-15414-00 O-RINGO-RING
-
1893700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
194D3-22178-00-00 TENSIONERTENSIONER
-
2090201-08054-00 WASHER, PLATEWASHER, PLATE
-
2195822-08012-00 BOLT, FLANGEBOLT, FLANGE
-
224D3-21471-00-00 PROTECTOR, ENGINEPROTECTOR, ENGINE
-
2390109-06172-00 BOLTBOLT
-
243C3-24741-00-00 PAD, SEATPAD, SEAT
-
252PA-28100-00-00 TOOL KITTOOL KIT
-
261NV-2811A-01-00 GAUGE, AIRGAUGE, AIR
