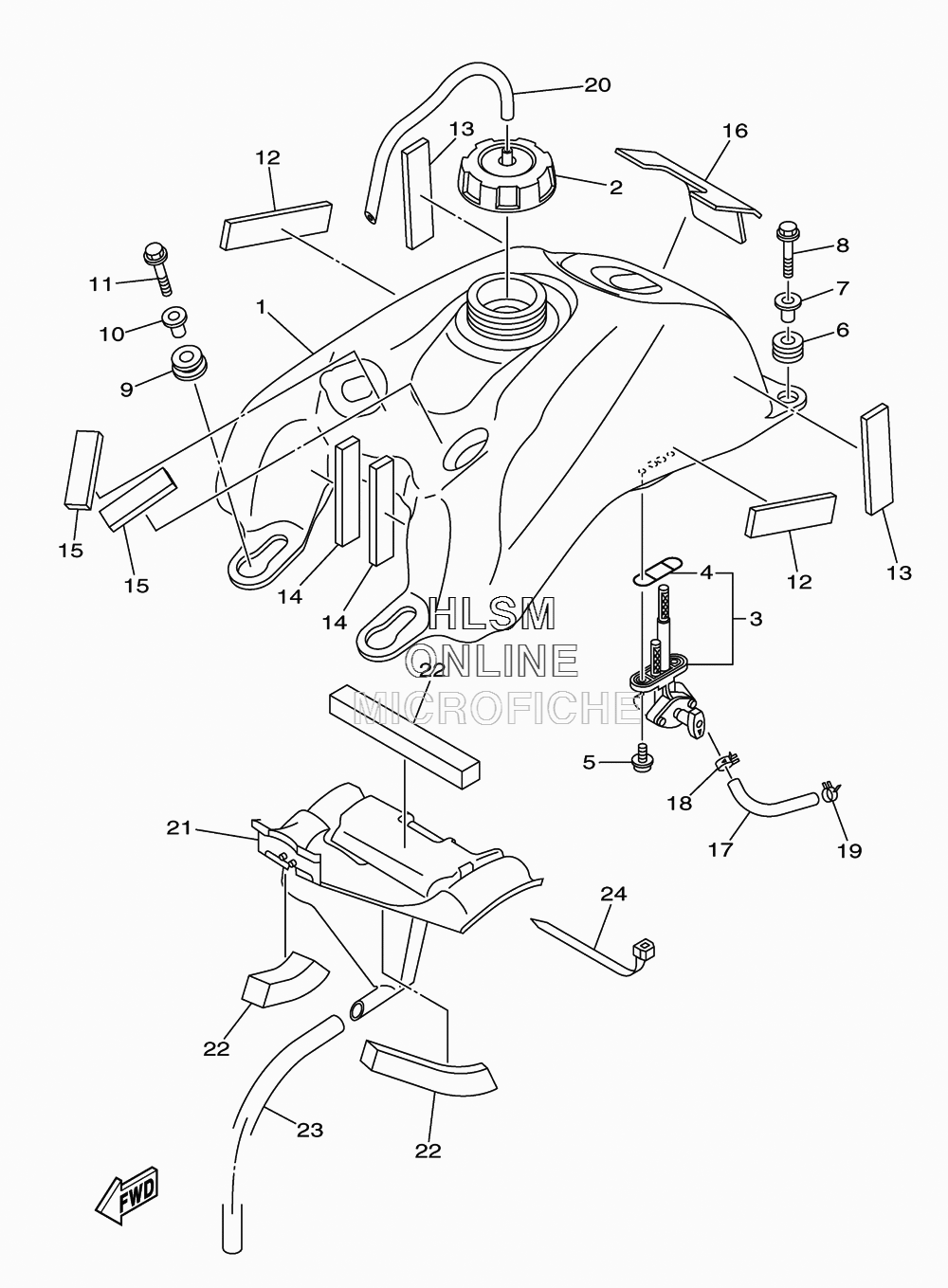

FUEL TANK для Yamaha RAPTOR 125 - 2013 года выпуска
-
№АртикулНазвание
-
14D3-24110-10-00 FUEL TANK COMP.FUEL TANK COMP.
-
25KM-24610-00-00 CAP ASSYCAP ASSY
-
34D3-24500-10-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
41P6-24512-10-00 ...GASKET...GASKET
-
590149-06108-00 SCREWSCREW
-
690480-18290-00 GROMMETGROMMET
-
790387-066J1-00 COLLARCOLLAR
-
895802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
990480-18004-00 GROMMETGROMMET
-
1090387-066J1-00 COLLARCOLLAR
-
1195802-06025-00 BOLT, FLANGEBOLT, FLANGE
-
122PA-21541-00-00 DAMPER 1DAMPER 1
-
132PA-21541-00-00 DAMPER 1DAMPER 1
-
144D3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
154D3-24181-00-00 DAMPER, LOCATING 1DAMPER, LOCATING 1
-
164D3-21541-00-00 DAMPER 1DAMPER 1
-
1790445-11050-00 HOSE (L105)HOSE (L105)
-
1890467-09037-00 CLIPCLIP
-
1990467-100A2-00 CLIPCLIP
-
2090445-08376-00 HOSE (L330)HOSE (L330)
-
214D3-2414H-00-00 DAMPER, PLATE 1DAMPER, PLATE 1
-
224D3-24182-01-00 DAMPER, LOCATING 2DAMPER, LOCATING 2
-
2390445-16007-00 HOSE (L400)HOSE (L400)
-
2490464-15195-00 CLAMPCLAMP
