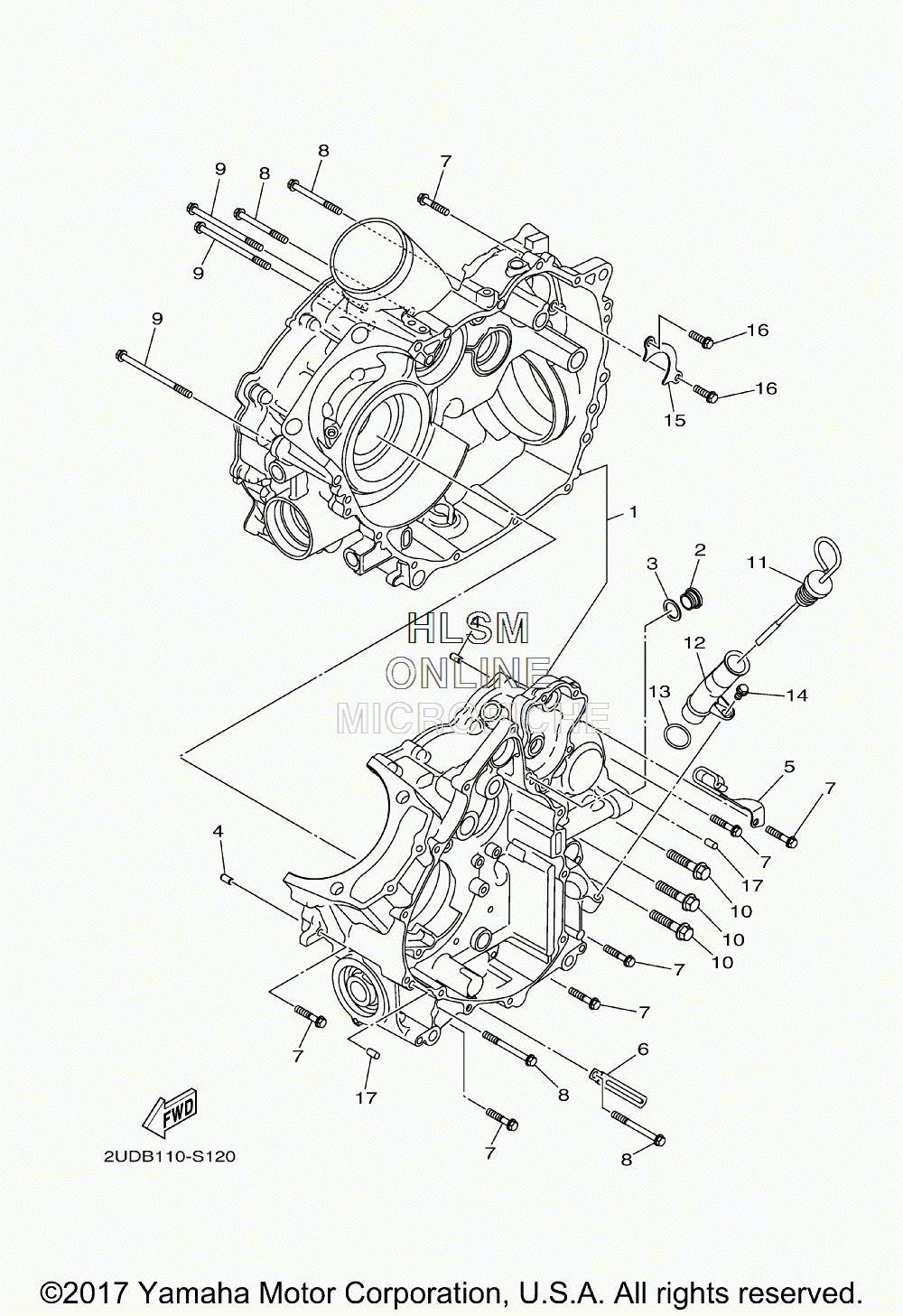

CRANKCASE для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
12MB-E5100-01-00 CRANKCASE ASSYCRANKCASE ASSY
-
22MB-E5167-00-00 PLUG, BLIND 1PLUG, BLIND 1
-
32MB-E5175-00-00 GASKET, BLIND PLUG 1GASKET, BLIND PLUG 1
-
42MB-E5184-00-00 PIN, DOWELPIN, DOWEL
-
52UD-E546C-00-00 HOLDERHOLDER
-
6B16-E5484-00-00 CLAMP 2CLAMP 2
-
72MB-E5481-50-00 BOLT 1BOLT 1
-
82MB-E5481-C0-00 BOLT 1BOLT 1
-
92MB-E5481-90-00 BOLT 1BOLT 1
-
102MB-E2623-00-00 BOLTBOLT
-
11B16-E5362-00-00 PLUG, OIL LEVELPLUG, OIL LEVEL
-
12B16-E5112-00-00 PIPE, OILPIPE, OIL
-
132MB-E2439-00-00 O-RINGO-RING
-
142MB-E5481-60-00 BOLT 1BOLT 1
-
152MB-E5388-00-00 PLATE, BEARING COVERPLATE, BEARING COVER
-
162MB-E5481-10-00 BOLT 1BOLT 1
-
172MB-E5184-00-00 PIN, DOWELPIN, DOWEL
