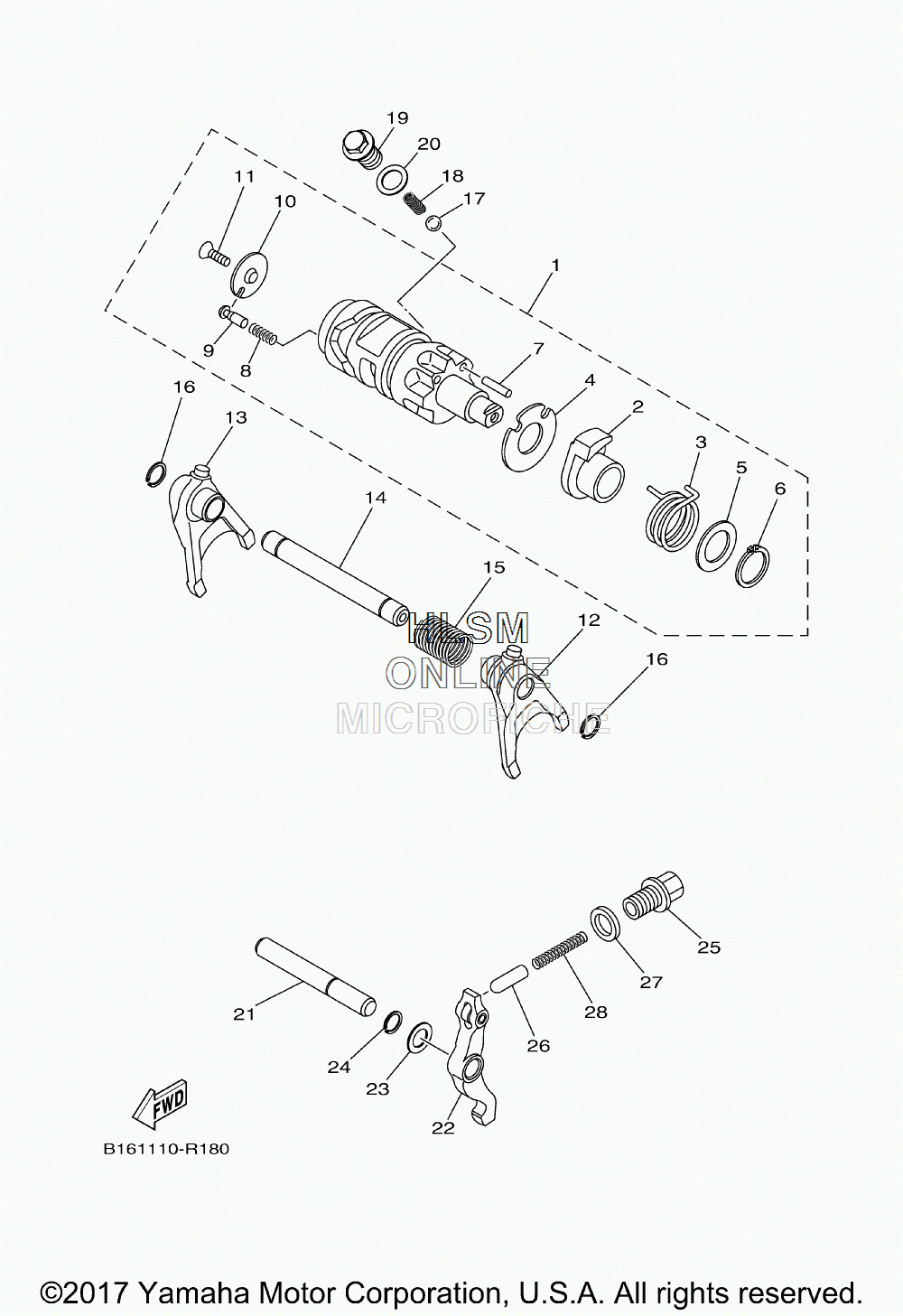

SHIFT CAM W/ FORK для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
1B16-E8540-00-00 SHIFT CAM ASSYSHIFT CAM ASSY
-
2B16-E8171-00-00 ...CAM, LEVER...CAM, LEVER
-
3B16-E8124-00-00 ...SPRING, SHAFT RETURN...SPRING, SHAFT RETURN
-
4B16-E8331-00-00 ...PLATE, SHIFT CAM...PLATE, SHIFT CAM
-
5B16-E8435-00-00 ...SPACER, CAM SHAFT...SPACER, CAM SHAFT
-
6B16-E8135-00-00 ...CLIP, SHIFT SHAFT...CLIP, SHIFT SHAFT
-
7B16-E8126-00-00 ...PIN, LEVER...PIN, LEVER
-
82MB-E8222-00-00 ...SPRING 2...SPRING 2
-
92MB-E8542-00-00 ...POINT, NEUTRAL...POINT, NEUTRAL
-
102MB-E8566-00-00 ...PLATE, SIDE 2...PLATE, SIDE 2
-
112MB-E8563-00-00 ...SCREW, STOPPER PLATE...SCREW, STOPPER PLATE
-
122MB-E8511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
13B16-E8512-00-00 FORK, SHIFT 2FORK, SHIFT 2
-
14B16-E8531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
152MB-E8123-00-00 SPRINGSPRING
-
162MB-E5597-00-00 CIRCLIP 2CIRCLIP 2
-
172MB-E8218-00-00 BALLBALL
-
182MB-E8143-00-00 SPRINGSPRING
-
192MB-E8119-00-00 BOLT, SHIFTBOLT, SHIFT
-
202MB-E8363-00-00 GASKETGASKET
-
21B16-E8318-00-00 SHAFT, SHIFTERSHAFT, SHIFTER
-
22B16-E8140-00-00 STOPPER LEVER ASSYSTOPPER LEVER ASSY
-
23B16-E8139-00-00 WASHER, LOCKWASHER, LOCK
-
242MB-E5597-00-00 CIRCLIP 2CIRCLIP 2
-
25B16-E8177-00-00 BOLT, STOPPERBOLT, STOPPER
-
26B16-E8547-00-00 STOPPER, CAMSTOPPER, CAM
-
272MB-E8363-00-00 GASKETGASKET
-
28B16-E8221-00-00 SPRING,1SPRING,1
