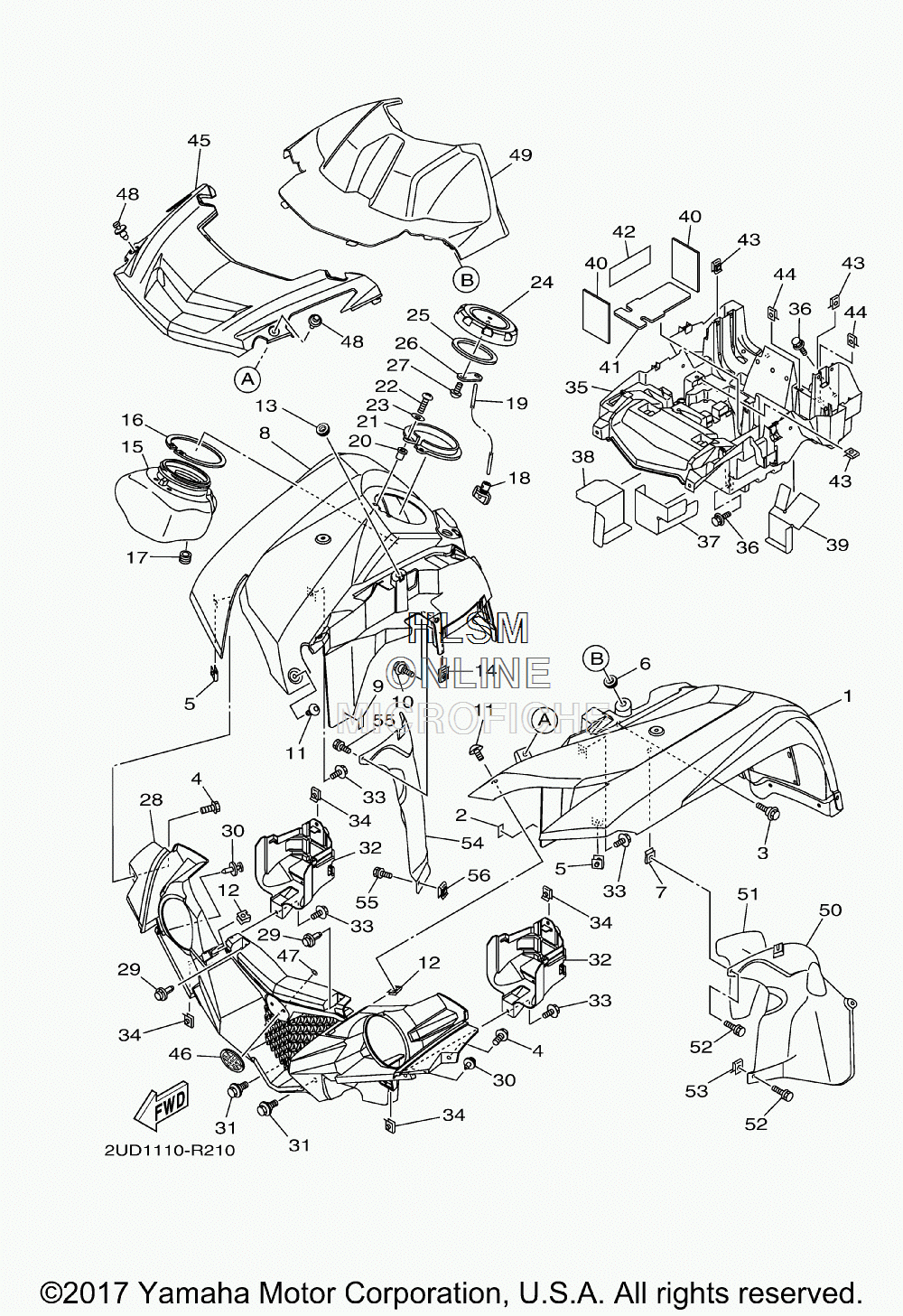

FENDER - FRONT для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
12UD-F1500-70-00 FRONT FENDER ASSYFRONT FENDER ASSY
-
23B4-21541-00-00 DAMPER 1DAMPER 1
-
390109-06043-00 BOLTBOLT
-
490119-06159-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
590183-06053-00 NUT, SPRINGNUT, SPRING
-
690480-13398-00 GROMMETGROMMET
-
790183-06053-00 NUT, SPRINGNUT, SPRING
-
82UD-F1501-00-00 FRONT FENDER COMP.FRONT FENDER COMP.
-
93B4-21541-00-00 DAMPER 1DAMPER 1
-
1090109-06043-00 BOLTBOLT
-
1190111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1290183-06053-00 NUT, SPRINGNUT, SPRING
-
1390480-13398-00 GROMMETGROMMET
-
1490183-06053-00 NUT, SPRINGNUT, SPRING
-
151HP-F838K-00-00 BOX 1BOX 1
-
163B4-2838M-00-00 SEAL, BOX 1SEAL, BOX 1
-
1790480-13004-00 GROMMETGROMMET
-
183B4-215A1-00-00 PLUG, DRAINPLUG, DRAIN
-
193B4-2845L-00-00 STOPPER, OPENSTOPPER, OPEN
-
2090179-05523-00 NUTNUT
-
213B4-2839N-00-00 HOLDERHOLDER
-
2298502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392902-05600-00 WASHER, PLATEWASHER, PLATE
-
241HP-F151B-00-00 CAPCAP
-
253B4-28307-00-00 SEALSEAL
-
263B4-28487-00-00 PLATE 2PLATE 2
-
2790164-05800-00 SCREW, TAPPINGSCREW, TAPPING
-
282UD-F8309-00-00 GRILLE, FRONTGRILLE, FRONT
-
2990269-07010-00 RIVETRIVET
-
3090269-06081-00 RIVETRIVET
-
3190109-06043-00 BOLTBOLT
-
322UD-F838E-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
3390119-05193-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3490183-051A0-00 NUT, SPRINGNUT, SPRING
-
351HP-H212B-01-00 BOX, BATTERY 1BOX, BATTERY 1
-
3690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
371HP-H253E-00-00 INSULATOR 1INSULATOR 1
-
381HP-H253F-00-00 INSULATOR 2INSULATOR 2
-
391HP-H254E-00-00 INSULATORINSULATOR
-
403B4-8233W-10-00 INSU.INSU.
-
413B4-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
421HP-H2176-00-00 DAMPERDAMPER
-
4390183-06053-00 NUT, SPRINGNUT, SPRING
-
4490183-05008-00 NUT, SPRINGNUT, SPRING
-
452UD-F330D-20-00 FRONT PANEL COMP.FRONT PANEL COMP.
-
462UD-F175B-00-00 TUNING FORK MARKTUNING FORK MARK
-
4790183-06071-00 NUT, SPRINGNUT, SPRING
-
4890269-07010-00 RIVETRIVET
-
49B31-F83V0-10-00 PANEL ACCESS. COMP.PANEL ACCESS. COMP.
-
501HP-F1552-00-00 FENDER, INNERFENDER, INNER
-
511HP-F1575-00-00 SEAL 1SEAL 1
-
5290119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5390183-06053-00 NUT, SPRINGNUT, SPRING
-
541HP-F1553-00-00 FENDER, INNER 2FENDER, INNER 2
-
5590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
5690183-06053-00 NUT, SPRINGNUT, SPRING
