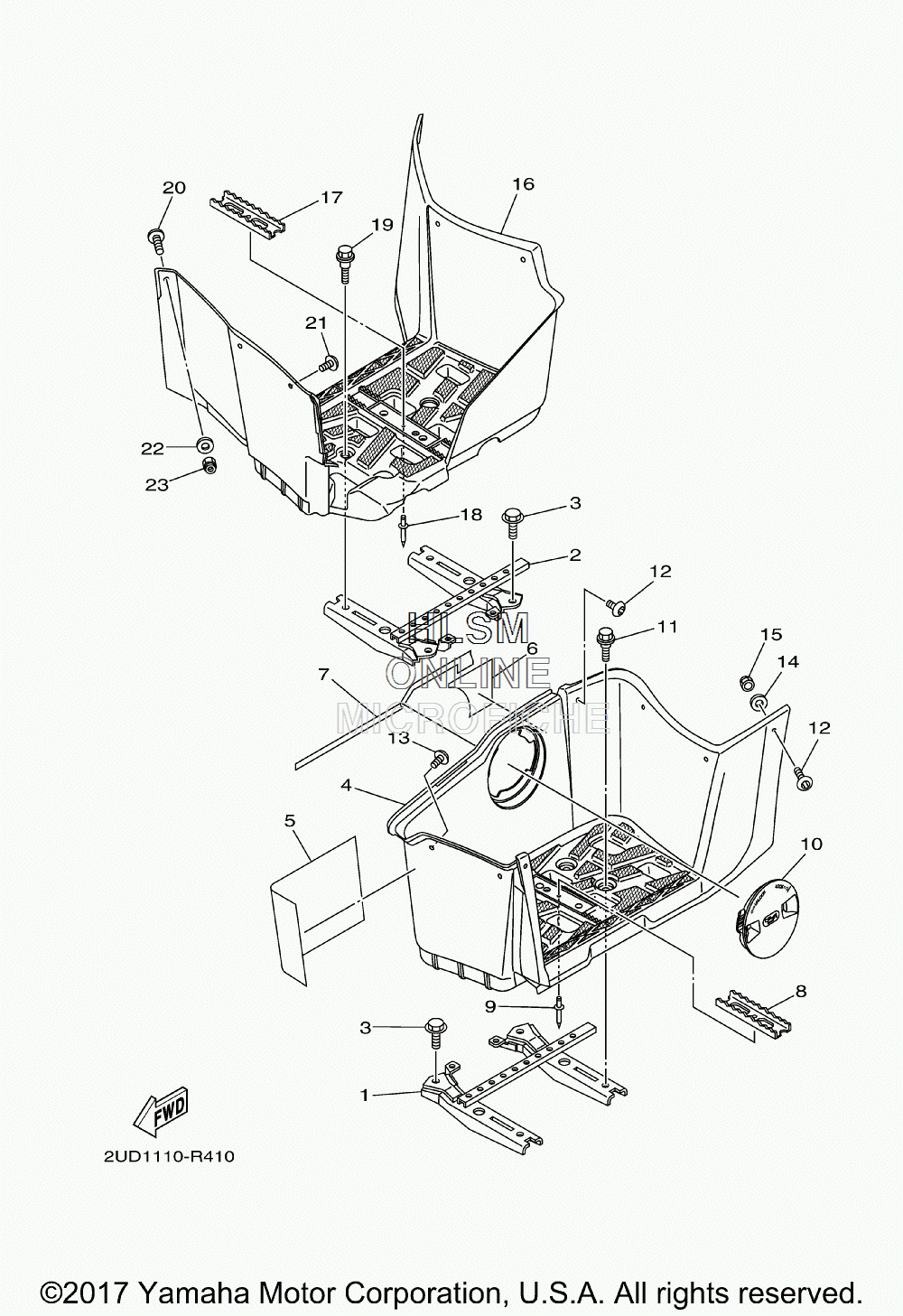

FOOTREST W/ BRAKE PEDAL для Yamaha GRIZZLY EPS 4WD HUNTER - 2018 года выпуска
-
№АртикулНазвание
-
11HP-F7452-00-00 BRACKET, FOOTREST 1BRACKET, FOOTREST 1
-
21HP-F7462-00-00 BRACKET, FOOTREST 2BRACKET, FOOTREST 2
-
395812-08012-00 BOLT, FLANGEBOLT, FLANGE
-
41HP-F7453-00-00 COVER 1COVER 1
-
53B4-21732-00-00 SEAL 1SEAL 1
-
61HP-F2875-00-00 SEAL 3SEAL 3
-
72BG-F2874-00-00 SEAL 2SEAL 2
-
85UH-F741A-10-00 ARM 1ARM 1
-
990267-489U9-00 RIVET, BLINDRIVET, BLIND
-
101HP-F8239-00-00 COVER 3COVER 3
-
1190109-06043-00 BOLTBOLT
-
1290111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1390111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
1490201-06078-00 WASHER, PLATEWASHER, PLATE
-
1595702-06300-00 NUT, NYLONNUT, NYLON
-
161HP-F7463-00-00 COVER 2COVER 2
-
175UH-F741A-10-00 ARM 1ARM 1
-
1890267-489U9-00 RIVET, BLINDRIVET, BLIND
-
1990109-06043-00 BOLTBOLT
-
2090111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2190111-06137-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
2290201-06078-00 WASHER, PLATEWASHER, PLATE
-
2395702-06300-00 NUT, NYLONNUT, NYLON
