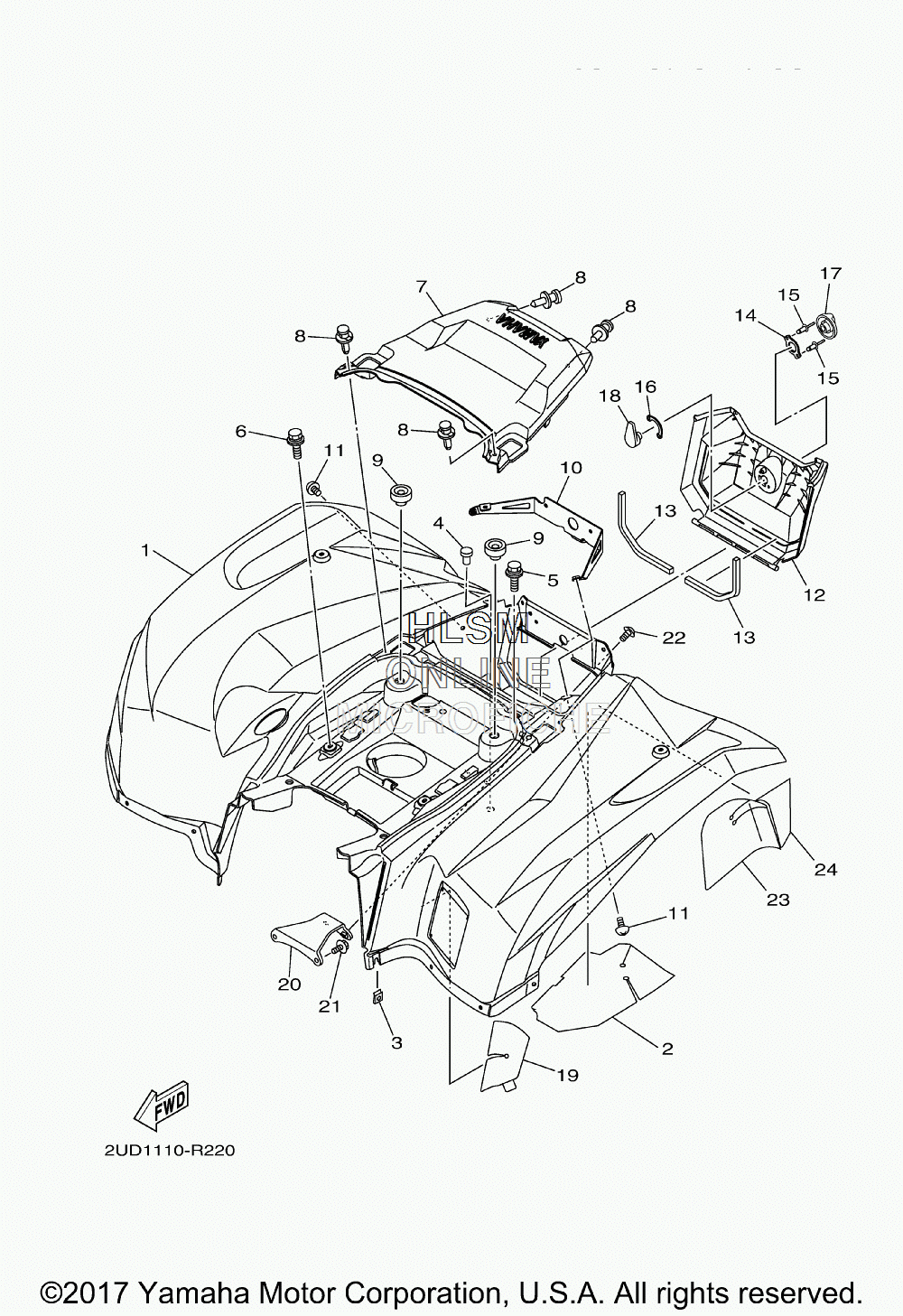

FENDER - REAR для Yamaha GRIZZLY EPS 4WD SE - 2018 года выпуска
-
№АртикулНазвание
-
1B1A-F1600-00-00 REAR FENDER ASSYREAR FENDER ASSY
-
22UD-21652-00-00 PROTECTORPROTECTOR
-
390183-06053-00 NUT, SPRINGNUT, SPRING
-
490605-502U1-00 PLUG, BLINDPLUG, BLIND
-
590119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
690119-06152-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
72UD-F1651-00-00 COVER, REAR FENDERCOVER, REAR FENDER
-
890269-07010-00 RIVETRIVET
-
990480-16807-00 GROMMETGROMMET
-
102UD-F139T-00-00 BRACKET, COVERBRACKET, COVER
-
1190154-05021-00 SCREW, BINDINGSCREW, BINDING
-
122UD-F160F-00-00 LIDLID
-
132UD-F16A2-00-00 SEAL, 2SEAL, 2
-
141XD-F1515-00-00 WASHER, SPECIALWASHER, SPECIAL
-
1590267-24143-00 RIVET, BLINDRIVET, BLIND
-
161XD-F1516-00-00 WASHER, SPECIAL 2WASHER, SPECIAL 2
-
171XD-2837G-00-00 LOCK 1LOCK 1
-
181XD-2837H-00-00 LOCK 2LOCK 2
-
19B16-F1669-01-00 SEALSEAL
-
202UD-F1613-00-00 STAY, FENDER 1STAY, FENDER 1
-
2195812-06010-00 BOLT, FLANGEBOLT, FLANGE
-
2290111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
232UD-216A3-00-00 SEAL, 3SEAL, 3
-
242UD-216A4-00-00 SEAL, 4SEAL, 4
