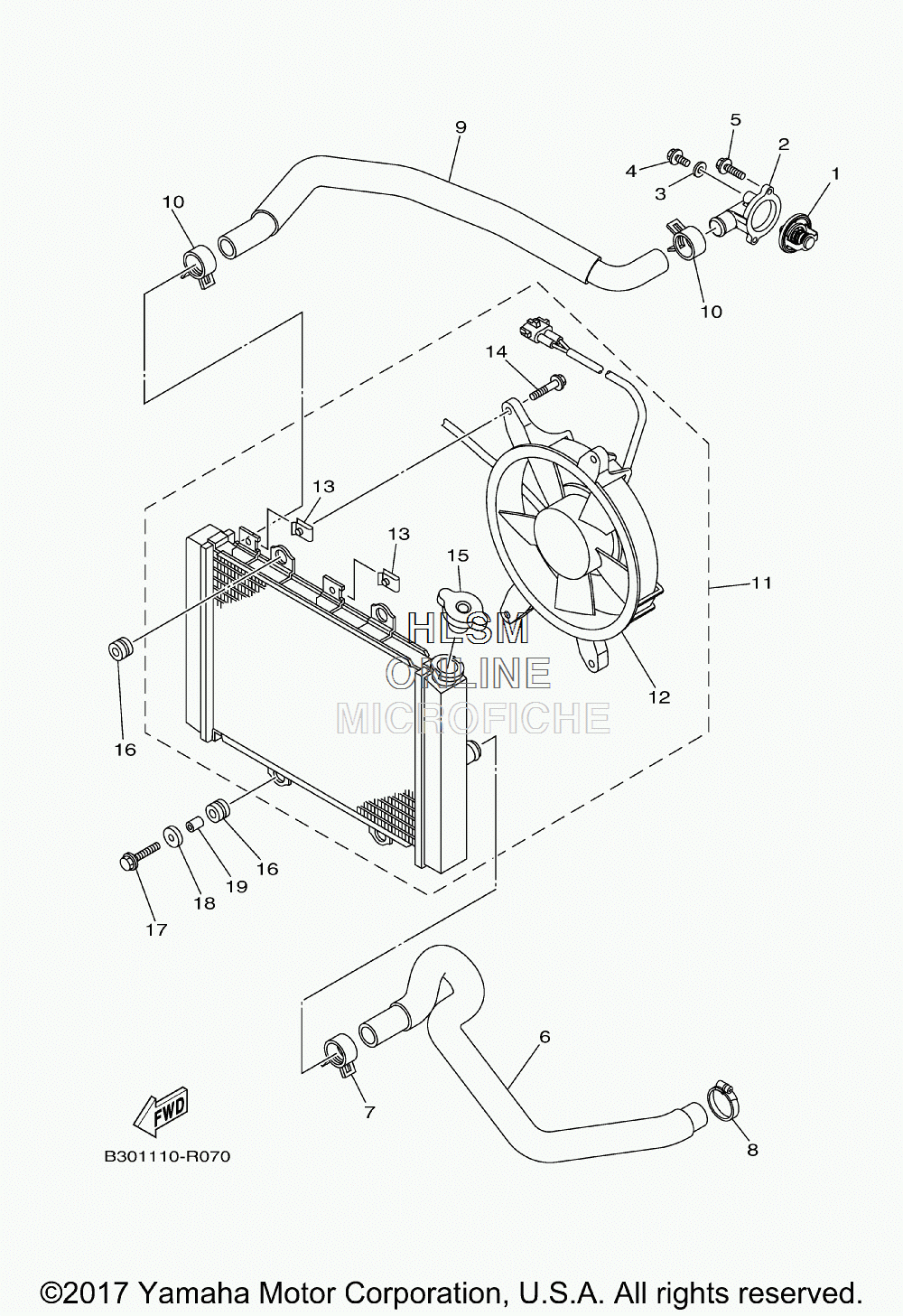

RADIATOR ASSY для Yamaha GRIZZLY EPS 4WD SE - 2018 года выпуска
-
№АртикулНазвание
-
12MB-E2411-00-00 THERMOSTATTHERMOSTAT
-
2B16-E2413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
32MB-E2435-00-00 GASKETGASKET
-
42MB-E5481-60-00 BOLT 1BOLT 1
-
52MB-E5481-10-00 BOLT 1BOLT 1
-
6B16-E2576-00-00 HOSE 1HOSE 1
-
790467-26189-00 CLIPCLIP
-
890450-32015-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
9B16-E2578-00-00 HOSE 3HOSE 3
-
1090467-26189-00 CLIPCLIP
-
11B16-E2460-00-00 RADIATOR ASSYRADIATOR ASSY
-
12B16-E2405-00-00 ...BLOWER ASSY...BLOWER ASSY
-
131HP-E2535-00-00 ...NUT SPRING...NUT SPRING
-
141HP-E2675-00-00 ...BOLT, BLOWER HOLDING...BOLT, BLOWER HOLDING
-
151XD-E2462-00-00 ...CAP, RADIATOR...CAP, RADIATOR
-
1690480-15235-00 GROMMETGROMMET
-
1795812-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1890209-06012-00 WASHERWASHER
-
1990387-06113-00 COLLARCOLLAR
