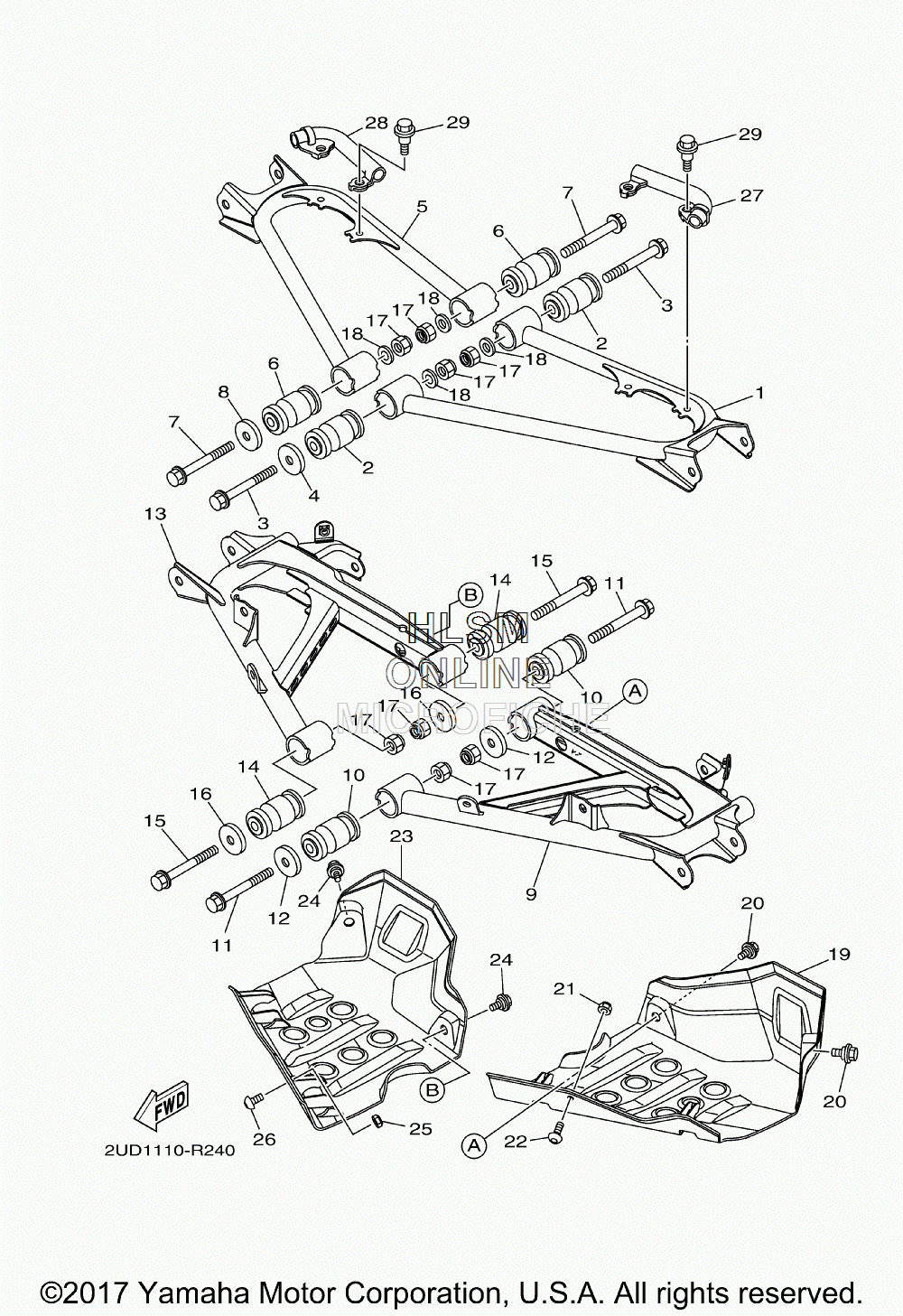

SUSPENSION - REAR ARM для Yamaha GRIZZLY EPS 4WD SE - 2018 года выпуска
-
№АртикулНазвание
-
12BG-F2171-00-00 ARM, REAR 1ARM, REAR 1
-
21HP-F3526-00-00 BUSHBUSH
-
390105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
45KM-22149-10-00 WASHERWASHER
-
52BG-F2172-00-00 ARM, REAR 2ARM, REAR 2
-
61HP-F3526-00-00 BUSHBUSH
-
790105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
85KM-22149-10-00 WASHERWASHER
-
92BG-F217M-01-00 ARM 1ARM 1
-
101HP-F3526-00-00 BUSHBUSH
-
1190105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
125KM-22149-10-00 WASHERWASHER
-
132BG-F217N-01-00 ARM 2ARM 2
-
141HP-F3526-00-00 BUSHBUSH
-
1590105-10011-00 BOLT, FLANGEBOLT, FLANGE
-
165KM-22149-10-00 WASHERWASHER
-
1790185-10012-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890201-10035-00 WASHER, PLATEWASHER, PLATE
-
192BG-F2128-01-00 COVER, THRUST 1COVER, THRUST 1
-
2090109-06264-00 BOLTBOLT
-
2195702-06300-00 NUT, NYLONNUT, NYLON
-
2290111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
232BG-F2129-01-00 COVER, THRUST 2COVER, THRUST 2
-
2490109-06264-00 BOLTBOLT
-
2595702-06300-00 NUT, NYLONNUT, NYLON
-
2690111-06814-00 BOLT,HEX. SOCKET BUTTONBOLT,HEX. SOCKET BUTTON
-
271HP-F315H-00-00 PROTECTOR 1PROTECTOR 1
-
281HP-F315J-00-00 PROTECTOR 2PROTECTOR 2
-
2990109-06840-00 BOLTBOLT
