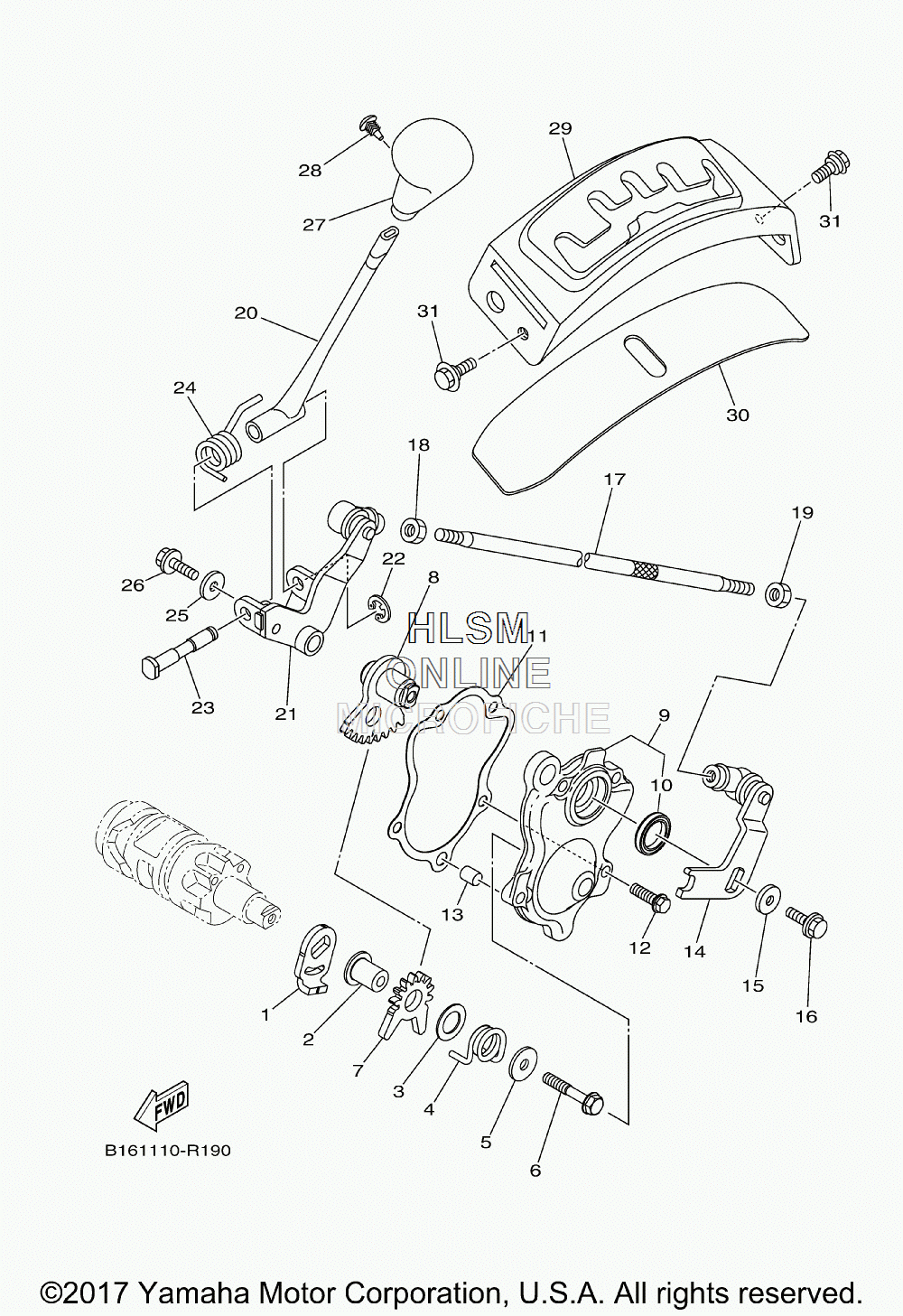

SHIFT SHAFT для Yamaha GRIZZLY EPS 4WD SE - 2018 года выпуска
-
№АртикулНазвание
-
1B16-E8198-00-00 LEVERLEVER
-
22MB-E8413-00-00 COLLAR, SHIFTERCOLLAR, SHIFTER
-
32MB-E8137-00-00 WASHER 1WASHER 1
-
4B16-E8183-00-00 SPRINGSPRING
-
52MB-E8138-00-00 WASHER 2WASHER 2
-
62MB-E5482-20-00 BOLT 2BOLT 2
-
72MB-E8191-00-00 LEVERLEVER
-
8B16-E8103-00-00 SHIFT SHAFT COMP.SHIFT SHAFT COMP.
-
9B16-E8380-00-00 SHIFTER BRKT. ASSYSHIFTER BRKT. ASSY
-
10B16-E76G3-00-00 ...OIL SEAL 2...OIL SEAL 2
-
112MB-E8146-00-00 GASKETGASKET
-
122MB-E5481-10-00 BOLT 1BOLT 1
-
132MB-E8438-00-00 PIN, DOWELPIN, DOWEL
-
1428P-18104-00-00 SHIFT GUIDE COMP.SHIFT GUIDE COMP.
-
1590201-06036-00 WASHER, PLATEWASHER, PLATE
-
1690105-06176-00 BOLT, FLANGEBOLT, FLANGE
-
17B16-18115-00-00 ROD, SHIFTROD, SHIFT
-
1890170-06228-00 NUT (COUNTER CLOCKWISE)NUT (COUNTER CLOCKWISE)
-
1995312-06700-00 NUTNUT
-
201HP-E8190-01-00 LEVER COMP. 1LEVER COMP. 1
-
211HP-E8169-00-00 ARM, SHIFT 2ARM, SHIFT 2
-
2299002-06600-00 CIRCLIPCIRCLIP
-
231HP-E8125-00-00 SHAFT, SHIFTSHAFT, SHIFT
-
241HP-E8196-00-00 SPRING, RETURNSPRING, RETURN
-
2590201-06036-00 WASHER, PLATEWASHER, PLATE
-
2695812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
2728P-18174-00-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
2890269-05055-00 RIVETRIVET
-
291HP-E8172-00-00 GUIDE, SHIFTGUIDE, SHIFT
-
301HP-E8154-00-00 COVER, DUSTCOVER, DUST
-
3190109-06043-00 BOLTBOLT
