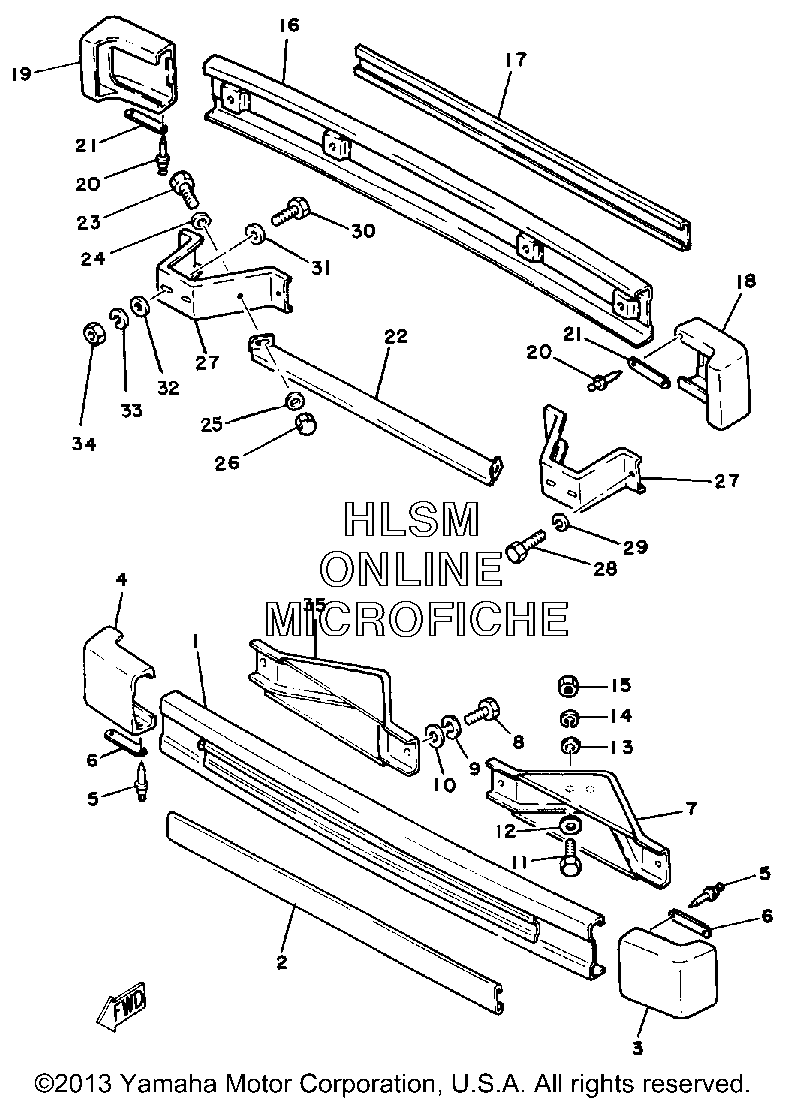

BUMPER для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска
-
№АртикулНазвание
-
1J17-78106-00-00 BUMPER SUB ASSEMBLY, FRONTBUMPER SUB ASSEMBLY, FRONT
-
2J17-78162-00-00 PAD, FRONT BUMPERPAD, FRONT BUMPER
-
3J10-78168-01-00 BUMPER, RUBBER 2BUMPER, RUBBER 2
-
4J10-78167-01-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
590267-40077-00 RIVET, BLINDRIVET, BLIND
-
6J17-77525-00-00 WASHER 1WASHER 1
-
7J42-78164-00-00 STAY, FRONT BUMPER 1 (J17-78165-00-00)STAY, FRONT BUMPER 1 (J17-78165-00-00)
-
897313-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1092901-08600-00 WASHERWASHER
-
1197013-08025-00 BOLTBOLT
-
1292901-08600-00 WASHERWASHER
-
1390201-085E6-00 WASHER PLATEWASHER PLATE
-
1492990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1595333-08600-00 NUTNUT
-
16J17-78107-00-00 BUMPER SUB-ASSEMBLY, REARBUMPER SUB-ASSEMBLY, REAR
-
17J17-78162-00-00 PAD, FRONT BUMPERPAD, FRONT BUMPER
-
18J10-78167-01-00 BUMPER, RUBBER 1BUMPER, RUBBER 1
-
19J10-78168-01-00 BUMPER, RUBBER 2BUMPER, RUBBER 2
-
2090267-40077-00 RIVET, BLINDRIVET, BLIND
-
21J17-77525-00-00 WASHER 1WASHER 1
-
22J10-78179-00-00 PLATE, EXTENSIONPLATE, EXTENSION
-
2397011-08016-00 BOLTBOLT
-
2492901-08600-00 WASHERWASHER
-
2592990-08200-00 WASHER, PLAINWASHER, PLAIN
-
2695303-08800-00 NUT (CROWN)NUT (CROWN)
-
27J42-78174-00-00 STAY, REAR BUMPER (J10-78174-01-00)STAY, REAR BUMPER (J10-78174-01-00)
-
2897313-08016-00 BOLT, HEXAGONBOLT, HEXAGON
-
2992990-08100-00 WASHER, SPRINGWASHER, SPRING
-
3097313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
3192901-08600-00 WASHERWASHER
-
3292990-08200-00 WASHER, PLAINWASHER, PLAIN
-
3392990-08100-00 WASHER, SPRINGWASHER, SPRING
-
3495333-08600-00 NUTNUT
-
35J42-78165-00-00 STAY, FRONT BUMPER 2 (J17-78165-00-00)STAY, FRONT BUMPER 2 (J17-78165-00-00)
