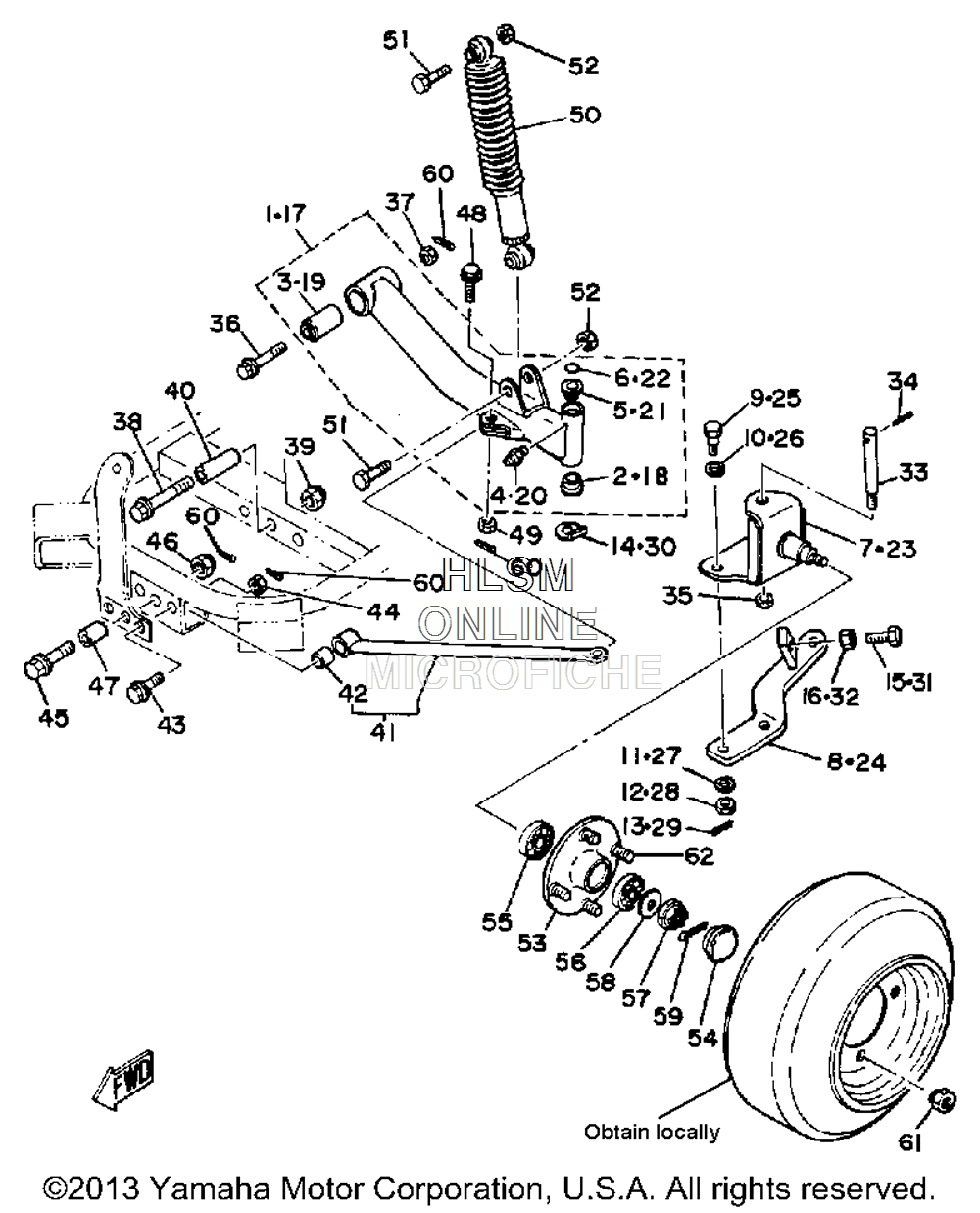

SUSPENSION - FRONT WHEEL для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска
-
№АртикулНазвание
-
1J42-W2351-00-00 FRONT LOWER ARM COMP. (L.H)FRONT LOWER ARM COMP. (L.H)
-
290381-15032-00 ...BUSH, SOLID...BUSH, SOLID
-
3J10-23526-00-00 ...BUSH...BUSH
-
493700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
590381-15040-00 ...BUSH, SOLID...BUSH, SOLID
-
693210-15566-00 ...O-RING...O-RING
-
7J17-23510-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
8J11-23512-00-00 ARM, KNUCKLE 1ARM, KNUCKLE 1
-
990109-10643-00 BOLTBOLT
-
1090201-121F0-00 WASHER, PLATEWASHER, PLATE
-
1190201-105F2-00 WASHER, PLATEWASHER, PLATE
-
1290171-10035-00 NUT, CASTLENUT, CASTLE
-
1391490-25030-00 PIN. COTTERPIN. COTTER
-
1490214-16027-00 WASHER, CLAWWASHER, CLAW
-
1597313-08030-00 BOLTBOLT
-
1695303-08700-00 NUTNUT
-
17J42-W2352-00-00 FRONT LOWER ARM COMP (R.H)FRONT LOWER ARM COMP (R.H)
-
1890381-15032-00 ...BUSH, SOLID...BUSH, SOLID
-
19J10-23526-00-00 ...BUSH...BUSH
-
2093700-06M03-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
2190381-15040-00 ...BUSH, SOLID...BUSH, SOLID
-
2293210-15566-00 ...O-RING...O-RING
-
23J17-23510-00-00 KNUCKLE, STEERING 1KNUCKLE, STEERING 1
-
24J11-23522-00-00 ARM, KNUCKLE 2ARM, KNUCKLE 2
-
2590109-10643-00 BOLTBOLT
-
2690201-121F0-00 WASHER, PLATEWASHER, PLATE
-
2790201-105F2-00 WASHER, PLATEWASHER, PLATE
-
2890171-10035-00 NUT, CASTLENUT, CASTLE
-
2991490-25030-00 PIN. COTTERPIN. COTTER
-
3090214-16027-00 WASHER, CLAWWASHER, CLAW
-
3197313-08030-00 BOLTBOLT
-
3295303-08700-00 NUTNUT
-
33J10-23516-02-00 KING PIN, STEERING KNUCKLEKING PIN, STEERING KNUCKLE
-
3491401-30030-00 PIN, COTTERPIN, COTTER
-
3595712-12300-00 NUT, NYLONNUT, NYLON
-
3690105-10224-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3795601-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3895822-12085-00 BOLT, FLANGEBOLT, FLANGE
-
3995601-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4090387-137F7-00 COLLAR (NOT AVAILABLE)COLLAR (NOT AVAILABLE)
-
41J17-W2355-00-00 ROD, TENSIONROD, TENSION
-
42J10-23583-01-00 ...BUSH...BUSH
-
4390105-08225-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4495601-08200-00 NUT, UNUT, U
-
4590105-12226-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
4695601-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4790387-137F6-00 COLLARCOLLAR
-
4890102-12046-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
4995601-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
50J14-23350-00-00 SHOCK ABSORBER ASSEMBLYSHOCK ABSORBER ASSEMBLY
-
5197313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
5295612-10100-00 NUT, UNUT, U
-
53J17-W2511-00-00 HUB, FRONTHUB, FRONT
-
54J17-25118-00-00 COVER, HUB DUSTCOVER, HUB DUST
-
5593306-00511-00 BEARINGBEARING
-
5693306-20437-00 BEARINGBEARING
-
5795301-14900-00 NUT, SLOTTEDNUT, SLOTTED
-
5890209-14219-00 WASHER, SPECIAL SHAPEWASHER, SPECIAL SHAPE
-
5991401-30030-00 PIN, COTTERPIN, COTTER
-
6091490-25030-00 PIN. COTTERPIN. COTTER
-
6190179-12262-00 NUTNUT
-
6290114-12003-00 BOLT, RIBBED NECKBOLT, RIBBED NECK
