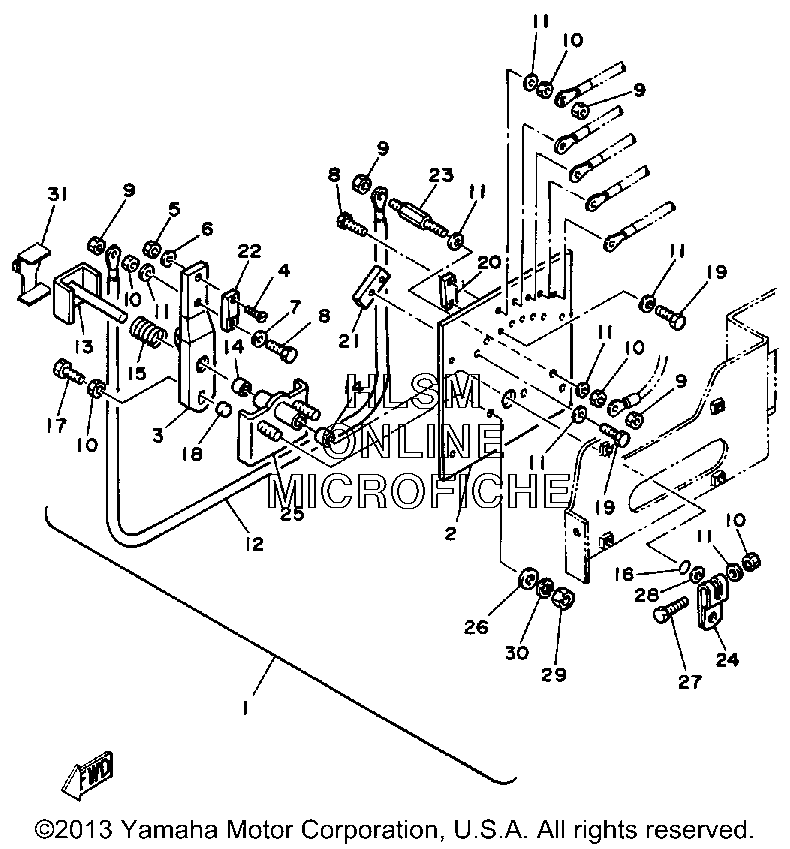

CONTROLLER 1 для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска
-
№АртикулНазвание
-
1J46-86140-00-00 CONTROLLER ASSY (J22-86140-00-00)CONTROLLER ASSY (J22-86140-00-00)
-
2J46-86142-00-00 ...BASE, PLATE...BASE, PLATE
-
3J22-86152-00-00 ...ARM, MOVING...ARM, MOVING
-
498701-04016-00 ...SCREW, FLAT HEAD (98702-04016-00)...SCREW, FLAT HEAD (98702-04016-00)
-
595301-04600-00 ...NUT...NUT
-
692902-04300-00 ...WASHER, IN. TOOTH...WASHER, IN. TOOTH
-
790201-063F3-00 ...WASHER, PLATE...WASHER, PLATE
-
890101-06469-00 ...BOLT...BOLT
-
995320-06600-00 ...NUT...NUT
-
1095380-06700-00 ...NUT...NUT
-
1192995-06100-00 ...WASHER, SPRING...WASHER, SPRING
-
12J22-86157-00-00 ...WIRE, LEAD...WIRE, LEAD
-
13J14-86155-01-00 ...SHAFT, CONTROLLER...SHAFT, CONTROLLER
-
1490380-10010-00 ...BUSH, SOLID...BUSH, SOLID
-
1590501-16573-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1693210-10166-00 ...O-RING...O-RING
-
1797023-06020-00 ...BOLT (3XF)...BOLT (3XF)
-
1890386-05111-00 ...BUSH, SPECIAL NYLON...BUSH, SPECIAL NYLON
-
1997013-06012-00 ...BOLT...BOLT
-
20J14-86162-00-00 ...CONTACT, STATE...CONTACT, STATE
-
21J14-82103-00-00 ...TERMINAL 1...TERMINAL 1
-
22J14-86153-00-00 ...CONTACT, MOVING...CONTACT, MOVING
-
23J22-82104-00-00 ...TERMINAL 2...TERMINAL 2
-
24J14-86144-01-00 ...LEVER, CONTROLLER...LEVER, CONTROLLER
-
25J14-86156-00-00 ...HOLDER, SHAFT...HOLDER, SHAFT
-
2690201-061A5-00 ...WASHER, PLATE...WASHER, PLATE
-
2797021-06030-00 ...BOLT...BOLT
-
2892990-10200-00 ...WASHER, PLAIN...WASHER, PLAIN
-
2990179-08288-00 ...NUT, SPECIAL SHAPE...NUT, SPECIAL SHAPE
-
3092990-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
31J22-86158-00-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
