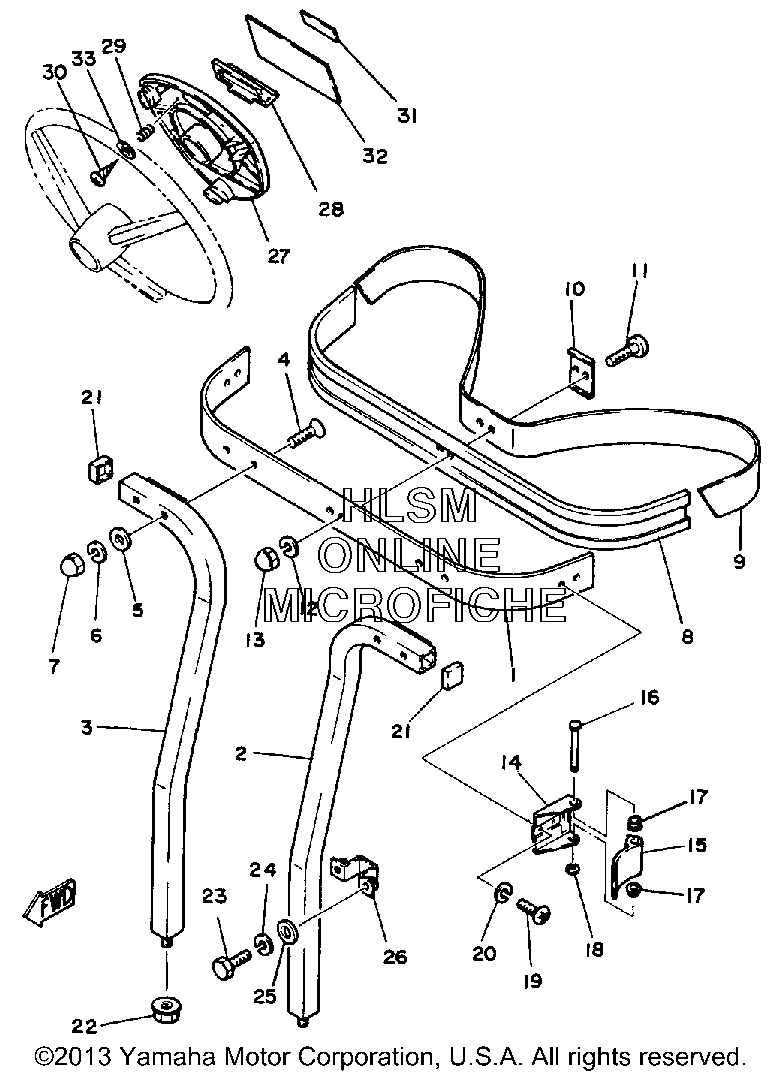

CARRIER для Yamaha GOLF CAR ELECTRIC [G1E3] (J22) - 1982 года выпуска
-
№АртикулНазвание
-
1J42-78351-00-00 SUPPORT, BAG UPPER (J10-78351-00-9E)SUPPORT, BAG UPPER (J10-78351-00-9E)
-
2J10-78352-00-00 SUPPORT, BAG LOWER 1 (J10-78352-00-9E)SUPPORT, BAG LOWER 1 (J10-78352-00-9E)
-
3J10-78353-00-00 SUPPORT, BAG LOWER 2 (J10-78353-00-9E)SUPPORT, BAG LOWER 2 (J10-78353-00-9E)
-
498701-08045-00 SCREW, FLAT HEAD (92701-08045-00)SCREW, FLAT HEAD (92701-08045-00)
-
590202-08022-00 WASHER, PLATEWASHER, PLATE
-
692990-08100-00 WASHER, SPRINGWASHER, SPRING
-
795380-08800-00 NUT, CROWNNUT, CROWN
-
8J10-78356-00-00 PAD, BAG SUPPORTPAD, BAG SUPPORT
-
9J10-78355-00-00 BANDBAND
-
10J10-78367-00-00 PLATE, ANCHORPLATE, ANCHOR
-
1198980-06016-00 SCREW, BINDSCREW, BIND
-
1292995-06100-00 WASHER, SPRINGWASHER, SPRING
-
1395380-06800-00 NUTNUT
-
14J17-78157-01-00 BASE, LOCKBASE, LOCK
-
15J17-78368-01-00 LEVER, LOCKLEVER, LOCK
-
16J17-78369-00-00 PIN, LEVERPIN, LEVER
-
1790386-06108-00 BUSHBUSH
-
1899080-05600-00 CIRCLIPCIRCLIP
-
1998580-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2092995-06100-00 WASHER, SPRINGWASHER, SPRING
-
21J10-78139-00-00 CAP, ENDCAP, END
-
2295601-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2397313-06065-00 BOLT, HEXAGONBOLT, HEXAGON
-
2492995-06100-00 WASHER, SPRINGWASHER, SPRING
-
2590201-061A5-00 WASHER, PLATEWASHER, PLATE
-
26J10-78366-01-00 CLAMP, SUPPORTCLAMP, SUPPORT
-
27J10-78357-01-00 HOLDER 1HOLDER 1
-
28J10-78358-00-00 HOLDER 2HOLDER 2
-
2990502-10013-00 SPRING, CONICALSPRING, CONICAL
-
3097780-50125-00 SCREW, TAPPINGSCREW, TAPPING
-
31J10-78292-00-00 EMBLEM 2EMBLEM 2
-
32J10-77762-01-00 LABEL, WARNING 2LABEL, WARNING 2
-
3392901-05600-00 WASHERWASHER
