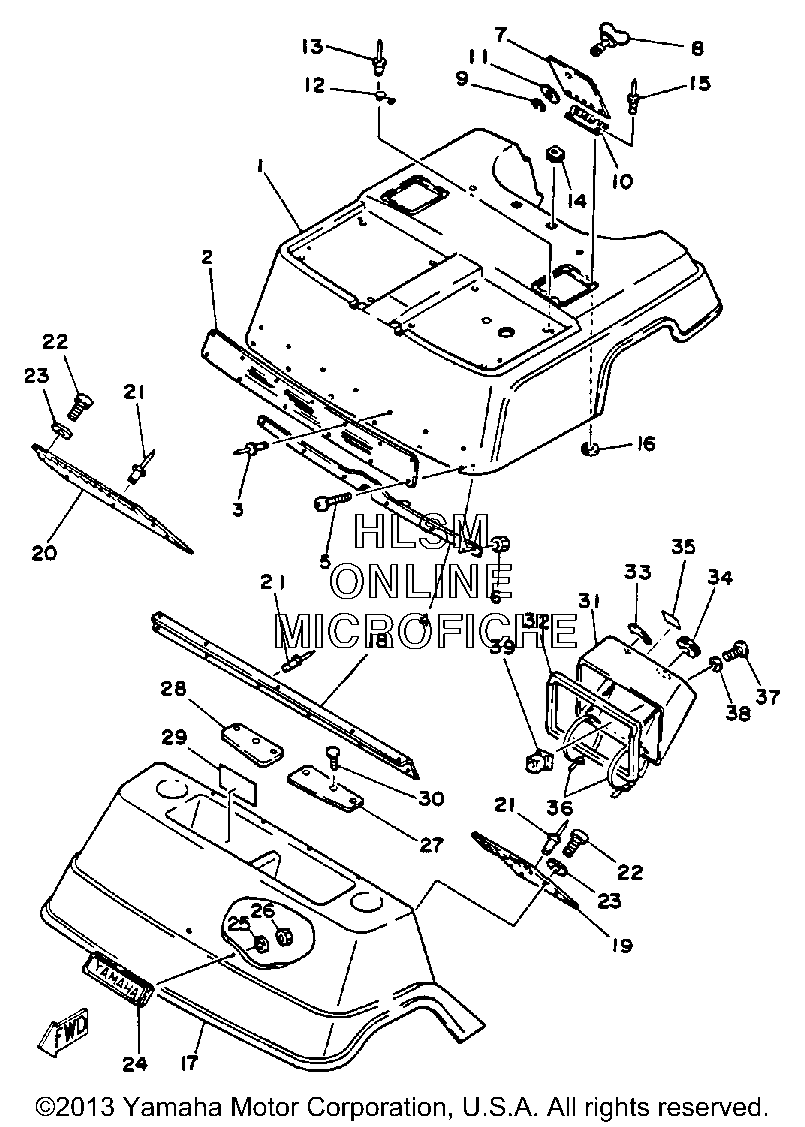

BODY для Yamaha GOLF CAR ELECTRIC [G1EM3] (J26) - 1983 года выпуска
-
№АртикулНазвание
-
1J24-W7811-00-00 PANEL, BODY SHELLPANEL, BODY SHELL
-
2J10-78119-00-00 PLATE 3PLATE 3
-
390267-40075-00 RIVET, BLINDRIVET, BLIND
-
4J17-78121-00-00 REINFORCEMENT 1REINFORCEMENT 1
-
598980-06016-00 SCREW, BINDSCREW, BIND
-
695601-06200-00 NUT, U-FLANGENUT, U-FLANGE
-
7J17-78272-00-00 COVER, FUEL INLETCOVER, FUEL INLET
-
8J10-78238-01-00 FASTENER, UPPERFASTENER, UPPER
-
999009-06600-00 CIRCLIPCIRCLIP
-
10J17-78275-00-00 HINGE, FUEL INLETHINGE, FUEL INLET
-
1190201-08100-00 WASHER, PLATEWASHER, PLATE
-
12J10-78239-00-00 FASTENER, LOWERFASTENER, LOWER
-
1390267-32019-00 RIVET, BLINDRIVET, BLIND
-
1490480-35242-00 GROMMETGROMMET
-
1590267-40075-00 RIVET, BLINDRIVET, BLIND
-
1690201-044H9-00 WASHER, PLATEWASHER, PLATE
-
17J17-78115-90-00 COWL, FRONTCOWL, FRONT
-
18J17-77165-00-00 TRIM 1TRIM 1
-
19J17-78232-00-00 MAT, MAIN FLOOR 2MAT, MAIN FLOOR 2
-
20J17-78233-00-00 MAT, MAIN FLOOR 3MAT, MAIN FLOOR 3
-
2190267-63047-00 RIVET, BLINDRIVET, BLIND
-
2290157-08028-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2390202-08134-00 WASHER, PLATEWASHER, PLATE
-
24J10-78291-00-00 EMBLEM 1EMBLEM 1
-
2592990-05200-00 WASHER, PLAINWASHER, PLAIN
-
2695701-05300-00 NUT, NYLONNUT, NYLON
-
27J17-77151-00-00 PAD 1PAD 1
-
28J17-77152-00-00 PAD 2PAD 2
-
29J10-77768-00-00 LABEL, WARNINGLABEL, WARNING
-
3090269-06028-00 RIVETRIVET
-
31J10-77711-00-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
32J10-78245-00-00 SEAL 1SEAL 1
-
33J10-77741-00-00 INDICATOR 1INDICATOR 1
-
3490480-48243-00 GROMMETGROMMET
-
35J14-77458-00-00 LABEL, WARNINGLABEL, WARNING
-
3680L-26397-00-00 BANDBAND
-
3797780-50130-00 SCREW, TAPPINGSCREW, TAPPING
-
3890201-05036-00 WASHER, PLATEWASHER, PLATE
-
3990480-07241-00 GROMMETGROMMET
