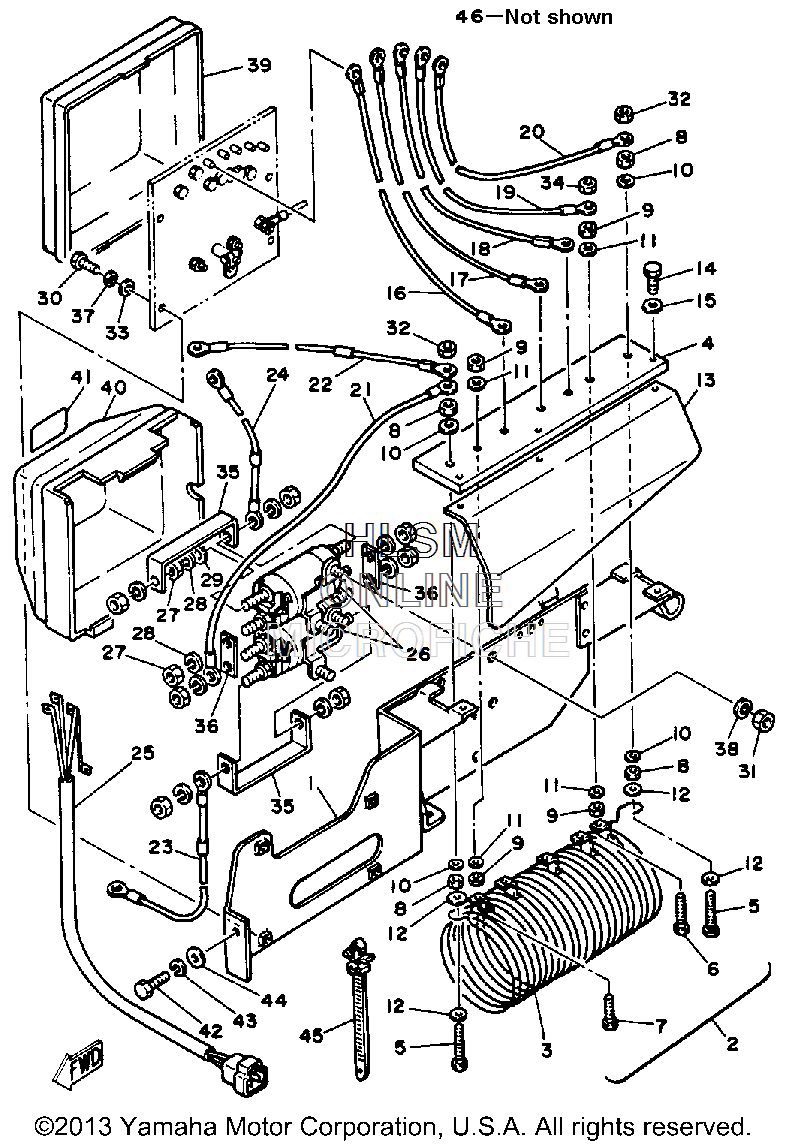

CONTROLLER 2 для Yamaha GOLF CAR ELECTRIC [G1EM3] (J26) - 1983 года выпуска
-
№АртикулНазвание
-
1J22-86141-00-00 PLATE, CONTROLLERPLATE, CONTROLLER
-
2J51-85370-00-00 RESISTORRESISTOR
-
3J51-85370-00-00 ...RESISTOR...RESISTOR
-
4J14-85378-01-00 ...PLATE, RESISTOR...PLATE, RESISTOR
-
590101-08470-00 ...BOLT...BOLT
-
690101-06469-00 ...BOLT...BOLT
-
797011-06025-00 ...BOLT...BOLT
-
895303-08700-00 ...NUT...NUT
-
995380-06700-00 ...NUT...NUT
-
1092901-08600-00 ...WASHER...WASHER
-
1190201-061A5-00 ...WASHER, PLATE...WASHER, PLATE
-
1290201-083F1-00 ...WASHER, PLATE...WASHER, PLATE
-
13J14-85379-00-00 COVER, RESISTORCOVER, RESISTOR
-
1497023-06020-00 BOLT (3XF)BOLT (3XF)
-
1590201-061A5-00 WASHER, PLATEWASHER, PLATE
-
16J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
17J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
18J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
19J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
20J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
21J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
22J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
23J14-86175-00-00 WIRE, LEAD 5WIRE, LEAD 5
-
24J22-82531-00-00 WIRE, LEADWIRE, LEAD
-
25J22-86177-00-00 WIRE, LEAD 7WIRE, LEAD 7
-
26J22-81950-01-00 RELAY ASSEMBLY (SEE REF NO. 46)RELAY ASSEMBLY (SEE REF NO. 46)
-
2795303-08700-00 ...NUT...NUT
-
2892990-08100-00 ...WASHER, SPRING...WASHER, SPRING
-
2992901-08600-00 ...WASHER...WASHER
-
3097313-06016-00 BOLT, HEXAGONBOLT, HEXAGON
-
3195303-08700-00 NUTNUT
-
3295333-08600-00 NUTNUT
-
3390201-061A5-00 WASHER, PLATEWASHER, PLATE
-
3495320-06600-00 NUTNUT
-
35J17-86126-00-00 PLATE, CONNECTING 1PLATE, CONNECTING 1
-
36J17-86127-00-00 PLATE, CONNECTING 2PLATE, CONNECTING 2
-
3792995-06100-00 WASHER, SPRINGWASHER, SPRING
-
3892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
39J56-H6163-00-00 COVER, CONTROLLERCOVER, CONTROLLER
-
40J56-H1942-00-00 COVER (J22-81942-00-00)COVER (J22-81942-00-00)
-
41J22-84306-00-00 LABEL, CAUTIONLABEL, CAUTION
-
4297011-08016-00 BOLTBOLT
-
4392990-08100-00 WASHER, SPRINGWASHER, SPRING
-
4492901-08600-00 WASHERWASHER
-
4590464-12036-00 CLAMPCLAMP
-
46J17-81920-19-00 SOLENOID REBUILD KIT (NOT SHOWN)SOLENOID REBUILD KIT (NOT SHOWN)
