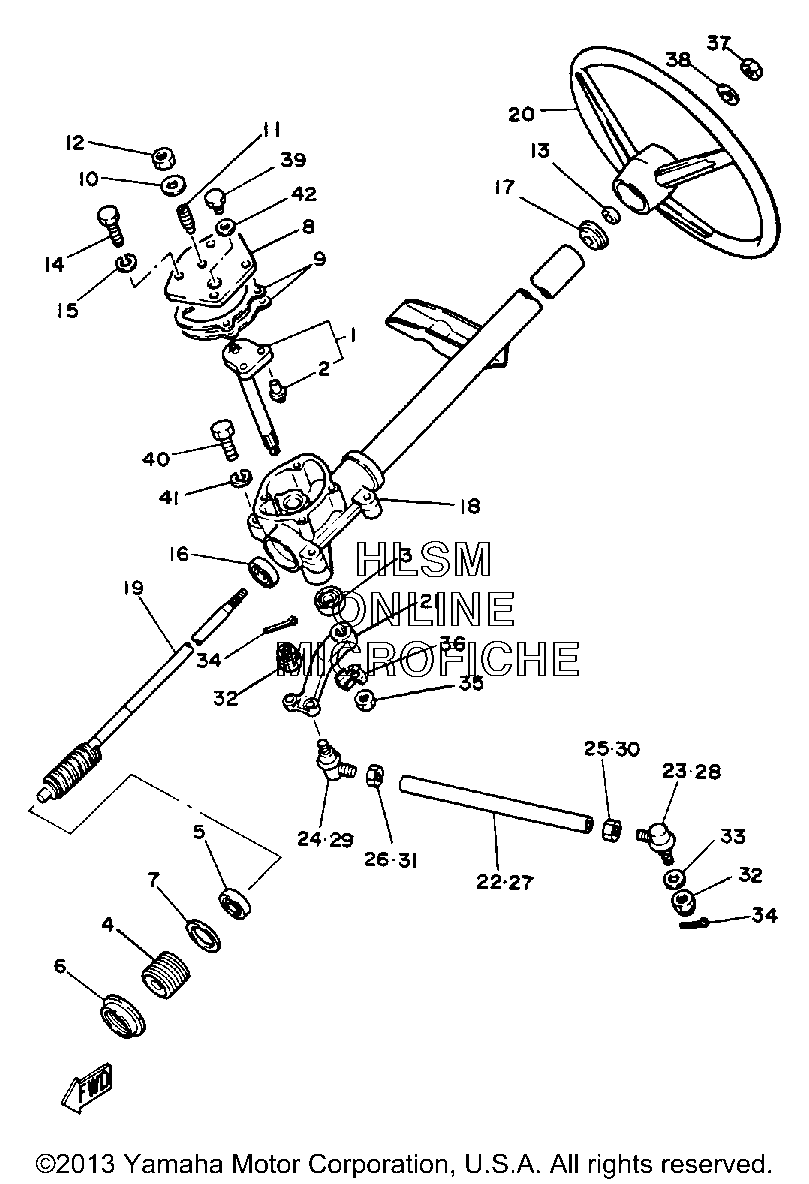

STEERING для Yamaha GOLF CAR ELECTRIC [G1EM3] (J26) - 1983 года выпуска
-
№АртикулНазвание
-
1J10-23816-03-00 ARM, PITMAN (J10-23816-02-00)ARM, PITMAN (J10-23816-02-00)
-
2J10-23836-09-00 ...PIN, PITMAN...PIN, PITMAN
-
393102-22087-00 OIL SEALOIL SEAL
-
4J55-F3876-00-00 BOLTBOLT
-
593332-00010-00 BEARINGBEARING
-
6J10-23877-00-00 NUTNUT
-
7J10-23444-00-00 WASHERWASHER
-
8J10-23818-00-00 COVER, STEERINGCOVER, STEERING
-
9J10-23462-00-00 SEAL, STEERINGSEAL, STEERING
-
1090201-08087-00 GASKETGASKET
-
11J10-23459-00-00 BOLTBOLT
-
1290170-08024-00 NUT, HEXNUT, HEX
-
1393104-15005-00 OIL SEAL, SO-TYPEOIL SEAL, SO-TYPE
-
1497313-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
1592990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1693332-00010-00 BEARINGBEARING
-
17J10-23814-00-00 HOLDER, HANDLE UPRHOLDER, HANDLE UPR
-
1899999-01397-00 COLUMN STEERING COMP.COLUMN STEERING COMP.
-
19J10-23840-00-00 STEERING SHAFT ASSEMBLYSTEERING SHAFT ASSEMBLY
-
20J55-F3838-00-00 WHEEL, STEERING (J10-23838-00-00)WHEEL, STEERING (J10-23838-00-00)
-
21J17-23826-01-00 ARM, IDLERARM, IDLER
-
22J10-23831-00-00 ROD, TIEROD, TIE
-
23J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
24J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2590170-12054-00 NUTNUT
-
2690170-12055-00 NUTNUT
-
27J10-23831-00-00 ROD, TIEROD, TIE
-
28J10-23841-10-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
29J10-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3090170-12054-00 NUTNUT
-
3190170-12055-00 NUTNUT
-
3295301-12900-00 NUT, SLOTTEDNUT, SLOTTED
-
3392990-12600-00 WASHER, PLATEWASHER, PLATE
-
3491401-30030-00 PIN, COTTERPIN, COTTER
-
3595701-16300-00 NUT, FLANGENUT, FLANGE
-
3690215-16161-00 WASHER, LOCKWASHER, LOCK
-
3790185-12119-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3892990-12200-00 WASHER, PLAINWASHER, PLAIN
-
3990340-14029-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
4097313-10050-00 BOLT, HEXAGON (676)BOLT, HEXAGON (676)
-
4192990-10100-00 WASHER, SPRINGWASHER, SPRING
-
4290430-14175-00 GASKETGASKET
