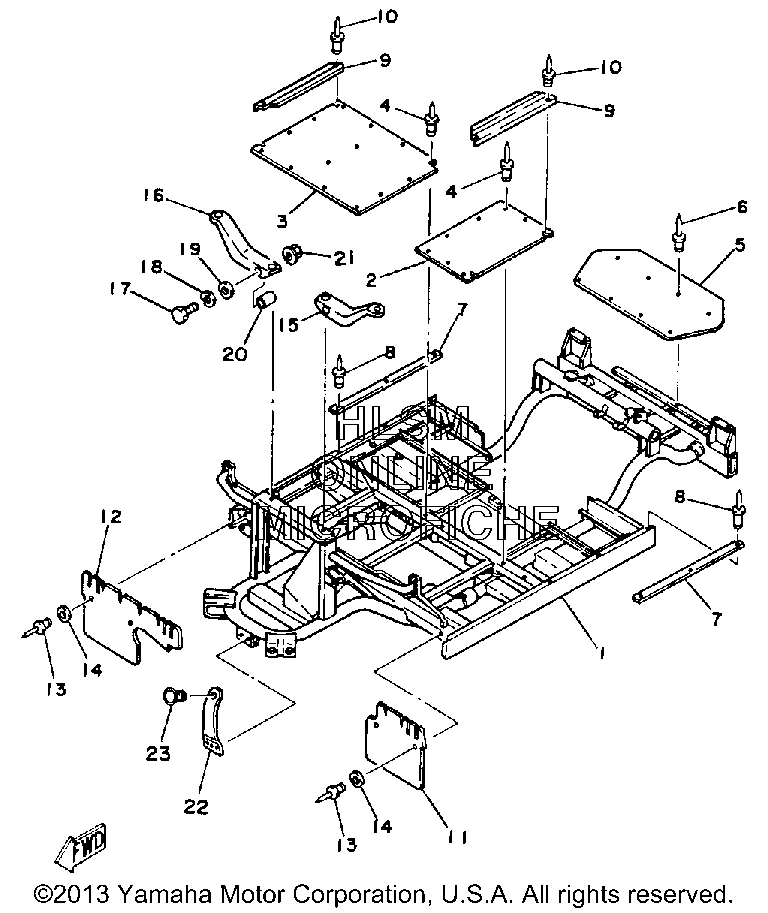

FRAME для Yamaha GOLF CAR ELECTRIC [G1EM3] (J26) - 1983 года выпуска
-
№АртикулНазвание
-
1J22-22501-00-00 FRAMEFRAME
-
2J17-22571-00-00 PANEL 1PANEL 1
-
3J17-22572-00-00 PANEL 2PANEL 2
-
490267-40054-00 RIVET, BLINDRIVET, BLIND
-
5J17-22573-00-00 PANEL 3PANEL 3
-
690267-40076-00 RIVET, BLINDRIVET, BLIND
-
7J17-78249-00-00 TRIM, FLOORTRIM, FLOOR
-
890267-40090-00 RIVET, BLINDRIVET, BLIND
-
9J17-78181-00-00 PLATE 1PLATE 1
-
1090267-48086-00 RIVET, BLIND (4.8X19 BLACK)RIVET, BLIND (4.8X19 BLACK)
-
11J17-78187-00-00 FLAP, FRONT FENDERFLAP, FRONT FENDER
-
12J17-78189-00-00 FLAP, FRONT RIGHTFLAP, FRONT RIGHT
-
1390267-40075-00 RIVET, BLINDRIVET, BLIND
-
1490201-05034-00 WASHER, PLATEWASHER, PLATE
-
15J17-22567-00-00 SUPPORT 1SUPPORT 1
-
16J17-22568-00-00 SUPPORT 2SUPPORT 2
-
1797021-08065-00 BOLTBOLT
-
1892990-08100-00 WASHER, SPRINGWASHER, SPRING
-
1992901-08600-00 WASHERWASHER
-
2090387-090G6-00 COLLARCOLLAR
-
2195701-08500-00 NUT, FLANGE (95702-08500-00)NUT, FLANGE (95702-08500-00)
-
22J17-2258E-00-00 SUPPORT, COWLSUPPORT, COWL
-
23J11-77279-01-00 DAMPER, NOISE 9DAMPER, NOISE 9
