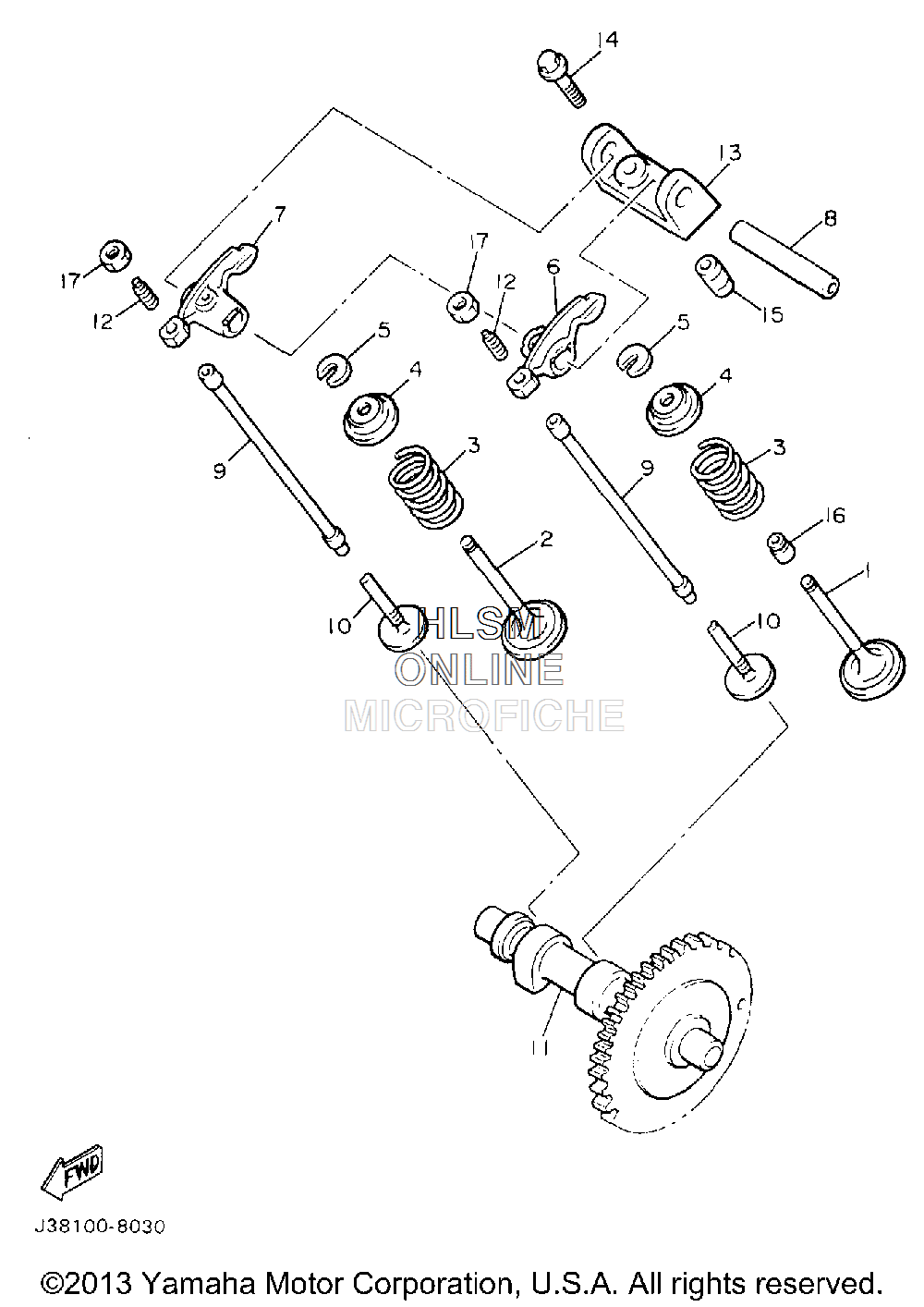

CAMSHAFT W/VALVE для Yamaha GOLF CAR GAS [G14AM] (JN3) - 1995 года выпуска
-
№АртикулНазвание
-
1J38-12111-01-00 VALVE, INTAKEVALVE, INTAKE
-
2J38-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
390501-264A9-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4J38-12117-01-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
5J38-12118-00-00 COTTER, VALVECOTTER, VALVE
-
6J38-12151-01-00 ARM, VALVE ROCKERARM, VALVE ROCKER
-
7J38-12161-01-00 ARM, VALVE ROCKER 2ARM, VALVE ROCKER 2
-
8J38-12156-00-00 SHAFT, ROCKER 2SHAFT, ROCKER 2
-
9J38-12154-00-00 ROD, VALVE PUSHROD, VALVE PUSH
-
10J38-12153-00-00 LIFTER, VALVELIFTER, VALVE
-
11J38-12171-00-00 CAMSHAFT 1CAMSHAFT 1
-
12J38-12159-00-00 SCREW, VALVE ADJUSTINGSCREW, VALVE ADJUSTING
-
13J38-12152-00-00 SUPPORT, ROCKER ARMSUPPORT, ROCKER ARM
-
1495817-06030-00 BOLT, FLANGEBOLT, FLANGE
-
1591810-09014-00 PIN, DOWELPIN, DOWEL
-
165H0-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
1790170-06128-00 NUTNUT
