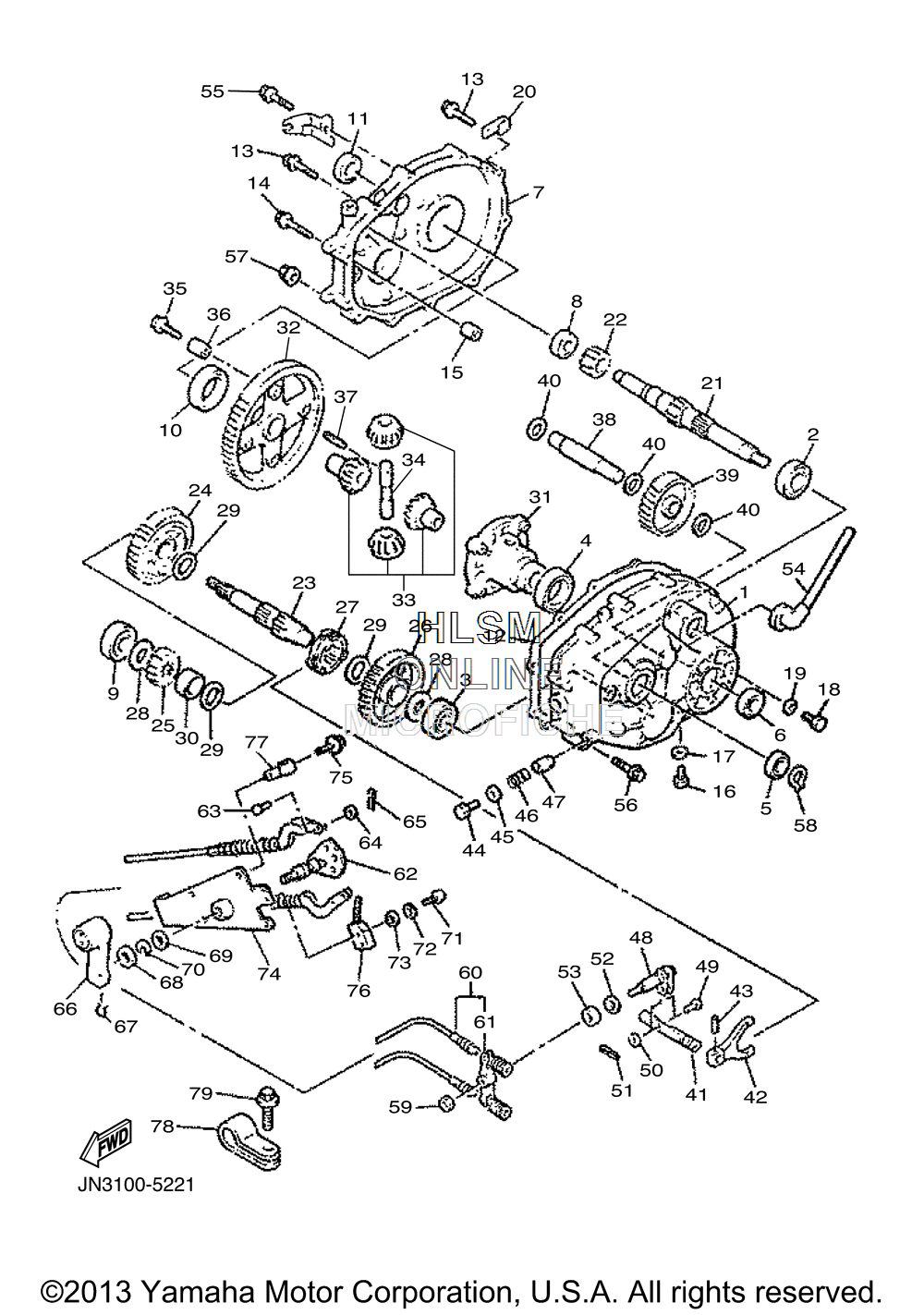

TRANSMISSION для Yamaha GOLF CAR GAS [G14AM] (JN3) - 1995 года выпуска
-
№АртикулНазвание
-
1J38-46311-00-00 CASE, TRANSMISSION 1CASE, TRANSMISSION 1
-
293306-20541-00 BEARING (B6205)BEARING (B6205)
-
393306-20421-00 BEARINGBEARING
-
493306-00804-00 BEARINGBEARING
-
593102-25017-00 OIL SEALOIL SEAL
-
693102-22189-00 OIL SEALOIL SEAL
-
7J38-46312-01-00 CASE, TRANSMISSION 2CASE, TRANSMISSION 2
-
893306-20324-00 BEARINGBEARING
-
993306-20421-00 BEARINGBEARING
-
1093306-00804-00 BEARINGBEARING
-
1193102-22189-00 OIL SEALOIL SEAL
-
12J38-46319-01-00 GASKETGASKET
-
1395817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
1495827-08050-00 BOLT, FLANGEBOLT, FLANGE
-
1599510-12016-00 PIN, DOWELPIN, DOWEL
-
1690340-14036-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
1790430-14043-00 GASKETGASKET
-
1890101-08344-00 BOLTBOLT
-
1990201-08087-00 WASHER, PLATEWASHER, PLATE
-
2090465-06100-00 CLAMPCLAMP
-
21J38-46321-02-00 SHAFT, INPUTSHAFT, INPUT
-
22JN3-46331-00-00 GEAR, INPUT 1GEAR, INPUT 1
-
23J38-46351-00-00 SHAFT, COUNTERSHAFT, COUNTER
-
24JN3-46361-00-00 GEAR, COUNTER 1GEAR, COUNTER 1
-
25J38-46362-00-00 GEAR, COUNTER 2GEAR, COUNTER 2
-
26J38-46363-00-00 GEAR, REVERSEGEAR, REVERSE
-
27JJ3-4636A-00-00 DOG, CLUTCHDOG, CLUTCH
-
2890201-204K8-00 WASHER, PLATEWASHER, PLATE
-
2990201-257J2-00 WASHER, PLATEWASHER, PLATE
-
3090387-252M8-00 COLLARCOLLAR
-
31J38-46411-01-00 CASE, DIFFERENTIALCASE, DIFFERENTIAL
-
32J38-46421-01-00 GEAR, RINGGEAR, RING
-
33J38-W4640-10-00 DIFFERENTIAL GEAR & PINION SETDIFFERENTIAL GEAR & PINION SET
-
34J38-46417-02-00 PIN, DIFFERENTIALPIN, DIFFERENTIAL
-
3590105-08390-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3691812-16001-00 PIN, DOWELPIN, DOWEL
-
3791609-40040-00 PIN, SPRINGPIN, SPRING
-
38J38-46348-00-00 SHAFT 2SHAFT 2
-
39J38-46356-00-00 GEAR, IDLERGEAR, IDLER
-
4090201-17713-00 WASHER, PLATEWASHER, PLATE
-
41J38-4633A-00-00 BAR, SHIFT FORK GUIDEBAR, SHIFT FORK GUIDE
-
42J38-46338-00-00 FORK, SHIFTFORK, SHIFT
-
4391609-40020-00 PIN, SPRINGPIN, SPRING
-
4490101-08344-00 BOLTBOLT
-
4590201-08087-00 WASHER, PLATEWASHER, PLATE
-
4690501-10060-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
4790249-07215-00 PINPIN
-
48J38-46384-00-00 LEVER, SHIFT 3LEVER, SHIFT 3
-
4991701-06022-00 PINPIN
-
5092907-06200-00 WASHERWASHER
-
5191490-20025-00 PIN, COTTERPIN, COTTER
-
5290201-12166-00 WASHER, PLATEWASHER, PLATE
-
5393102-12224-00 OIL SEALOIL SEAL
-
54JN3-47559-00-00 CAP 2CAP 2
-
5595817-08040-00 BOLT, FLANGEBOLT, FLANGE
-
5695817-08075-00 BOLT, FLANGEBOLT, FLANGE
-
5795707-08500-00 NUT, FLANGENUT, FLANGE
-
5893410-25017-00 CIRCLIPCIRCLIP
-
5995607-08100-00 NUT, UNUT, U
-
60JN3-G8330-00-00 CABLE END ASSYCABLE END ASSY
-
61J55-G6383-00-00 ...LEVER, SHIFT 2...LEVER, SHIFT 2
-
62JN3-G6371-00-00 ...WIRE, SHIFT...WIRE, SHIFT
-
6391702-06014-00 PIN, CLEVISPIN, CLEVIS
-
6492907-06600-00 WASHER, PLATEWASHER, PLATE
-
6591490-20025-00 PIN, COTTERPIN, COTTER
-
66JN3-G6381-00-00 KNOB, SHIFTKNOB, SHIFT
-
67JN3-G6376-00-00 SPRING SETSPRING SET
-
6890201-201L9-00 WASHER, PLAINWASHER, PLAIN
-
6990201-19551-00 WASHER, PLAINWASHER, PLAIN
-
7099009-19400-00 CIRCLIPCIRCLIP
-
7198507-04016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
7292907-04100-00 ...WASHER, SPRING...WASHER, SPRING
-
7392907-04600-00 ...WASHER...WASHER
-
74JN3-G6372-00-00 BRACKET, SHIFT WIREBRACKET, SHIFT WIRE
-
7595817-06016-00 BOLT, FLANGEBOLT, FLANGE
-
76JN3-82617-00-00 SWITCHSWITCH
-
7790464-06038-00 CLAMPCLAMP
-
7890461-08133-00 CLAMPCLAMP
-
7995807-06016-00 BOLT, FLANGEBOLT, FLANGE
-
80JF2-46382-00-00 LEVER, SHIFT 1LEVER, SHIFT 1
